| Brand Name: | Small Boss |
| Model Number: | XG07 |
| MOQ: | 5cbm |
| Price: | discuss personally |
| Packaging Details: | as your like |

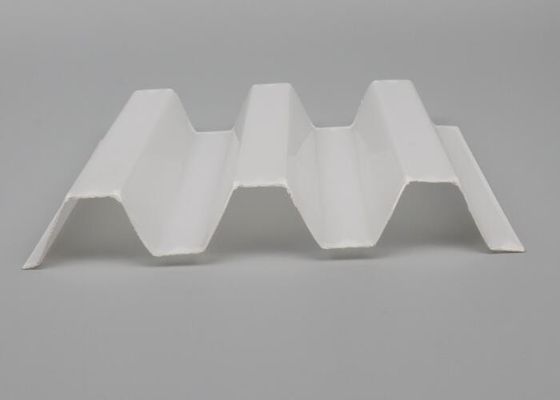

lamella clarifiers saff media white color PVC PP inclined pipe tube water treatment
Inclined tube settler description
Tube settlers, also called lamella clarifiers.
They are used to remove solids in the waste water treatment.
tube settlers are single plastic profiles combined to tubes. This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in water and waste water treatment plants.Different executions support a better process and cost reduction of the plant.
Tube settler use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area.
This provides for a particle settling depth that is significantly less than the settling depth of a conventional clarifier, reducing settling times.
Tube settlers capture the settleable fine floc that escapes the clarification zone beneath the tube settlers and allows the larger floc to travel to the tank bottom in a more settleable form.
The tube settler's channel collects solids into a compact mass which promotes the solids to slide down the tube channel.
Technical data:
| Item | Tube settler media | ||||||||
| Material | PP | PVC | FRP | ||||||
| Diameter(mm) | 35 | 50 | 80 | 35 | 50 | 80 | 35 | 50 | 80 |
| Sheet quantity(pcs/m2) | 40 | 30 | 20 | 40 | 30 | 20 | 40 | 30 | 20 |
| Thickness(mm) | 0.45 | 0.5 | 0.7 | 0.45 | 0.5 | 0.7 | 0.5 | 0.5 | 0.7 |
| Weight(kg/m2) | 21 | 16 | 16 | 31 | 23 | 23 | 41 | 31 | 31 |
| One sheet size(mm) | 1000*1000 | 1000*1000 | 1000*1000 | ||||||
| One block size(mm) | 1000*1000*866 | 1000*1000*866 | 1000*1000*866 | ||||||
| Application | Water supply, sewage water | sewage water | Water supply, sewage water | ||||||
| Color | white | Blue | Can be customized | ||||||
| Assemble method | Electrical heating | Glue | Glue | ||||||
| installation angle | 60° | 60° | 60° | ||||||
| temperature | 5~50℃ | 5~50℃ | 5~50℃ | ||||||
| Proportion g/cm3 | 0.92 | 1.35~1.46 | 1.8 | ||||||
| Product feature | By pcs | By pcs | By pcs | ||||||
|
|
