Place of Origin:
China
Brand Name:
Small Boss
Certification:
SGS, ISO9001
Model Number:
XG02

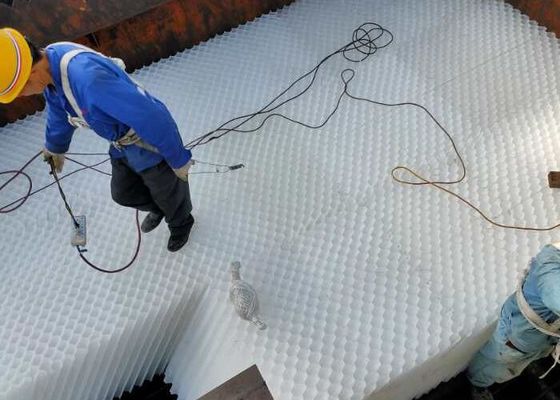

PP PVC honeycomb tube/pipe media for water treatment saff media white color
Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment.
Tube settlers are single plastic profiles combined to tubes. This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in water and waste water treatment plants.
Different executions support a better process and cost reduction of the plant.
Tube Settler Features
1. Ideal in dirty water applications.
2. Far more forgiving of poor water distribution caused by clogged or missing nozzles.
3. Water easily redistributes itself.
4. Ideal in dusty or wooded environments.
5. Easy maintenance.
6. Long service life.
7. High-temperature designs available.
8. Designs available for heavy ice loads.
| Item | Tube settler media | ||||||||
| Material | PP | PVC | FRP | ||||||
| Diameter(mm) | 35 | 50 | 80 | 35 | 50 | 80 | 35 | 50 | 80 |
| Sheet quantity(pcs/m2) | 40 | 30 | 20 | 40 | 30 | 20 | 40 | 30 | 20 |
| Thickness(mm) | 0.45 | 0.5 | 0.7 | 0.45 | 0.5 | 0.7 | 0.5 | 0.5 | 0.7 |
| Weight(kg/m2) | 21 | 16 | 16 | 31 | 23 | 23 | 41 | 31 | 31 |
| One sheet size(mm) | 1000*1000 | 1000*1000 | 1000*1000 | ||||||
| One block size(mm) | 1000*1000*866 | 1000*1000*866 | 1000*1000*866 | ||||||
| Application | Water supply, sewage water | sewage water | Water supply, sewage water | ||||||
| Color | white | Blue | Can be customized | ||||||
| Assemble method | Electrical heating | Glue | Glue | ||||||
| installation angle | 60° | 60° | 60° | ||||||
| temperature | 5~50℃ | 5~50℃ | 5~50℃ | ||||||
| Proportion g/cm3 | 0.92 | 1.35~1.46 | 1.8 | ||||||
| Product feature | By pcs | By pcs | By pcs | ||||||
