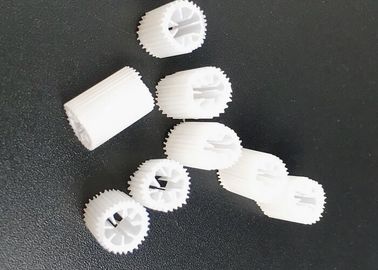

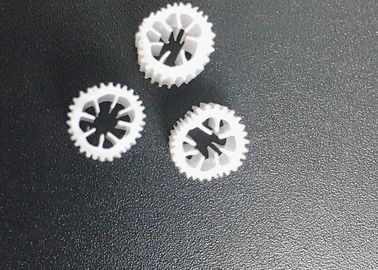

MBBR Bio Media For Sewage Treatment

MBBR Bio Media For Sewage Treatment

  • MBBR Bio Media For Sewage Treatment
  • MBBR Bio Media For Sewage Treatment
  • MBBR Bio Media For Sewage Treatment
MBBR Bio Media For Sewage Treatment
Product Details:
Place of Origin: China
Brand Name: Smallboss
Certification: SGS, FDA, ISO9001
Model Number: PE08
Payment & Shipping Terms:
Minimum Order Quantity: 5 cubic meter
Price: discuss personally
Packaging Details: woven bag
Delivery Time: as your requirement qty
Payment Terms: T/T, L/C
Supply Ability: 50 cubic meter per day
Contact Now
Detailed Product Description
Density: 1.02-1.05 Surface Area: 3500
Porosity: 80 Life -span: 20 Years
Material: HIPS Hole Numbers: 7
High Light:

HIPS Moving Bed Biofilter


Sewage Treatment Moving Media Filter


Sewage Treatment MBBR Bio Media

MBBR Bio Media For Sewage Treatment



Product introduction


MBBR filter media is a novel biologically active carrier, it adopts scientific formula, depending

on the nature of water, blending a variety of beneficial microorganisms grow quickly attached trace elements in polymer materials, through a special process modification, constructed, with more than large surface area, hydrophilic, high biological activity, biofilm fast, good effect, good impact resistance.


Main feature:

Special formula and production technology, accelerating biological film formation ;
Larger effective surface area, obtaining more microorganism;

By bio-film decomposing technology, saving sludge return process;

High-efficiency in denitrification and dephosphorization, improving the water quality;

Lower energy consumption, saving space and shorten technology process.


Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
PE01 Φ12×9 >800 5-15 400-1200 <65 ≥10 >660,000
PE02 Φ11×7 >900 5-15 400-1200 <65 ≥10 >1.038,000
PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥10 >100,000
PE04 Φ16×10 >800 5-15 400-1200 <65 ≥10 >3340,000
PE05 Φ25×12 >500 5-15 400-1200 <65 ≥10 >135,000
PE06 Φ25×12 >500 5-15 400-1200 <65 ≥10 >97000
PE07 Φ35×18 >350 5-15 300-800 <65 ≥10 >33000
PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥10 >2000000
PE09 Φ15×15 >900 5-15 500-1400 <65 ≥10 >230,000
PE10 Φ25×8 >1200 5-15 500-1400 <65 ≥10 >140,000


Small Boss MBBR Filter Media Advantage


Rapid carrier bio film formation mechanism


Super decarburization, ammonia nitrogen removal capacity


Excellent resistance to shock load performance


Flexible way of engineering application


Simple operation and maintenance


Long service life-100% virgin HDPE material.


Deoxidation and phosphorus removal effect is good


Small Boss MBBR Biofilm Carries

We supply a range of biofilter media, This product is sold by the cubic metre. These products are suited to fluidized or moving bed tank systems. These are also called "Biofilm Reactor (MBBR)"systems and are used for treatment of water and wastewater.

Self cleaning due to turbulence:
Due to the turbulent movement of the biofilter media in suspension,the filter media is self-cleaning ,requiring no maintenance.This allows the filter to reach optimum effeciveness without the disturbance of periodic maintenance,avoiding unnecessary loss of bacteria within the filter.This allows stable,low levels of ammonia and nitrite within the water.
The first few of these products are similar to the patented kaldnes media used in fish farming and waste treatment .The design creates an environment for effective nitrification to take place .Twater flow is created by aeration tha circulates the media throughout the vessel .This high suface area of these products traslates into a small physical area needed for the biofiltration unit.
Due to vigorous mixing of the kaldnes-like media through aeration,the media is self-cleaning,Requiring no maintenance.This allows the filter to reach optimum effectiveness
Periodic maintenance is not necessary,preventing the unnecessary loss of bacteria and subsequent ammonia and nitrite spikes in the system.

Media volume needed:
with good turbulence and aeration, a feed rate of between 0.25 kgs and 0.75 kgs of 40% protein food per day requires 50 litres of media.

MBBR Bio Media For Sewage Treatment 0

MBBR Bio Media For Sewage Treatment 1
