Place of Origin:
China
Brand Name:
Smallboss
Certification:
SGS,FDA
Model Number:
XLB-02

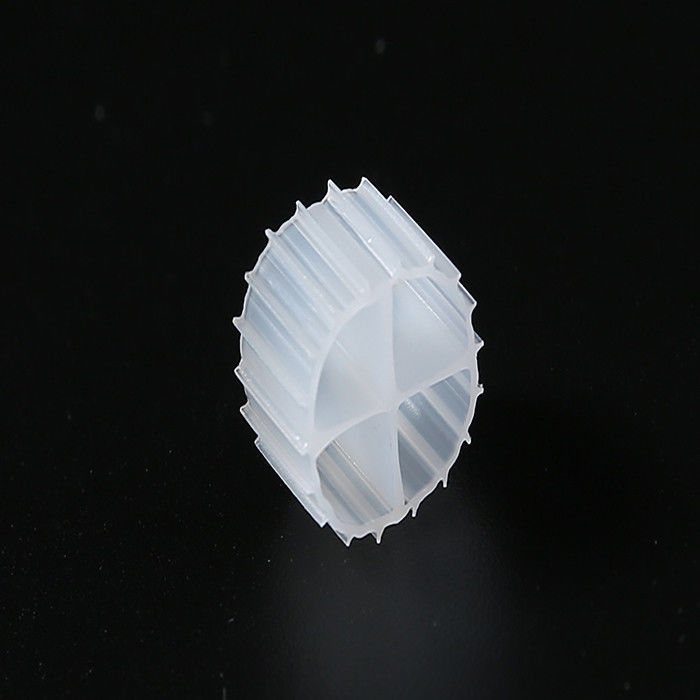

Super Decarburization, Ammonia Nitrogen Removal Capacity MBBR Bio Media For RAS
Using Scope
The sewage plant upgrade project , improve the standard and quantity
New sewage treatment project of MBBR and biological aerated filter process
Biochemical treatment of reclaimed water
River regulation denitrification and phosphorus removal
Aquaculture in addition to ammonia nitrogen, water purification
Biological filter media is used for biological deodorization tower
Application industry:
Municipal, Power, Pharmaceutical, Chemical, Electroplating, Metallurgy, Machinery, Papermaking, Printing and Dyeing, Medicine, Food processing, Aquaculture, with the continuous improvement and the deepening use of our products, Small Boss filter media will be used more and more widely.
Using Advantages
Rapid carrier biofilm formation mechanism
Specific trace element vector into and special surface treatment process, the microorganisms in water on the carrier attached rapidly and rapid propagation of growth, biofilm formation in different water conditions, and biofilm schedule differences, generally, the hang film need 3-15 days.
Super decarburization, ammonia nitrogen removal capacity
Carrier provide a safe and comfortable environment for microbial breeding, Biological variety, because of no sludge age limit, nitrifying bacteria have also been large-scale breeding, microbial population huge is dissolved organic compounds and ammonia decomposition.
1. Excellent resistance to shock load performance
Efficient processing capacity, its ability to remove organic matter 2-5 times higher than that of other traditional methods, high concentrations of biomass and diversity of biological fungus, strong resistance to impact load capacity
2. Flexible way of engineering application
Different stages can be applied to the good nitrogen, anaerobic, anoxic process, only need to handle effect by adding the filter media can easily obtain satisfactory result.
3. Simple operation and maintenance
Without support, put filter media in the pool directly, and it can save the return sludge, avoiding sludge bulking, come-up and loss, convenient to operate and maintain.
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >1.038,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
| PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |
