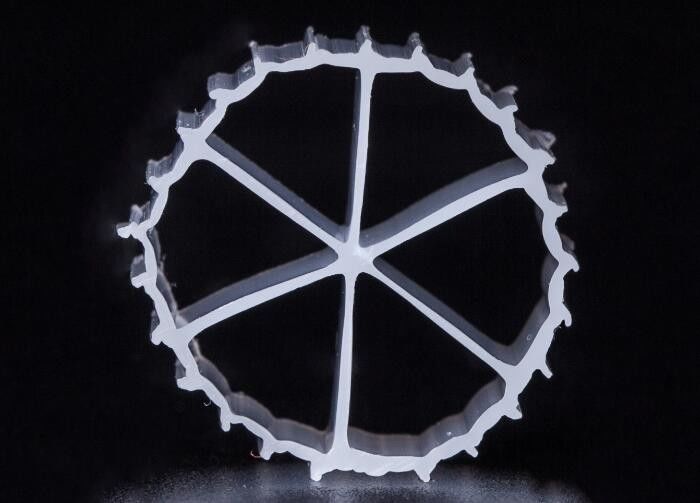

Biochips Fish Ponds MBBR K1 Filter Media 20 Year Long Life Span 25mm X 12mm

Biochips Fish Ponds MBBR K1 Filter Media 20 Year Long Life Span 25mm X 12mm

    • Biochips Fish Ponds MBBR K1 Filter Media 20 Year Long Life Span 25mm X 12mm
    • Biochips Fish Ponds MBBR K1 Filter Media 20 Year Long Life Span 25mm X 12mm
  • Biochips Fish Ponds MBBR K1 Filter Media 20 Year Long Life Span 25mm X 12mm

    Product Details:

    Place of Origin: China
    Brand Name: Small Boss
    Certification: SGS, FDA, ISO9001
    Model Number: PE04

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 cbm
    Price: depend on QTY
    Packaging Details: woven bag
    Delivery Time: negotiation
    Payment Terms: L/C, T/T
    Supply Ability: 80,000m3 per year
    Contact Now
    Detailed Product Description
    Color: White Material: HDPE
    Usage: Water Treatment MOQ: 5 Cbm
    Port: Shanghai Package: Woven Bag



    Small boss MBBR bio balls use for:

    Bio filter media K1 & K3 biomedia MBBR, used in Integrated Fixed-lm Activated Sludge (IFAS) and moving bed biofilm reaction (MBBR) system.
    The wastewater goes through suspending media of MBBR reactor, forming biological membrane on the surface of media gradually. With the action of microbial on the biological membrane, wastewater is purified. MBBR media can move freely in the reactor with the mixing of the water. For the aerobic reactor, the aeration will make the media move; for the anaerobic reactor, mechanic mixing will make the media move. Our MBBR media is new-developed media, has better treatment effect compared with traditional media.
    Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
    (days)
    Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
    PE01 Φ12×9 >800 5-15 400-1200 <65 ≥10 >660,000
    PE02 Φ11×7 >900 5-15 400-1200 <65 ≥10 >1.038,000
    PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥10 >100,000
    PE04 Φ16×10 >800 5-15 400-1200 <65 ≥10 >3340,000
    PE05 Φ25×12 >500 5-15 400-1200 <65 ≥10 >135,000
    PE06 Φ25×12 >500 5-15 400-1200 <65 ≥10 >97000
    PE07 Φ35×18 >350 5-15 300-800 <65 ≥10 >33000
    PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥10 >2000000
    PE09 Φ15×15 >900 5-15 500-1400 <65 ≥10 >230,000
    PE10 Φ25×8 >1200 5-15 500-1400 <65 ≥10 >140,000
    Biochips Fish Ponds MBBR K1 Filter Media 20 Year Long Life Span 25mm X 12mm
