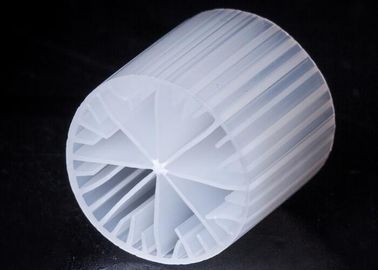

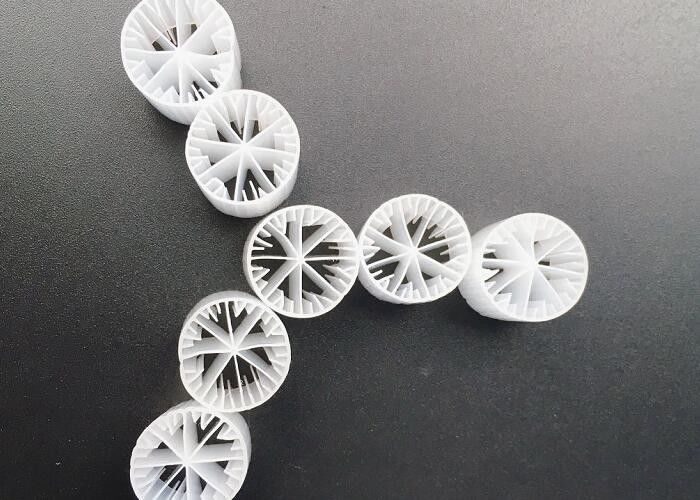

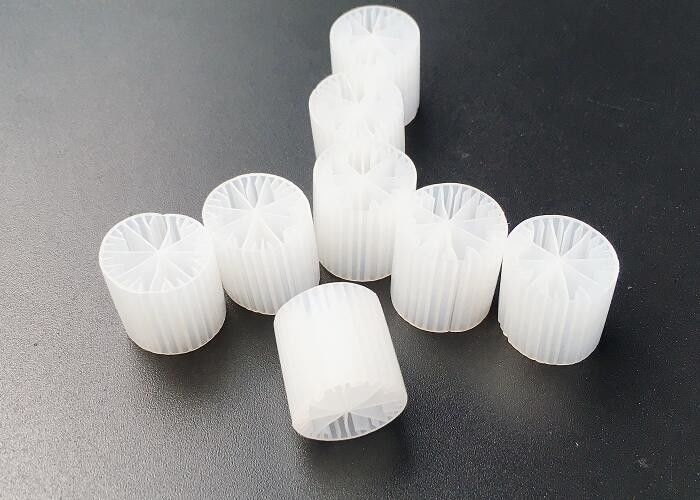

High Surface Area MBBR Filter Media White Color Virgin HDPE Material 15*15MM

High Surface Area MBBR Filter Media White Color Virgin HDPE Material 15*15MM

  • High Surface Area MBBR Filter Media White Color Virgin HDPE Material 15*15MM
  • High Surface Area MBBR Filter Media White Color Virgin HDPE Material 15*15MM
  • High Surface Area MBBR Filter Media White Color Virgin HDPE Material 15*15MM
High Surface Area MBBR Filter Media White Color Virgin HDPE Material 15*15MM
Product Details:
Place of Origin: China
Brand Name: Smallboss
Certification: SGS, FDA, ISO9001
Model Number: PE09
Payment & Shipping Terms:
Minimum Order Quantity: 5 cubic meter
Price: discuss personally
Packaging Details: woven bag
Delivery Time: as your requirement qty
Payment Terms: T/T, L/C
Supply Ability: 230cbm per day
Contact Now
Detailed Product Description
Material: HDPE Density: 0.96-0.98g/cm3
Size: 15*15mm Port: Shanghai
Color: White Weight: 180kg
High Light:

k1 bio media

,

k1 bio filter media

High Surface Area MBBR Filter Media White Color Virgin HDPE Material





Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
(days)
Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
PE01 Φ12×9 >800 5-15 400-1200 <65 ≥10 >660,000
PE02 Φ11×7 >900 5-15 400-1200 <65 ≥10 >1.038,000
PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥10 >100,000
PE04 Φ16×10 >800 5-15 400-1200 <65 ≥10 >3340,000
PE05 Φ25×12 >500 5-15 400-1200 <65 ≥10 >135,000
PE06 Φ25×12 >500 5-15 400-1200 <65 ≥10 >97000
PE07 Φ35×18 >350 5-15 300-800 <65 ≥10 >33000
PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥10 >2000000
PE09 Φ15×15 >900 5-15 500-1400 <65 ≥10 >230,000
PE10 Φ25×8 >1200 5-15 500-1400 <65 ≥10 >140,000



The core of the MBBR technology are the biofilm carriers. They are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culturea when the carriers are suspended in water.

Small Boss has developed several types of carriers with different shape, size and surface area. This gives us the flexibility to use the best suitable carrier depending on wastewater characteristics, pretreatment, discharge standards and available volumes. Currently we have ten different types of carriers


Small Boss MBBR Filter Media Advantage

Rapid carrier bio film formation mechanism

Super decarburization, ammonia nitrogen removal capacity

Excellent resistance to shock load performance

Flexible way of engineering application

Simple operation and maintenance

Long service life-100% virgin HDPE material.

Deoxidation and phosphorus removal effect is good



Small Boss MBBR Filter Media Application

The Sewage plant upgrade project , improve the standard and quantity

New sewage treatment project of MBBR and Biological Aerated Filter process

Biochemical treatment of reclaimed water

River regulation denitrification and phosphorus removal.

Aquaculture in addition to ammonia nitrogen, water purification

Biological filter media is used for biological deodorization tower



Main feature:
Special formula and production technology, accelerating biological film formation ;
Larger effective surface area, obtaining more microorganism;

By bio-film decomposing technology, saving sludge return process;

High-efficiency in denitrification and dephosphorization, improving the water quality;

Lower energy consumption, saving space and shorten technology process.



MBBR can be used in any kind of Pond, it’s no need special pond, and it can used the same pond as before if we change the system to MBBR treatment system, what’s the most important thing is MBBR can be full use of pond volume.

Accelerate the reaction rate significantly, compared with the activated sludge process, reaction efficiency 5 ~ 10 times

Simultaneous nitrification and denitrification process,it can be a good denitrification and phosphorus removal

It is no need bracket, just put in the MBBR filter media directly.

MBBR filter media packing free flow and cutting air bubbles in water, increase dissolved oxygen in water, save energy consumption



High Surface Area MBBR Filter Media White Color Virgin HDPE Material 15*15MM 0
