Place of Origin: | China |
Brand Name: | Small boss |
Certification: | SGS, FDA, ISO9001 |
Model Number: | PE07 |
Minimum Order Quantity: | 5 cubic meter |
---|---|
Price: | discuss personally |
Packaging Details: | woven bag |
Delivery Time: | as your requirement qty |
Payment Terms: | T/T, L/C |
Supply Ability: | 80,000m³ per year |
Nitrfication Efficiency: | 300-800 | Port: | Shanghai |
---|---|---|---|
Hole Numbers: | 19 | Density: | 0.94-0.97g/cm3 |
Color: | White | Size: | 35*18mm |
High Light: | k1 bio media,k1 bio filter media |

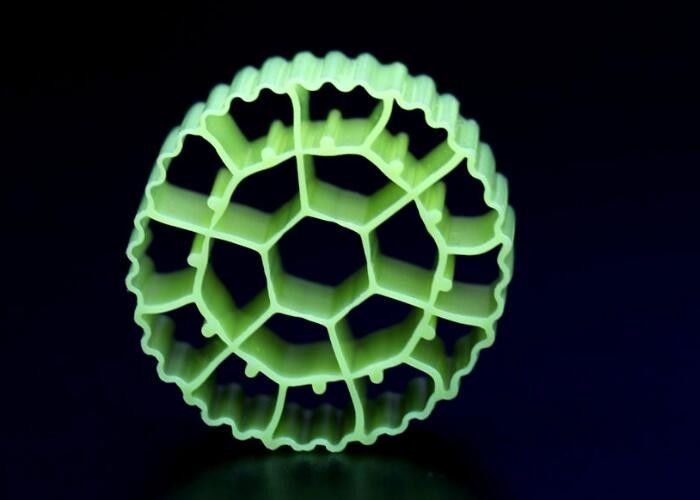

Self Cleaning Aquaculture K1 Filter Media MBBR Filter Media 19 Hole Numbers
Small Boss MBBR Filter Media Advantage
Rapid carrier bio film formation mechanism
Super decarburization, ammonia nitrogen removal capacity
Excellent resistance to shock load performance
Flexible way of engineering application
Simple operation and maintenance
Long service life-100% virgin HDPE material.
Deoxidation and phosphorus removal effect is good
Small Boss MBBR Filter Media Application
The Sewage plant upgrade project , improve the standard and quantity
New sewage treatment project of MBBR and Biological Aerated Filter process
Biochemical treatment of reclaimed water
River regulation denitrification and phosphorus removal.
Aquaculture in addition to ammonia nitrogen, water purification
Biological filter media is used for biological deodorization tower
MBBR Technology
Technical Details
The aerated MBBR uses, as the activated sludge process, the whole volume of an open tank. It is defined as a biofilm system, as the biomass is growing on carriers that move freely within the reactor volume and are kept within the reactors by a sieve at the reactor outlet. The system can be used either for aerobic or anoxic processes. In aerobic processes the biofilm carriers are kept in suspension by the agitation created by air from aeration diffusers, while in anoxic processes a mixer keep the carriers in movement.

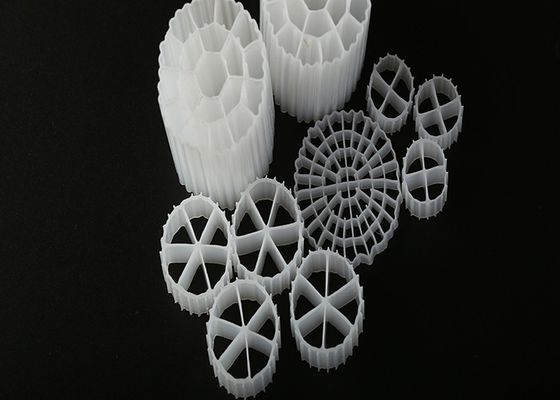

Item | PE01 | PE02 | PE03 | PE04 | PE05 | PE06 | PE07 | PE08 | PE09 | PE64 |
pictures | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
size | 12*9mm | 11*7mm | 10*7mm | 16*10mm | 25*10mm | 25*10mm | 35*18mm | 5*10mm | 15*15mm | 25*4mm |
Density (g/cm3) |
0.94-0.97 | 0.94-0.97 | 0.94-0.97 | 0.94-0.97 | 0.94-0.97 | 0.94-0.97 | 0.94-0.97 | 1.02-1.05 | 0.94-0.97 | 0.94-0.97 |
Surface Area (m2/m3) |
>800 | >900 | >1000 | >800 | >500 | >500 | >350 | >3500 | >900 | >1200 |
Small Boss MBBR Biofilm Carries
We supply a range of biofilter media, This product is sold by the cubic metre. These products are suited to fluidized or moving bed tank systems. These are also called "Biofilm Reactor (MBBR)"systems and are used for treatment of water and wastewater.
Self cleaning due to turbulence:
Due to the turbulent movement of the biofilter media in suspension,the filter media is self-cleaning ,requiring no maintenance.This allows the filter to reach optimum effeciveness without the disturbance of periodic maintenance,avoiding unnecessary loss of bacteria within the filter.This allows stable,low levels of ammonia and nitrite within the water.
The first few of these products are similar to the patented kaldnes media used in fish farming and waste treatment .The design creates an environment for effective nitrification to take place .Twater flow is created by aeration tha circulates the media throughout the vessel .This high suface area of these products traslates into a small physical area needed for the biofiltration unit.
Due to vigorous mixing of the kaldnes-like media through aeration,the media is self-cleaning,Requiring no maintenance.This allows the filter to reach optimum effectiveness
Periodic maintenance is not necessary,preventing the unnecessary loss of bacteria and subsequent ammonia and nitrite spikes in the system.
