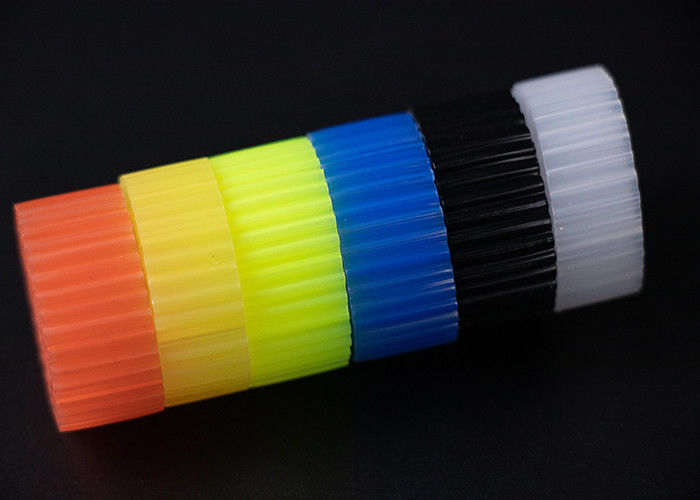

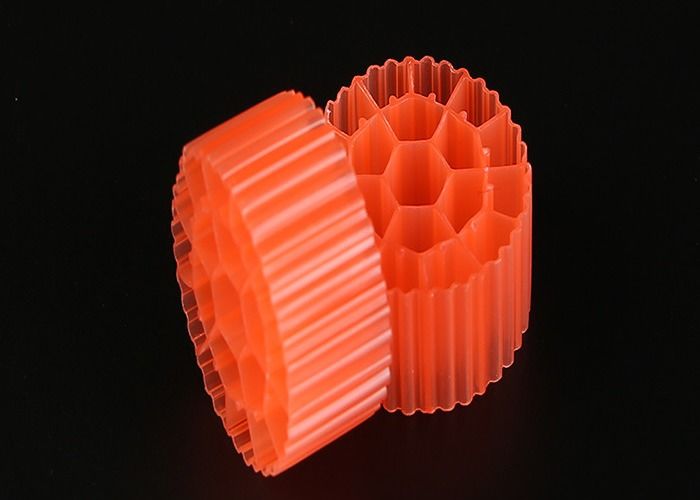

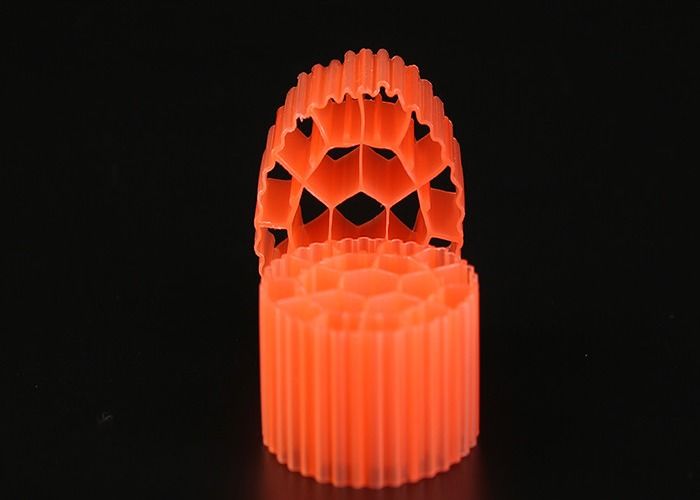

Shockproof PE07 Floating Filter Media K1 Micro Media 35mm X 18mm

Shockproof PE07 Floating Filter Media K1 Micro Media 35mm X 18mm

  • Shockproof PE07 Floating Filter Media K1 Micro Media 35mm X 18mm
  • Shockproof PE07 Floating Filter Media K1 Micro Media 35mm X 18mm
  • Shockproof PE07 Floating Filter Media K1 Micro Media 35mm X 18mm
  • Shockproof PE07 Floating Filter Media K1 Micro Media 35mm X 18mm
Shockproof PE07 Floating Filter Media K1 Micro Media 35mm X 18mm
Product Details:
Place of Origin: China
Brand Name: Small boss
Certification: SGS, FDA, ISO9001
Model Number: PE07
Payment & Shipping Terms:
Minimum Order Quantity: 5 cubic meter
Price: discuss personally
Packaging Details: woven bag
Delivery Time: as your requirement qty
Payment Terms: T/T, L/C
Supply Ability: 80,000m³ per year
Contact Now
Detailed Product Description
Material: PE Density: 0.96-0.98
Efficient Surface: >350 Life Span: >15
Dosing Raito: 15-50 Port: Shanghai Or Ningbo
High Light:

water filter media

,

filter bio media

Shockproof PE07 Floating Filter Media K1 Micro Media 35mm X 18mm





Small Boss MBBR Biofilm Carries
We supply a range of biofilter media, This product is sold by the cubic metre. These products are suited to fluidized or moving bed tank systems. These are also called "Biofilm Reactor (MBBR)"systems and are used for treatment of water and wastewater.

Self cleaning due to turbulence:
Due to the turbulent movement of the biofilter media in suspension,the filter media is self-cleaning ,requiring no maintenance.This allows the filter to reach optimum effeciveness without the disturbance of periodic maintenance,avoiding unnecessary loss of bacteria within the filter.This allows stable,low levels of ammonia and nitrite within the water.
The first few of these products are similar to the patented kaldnes media used in fish farming and waste treatment .The design creates an environment for effective nitrification to take place .Twater flow is created by aeration tha circulates the media throughout the vessel .This high suface area of these products traslates into a small physical area needed for the biofiltration unit.
Due to vigorous mixing of the kaldnes-like media through aeration,the media is self-cleaning,Requiring no maintenance.This allows the filter to reach optimum effectiveness
Periodic maintenance is not necessary,preventing the unnecessary loss of bacteria and subsequent ammonia and nitrite spikes in the system.

Media volume needed:
with good turbulence and aeration, a feed rate of between 0.25 kgs and 0.75 kgs of 40% protein food per day requires 50 litres of media.





Product introduction



MBBR filter media is a novel biologically active carrier, it adopts scientific formula, depending

on the nature of water, blending a variety of beneficial microorganisms grow quickly attached trace elements in polymer materials, through a special process modification, constructed, with more than large surface area, hydrophilic, high biological activity, biofilm fast, good effect, good impact resistance.



Main feature:
Special formula and production technology, accelerating biological film formation ;
Larger effective surface area, obtaining more microorganism;

By bio-film decomposing technology, saving sludge return process;

High-efficiency in denitrification and dephosphorization, improving the water quality;

Lower energy consumption, saving space and shorten technology process.




2. MBBR can be used in any kind of Pond, it’s no need special pond, and it can used the same pond as before if we change the system to MBBR treatment system, what’s the most important thing is MBBR can be full use of pond volume.

Accelerate the reaction rate significantly, compared with the activated sludge process, reaction efficiency 5 ~ 10 times

Simultaneous nitrification and denitrification process,it can be a good denitrification and phosphorus removal

It is no need bracket, just put in the MBBR filter media directly.

MBBR filter media packing free flow and cutting air bubbles in water, increase dissolved oxygen in water, save energy consumption





Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
(days)
Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
PE05 Φ25×10 >600 5-15 400-1200 <65 ≥15 >118,000


Shockproof PE07 Floating Filter Media K1 Micro Media 35mm X 18mm 0

Shockproof PE07 Floating Filter Media K1 Micro Media 35mm X 18mm 1
