| Brand Name: | Smallboss |
| Model Number: | PE09 |
| MOQ: | 5 cubic meter |
| Price: | discuss personally |
| Packaging Details: | woven bag |
| Payment Terms: | T/T, L/C |

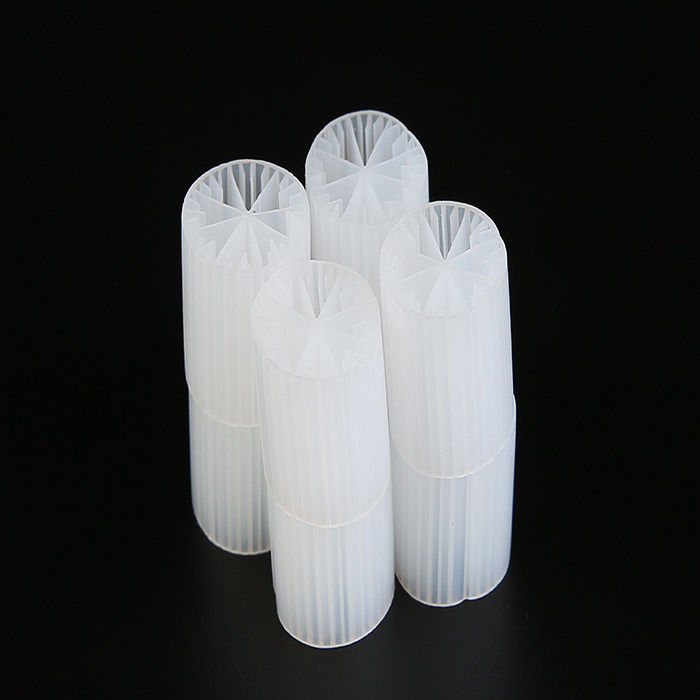

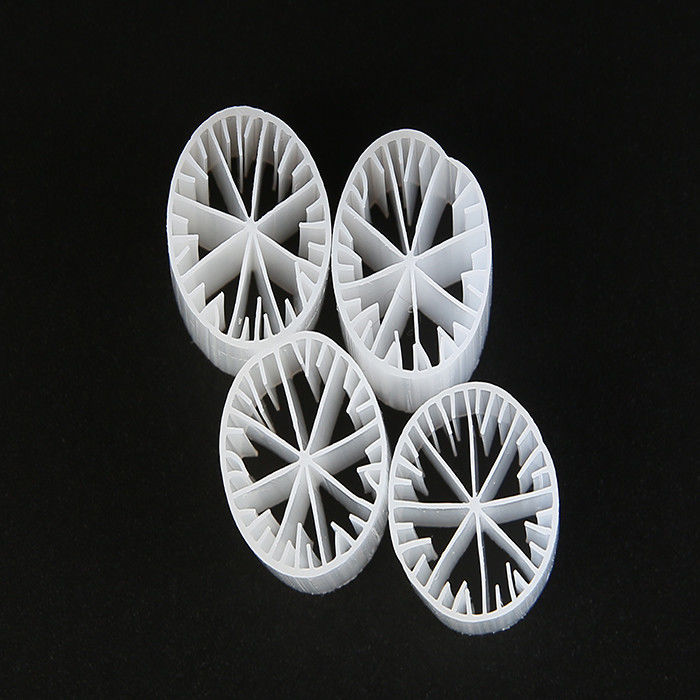

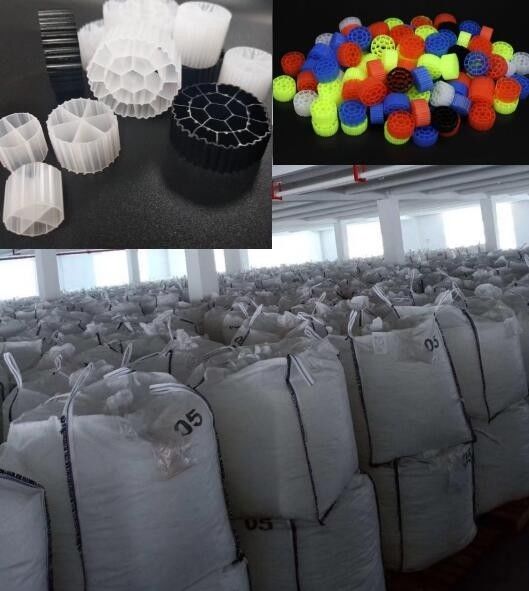

Bio Floating Filter Media
product introduction
MBBR filter media is a novel biologically active carrier, it adopts scientific formula, depending
on the nature of water, blending a variety of beneficial microorganisms grow quickly attached trace elements in polymer materials, through a special process modification, constructed, with more than large surface area, hydrophilic, high biological activity, biofilm fast, good effect, good impact resistance.
Main feature:
Special formula and production technology, accelerating biological film formation ;
Larger effective surface area, obtaining more microorganism;
By bio-film decomposing technology, saving sludge return process;
High-efficiency in denitrification and dephosphorization, improving the water quality;
Lower energy consumption, saving space and shorten technology process.
MBBR can be used in any kind of Pond, it’s no need special pond, and it can used the same pond as before if we change the system to MBBR treatment system, what’s the most important thing is MBBR can be full use of pond volume.
Accelerate the reaction rate significantly, compared with the activated sludge process, reaction efficiency 5 ~ 10 times
Simultaneous nitrification and denitrification process,it can be a good denitrification and phosphorus removal
It is no need bracket, just put in the MBBR filter media directly.
MBBR filter media packing free flow and cutting air bubbles in water, increase dissolved oxygen in water, save energy consumption
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >1.038,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
| PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |
FAQ
Q: What do you need to make a quotation?
A: To make a good quotation should be sure by the following things:
1. Existing samples or products drawings or 3D model data files.
2. Your request for products you are going to make, including quantity, material, finish.
Q: How much time do you need to quote?
A: Usually a quotation for a product is sent in 24 hours after we receive enquiry with all the necessary details.
Q: How long does it take to have products?
A: It varies a little depending on product size and complexity of its shape and the quantity.
We will give our exact delivery time when you get the quotation.
|
|
