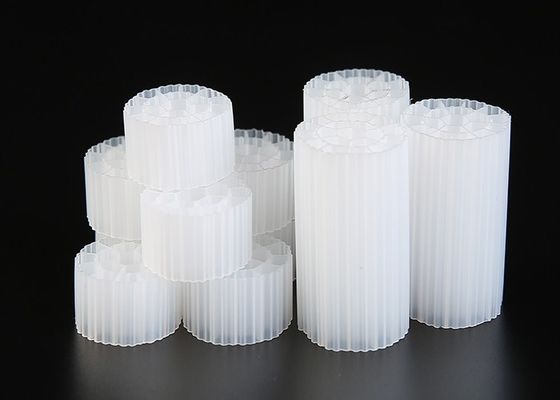

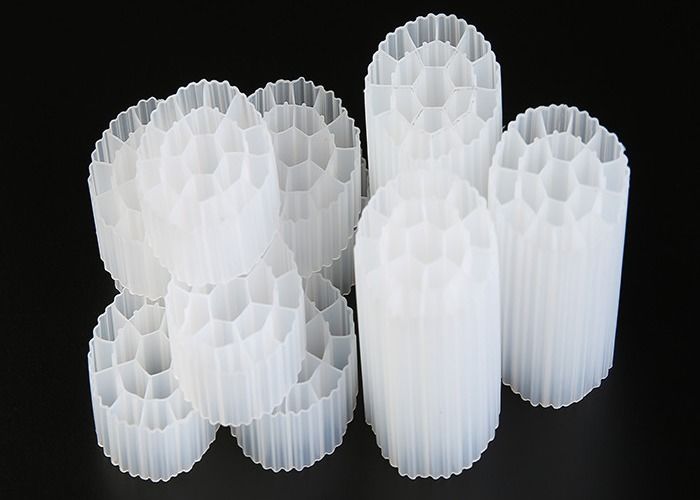

35mm X 18mm Size Virgin HDPE Material MBBR Bio Media PE07 For Aquariums

35mm X 18mm Size Virgin HDPE Material MBBR Bio Media PE07 For Aquariums

  • 35mm X 18mm Size Virgin HDPE Material MBBR Bio Media PE07 For Aquariums
  • 35mm X 18mm Size Virgin HDPE Material MBBR Bio Media PE07 For Aquariums
35mm X 18mm Size Virgin HDPE Material MBBR Bio Media PE07 For Aquariums
Product Details:
Place of Origin: China
Brand Name: Small boss
Certification: SGS, FDA, ISO9001
Model Number: PE07
Payment & Shipping Terms:
Minimum Order Quantity: 5 cubic meter
Price: discuss personally
Packaging Details: woven bag
Delivery Time: as your requirement qty
Payment Terms: T/T, L/C
Supply Ability: 80,000m³ per year
Contact Now
Detailed Product Description
Applicable Temperature: 5-60 Density: 0.94-0.97g/cm3
Hole Numbers: 19 Color: White
Material: PE Nitrfication Efficiency: 300-800
High Light:

biofilm reactor

,

mbbr moving bed biofilm reactor

35mm X 18mm Size Virgin HDPE Material MBBR Bio Media PE07 For Aquariums



Small Boss MBBR Filter Media Advantage

  • Rapid carrier bio film formation mechanism
  • Super decarburization, ammonia nitrogen removal capacity
  • Excellent resistance to shock load performance
  • Flexible way of engineering application
  • Simple operation and maintenance
  • Long service life-100% virgin HDPE material.
  • Deoxidation and phosphorus removal effect is good

Small Boss MBBR Filter Media Package:

0.1m3/woven bag; 1m3/woven bag;1m3/carton .

20ft container could load 30m3. 40HC container load 70m3



MBBR Technology


Technical Details
The aerated MBBR uses, as the activated sludge process, the whole volume of an open tank. It is defined as a biofilm system, as the biomass is growing on carriers that move freely within the reactor volume and are kept within the reactors by a sieve at the reactor outlet. The system can be used either for aerobic or anoxic processes. In aerobic processes the biofilm carriers are kept in suspension by the agitation created by air from aeration diffusers, while in anoxic processes a mixer keep the carriers in movement. A schematic of the principle in an implementation of the WOCK OLIVER MBBR technology is shown below





Small Boss MBBR Filter Media Advantage



Rapid carrier bio film formation mechanism



Super decarburization, ammonia nitrogen removal capacity



Excellent resistance to shock load performance



Flexible way of engineering application



Simple operation and maintenance



Long service life-100% virgin HDPE material.



Small Boss MBBR Filter Media ITEM

Item PE01 PE02 PE03 PE04 PE05 PE06 PE07 PE08 PE09 PE64
pictures Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 0 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 1 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 2 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 3 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 4 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 5 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 6 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 7 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 8 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 9
size 12*9mm 11*7mm 10*7mm 16*10mm 25*10mm 25*10mm 35*18mm 5*10mm 15*15mm 25*4mm

Density

(g/cm3)

0.94-0.97 0.94-0.97 0.94-0.97 0.94-0.97 0.94-0.97 0.94-0.97 0.94-0.97 1.02-1.05 0.94-0.97 0.94-0.97

Surface Area

(m2/m3)

>800 >900 >1000 >800 >500 >500 >350 >3500 >900 >1200



MBBR Technology and Biofilm Carries
MBBR technology is based on the biofilm principle with an active biofilm growing on small specially designed plastic carriers that are kept suspended in the reactor. The technology utilizes the advantages of both activated sludge and other biofilm systems (e.g. biofilters, biorotors etc.) without being restrained by their disadvantages.
The carriers are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the carriers are suspended in water.
Solutions based on MBBR technology is mainly used in the following applications:

+ For new plants, especially those requiring a small footprint and easy operation, for BOD/COD and nitrogen removal

+ As a high loading system in front of existing biological treatment - roughing reactor

+ To increase the amount of nitrifying bacteria in existing activated sludge system using the WOCK OLIVER carrier in a hybrid plant to meet ammonia limits

+ To implement post-treatment to existing plants for process improvements




35mm X 18mm Size Virgin HDPE Material MBBR Bio Media PE07 For Aquariums 10
