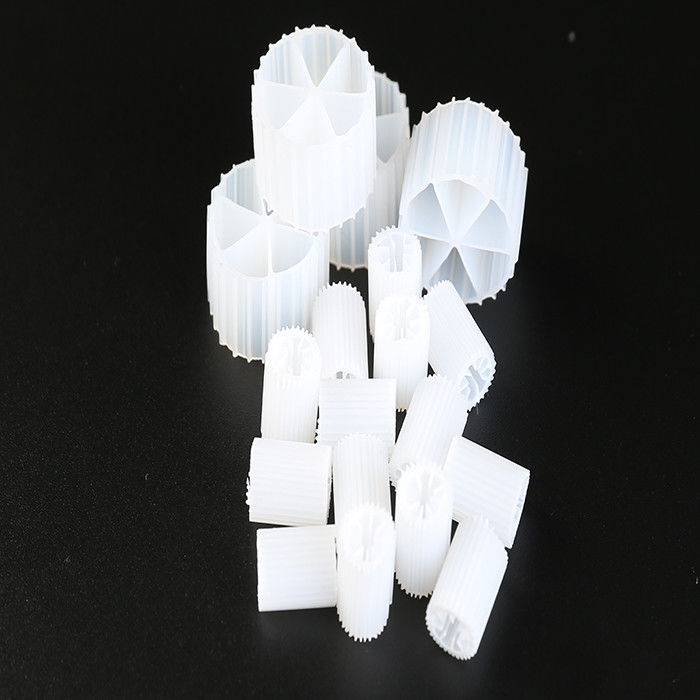

Custom Moving Bed Biofilter K1 Filter Media Wastewater Filter Media

Custom Moving Bed Biofilter K1 Filter Media Wastewater Filter Media

  • Custom Moving Bed Biofilter K1 Filter Media Wastewater Filter Media
  • Custom Moving Bed Biofilter K1 Filter Media Wastewater Filter Media
  • Custom Moving Bed Biofilter K1 Filter Media Wastewater Filter Media
Custom Moving Bed Biofilter K1 Filter Media Wastewater Filter Media
Product Details:
Place of Origin: China
Brand Name: Smallboss
Certification: SGS, FDA, ISO9001
Model Number: PE06
Payment & Shipping Terms:
Minimum Order Quantity: 5 cubic meter
Price: discuss personally
Packaging Details: woven bag
Delivery Time: as your requirement qty
Payment Terms: T/T, L/C
Supply Ability: 80,000m³ per year
Contact Now
Detailed Product Description
Applicable Temperature: 5-60 Material: PE
Density: 1.02-1.05g/cm3 Hole Numbers: 19
Life Span: >15 Nitrfication Efficiency: 400-1200
Highlight:

k1 bio media

,

k1 micro filter

Custom Moving Bed Biofilter K1 Filter Media Wastewater Filter Media





Small Boss MBBR Filter Media Package:

0.1m3/woven bag; 1m3/woven bag;1m3/carton .

20ft container could load 30m3. 40HC container load 70m3



product introduction



MBBR filter media is a novel biologically active carrier, it adopts scientific formula, depending

on the nature of water, blending a variety of beneficial microorganisms grow quickly attached trace elements in polymer materials, through a special process modification, constructed, with more than large surface area, hydrophilic, high biological activity, biofilm fast, good effect, good impact resistance.



Main feature:
Special formula and production technology, accelerating biological film formation ;
Larger effective surface area, obtaining more microorganism;

By bio-film decomposing technology, saving sludge return process;

High-efficiency in denitrification and dephosphorization, improving the water quality;

Lower energy consumption, saving space and shorten technology process.




2. MBBR can be used in any kind of Pond, it’s no need special pond, and it can used the same pond as before if we change the system to MBBR treatment system, what’s the most important thing is MBBR can be full use of pond volume.

Accelerate the reaction rate significantly, compared with the activated sludge process, reaction efficiency 5 ~ 10 times

Simultaneous nitrification and denitrification process,it can be a good denitrification and phosphorus removal

It is no need bracket, just put in the MBBR filter media directly.

MBBR filter media packing free flow and cutting air bubbles in water, increase dissolved oxygen in water, save energy consumption





Small Boss MBBR Core technology:

Special design of surface, stronger bio-film growth capacity;

Large specific surface area, high voidage, the more periphyton biomass;
Unique design of structure and shape according to hydromechanics, strong three-dimensional flow dynamics in the water;
Adding hydrophilic groups and other trace elements, the biofilm formation time only 3-15 days;
Excellent impact strength, strong gas shear capacity;
Without any holder, easy to cure, save energy and space.



Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
(days)
Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
PE01 Φ12×9 >800 5-15 400-1200 <65 ≥10 >660,000
PE02 Φ11×7 >900 5-15 400-1200 <65 ≥10 >1.038,000
PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥10 >100,000
PE04 Φ16×10 >800 5-15 400-1200 <65 ≥10 >3340,000
PE05 Φ25×12 >500 5-15 400-1200 <65 ≥10 >135,000
PE06 Φ25×12 >500 5-15 400-1200 <65 ≥10 >97000
PE07 Φ35×18 >350 5-15 300-800 <65 ≥10 >33000
PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥10 >2000000
PE09 Φ15×15 >900 5-15 500-1400 <65 ≥10 >230,000
PE10 Φ25×8 >1200 5-15 500-1400 <65 ≥10 >140,000



Custom Moving Bed Biofilter K1 Filter Media Wastewater Filter Media 0
