Place of Origin: | China |
Brand Name: | Smallboss |
Certification: | SGS, FDA, ISO9001 |
Model Number: | PE05 |
Minimum Order Quantity: | 5 cubic meter |
---|---|
Price: | discuss personally |
Packaging Details: | woven bag |
Delivery Time: | as your requirement qty |
Payment Terms: | T/T, L/C |
Supply Ability: | 80,000m³ per year |
Memberrane-forming Time: | 3-15days | BOD5 Oxidation Efficiency: | 2000-10000 |
---|---|---|---|
COD5 Oxidation Efficiency: | 2000-15000 | Surface Area: | 500m2/m3 |
Material: | HDPE | Porosity: | >90% |
Highlight: | water filter media,filter bio media |

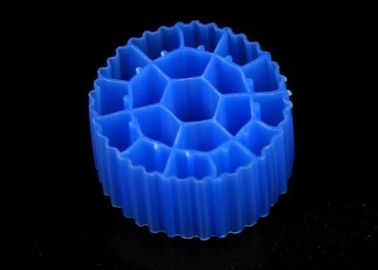

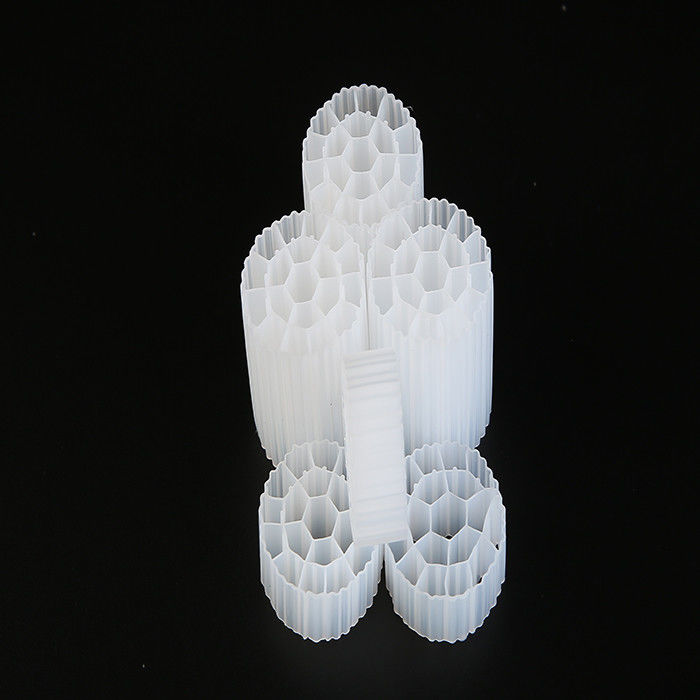

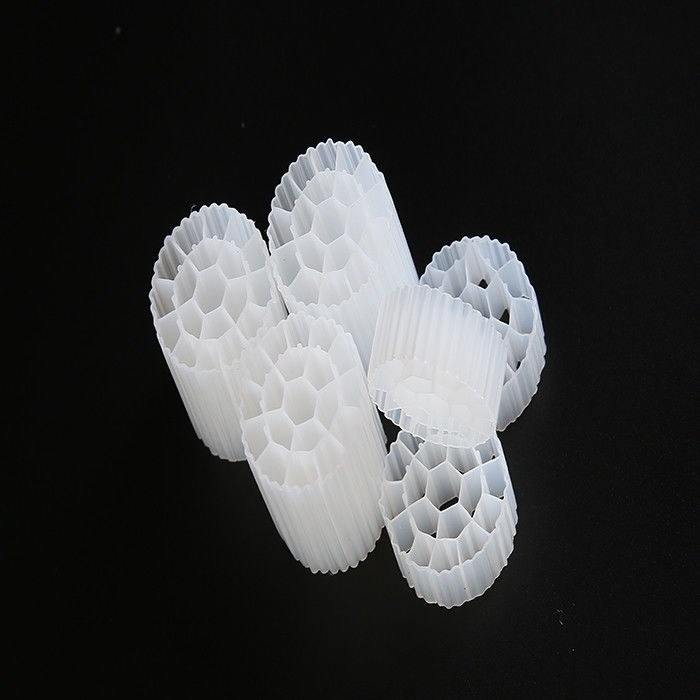

Virgin HDPE Floating Filter Media Plastic Bio Media 25mm X 10mm
MBBR Technology and Biofilm Carries
MBBR technology is based on the biofilm principle with an active biofilm growing on small specially designed plastic carriers that are kept suspended in the reactor. The technology utilizes the advantages of both activated sludge and other biofilm systems (e.g. biofilters, biorotors etc.) without being restrained by their disadvantages.
The carriers are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the carriers are suspended in water.
Solutions based on MBBR technology is mainly used in the following applications:
+ For new plants, especially those requiring a small footprint and easy operation, for BOD/COD and nitrogen removal
+ As a high loading system in front of existing biological treatment - roughing reactor
+ To increase the amount of nitrifying bacteria in existing activated sludge system using the WOCK OLIVER carrier in a hybrid plant to meet ammonia limits
+ To implement post-treatment to existing plants for process improvements
MBBR Technology
The aerated MBBR uses, as the activated sludge process, the whole volume of an open tank. It is defined as a biofilm system, as the biomass is growing on carriers that move freely within the reactor volume and are kept within the reactors by a sieve at the reactor outlet. The system can be used either for aerobic or anoxic processes. In aerobic processes the biofilm carriers are kept in suspension by the agitation created by air from aeration diffusers, while in anoxic processes a mixer keep the carriers in movement. A schematic of the principle in an implementation of the WOCK OLIVER MBBR technology is shown below
Small Boss MBBR Filter Media Advantage
Small Boss MBBR Filter Media Application
Item | PE01 | PE02 | PE03 | PE05 | PE06 | PE07 | PE08 | PE09 | PE10 |
Size diameter*length(mm) |
|
|
|
|
|
|
|
|
|
Density(g/cm3) | 0.96-0.98 | ||||||||
0Surface ares (m2/m3) | >800 | >900 | >1000 | >500 | >500 | >350 | >3500 | >900 | >1200 |
