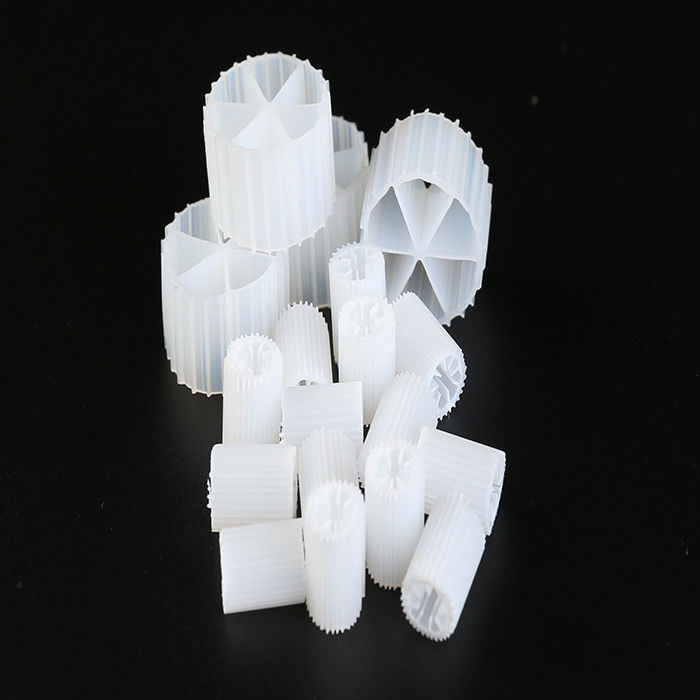

Fish Ponds MBBR K1 Filter Media 20 Year Long Life Span 25mm X 12mm

Fish Ponds MBBR K1 Filter Media 20 Year Long Life Span 25mm X 12mm

    • Fish Ponds MBBR K1 Filter Media 20 Year Long Life Span 25mm X 12mm
    • Fish Ponds MBBR K1 Filter Media 20 Year Long Life Span 25mm X 12mm
  • Fish Ponds MBBR K1 Filter Media 20 Year Long Life Span 25mm X 12mm

    Product Details:

    Place of Origin: China
    Brand Name: Smallboss
    Certification: SGS, FDA, ISO9001
    Model Number: PE06

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 cubic meter
    Price: discuss personally
    Packaging Details: woven bag
    Delivery Time: as your requirement qty
    Payment Terms: T/T, L/C
    Supply Ability: 80,000m³ per year
    Contact Now
    Detailed Product Description
    Life Span: 20 Year Size: 25*12mm
    Material: HDPE Porosity: >90%
    Color: Any Port: Shanghai Or Ningbo

    Fish Ponds MBBR K1 Filter Media 20 Year Long Life Span 25mm X 12mm





    Main feature:
    Special formula and production technology, accelerating biological film formation ;
    Larger effective surface area, obtaining more microorganism;

    By bio-film decomposing technology, saving sludge return process;

    High-efficiency in denitrification and dephosphorization, improving the water quality;

    Lower energy consumption, saving space and shorten technology process.



    Small Boss MBBR Core technology:

    Special design of surface, stronger bio-film growth capacity;

    Large specific surface area, high voidage, the more periphyton biomass;
    Unique design of structure and shape according to hydromechanics, strong three-dimensional flow dynamics in the water;
    Adding hydrophilic groups and other trace elements, the biofilm formation time only 3-15 days;
    Excellent impact strength, strong gas shear capacity;
    Without any holder, easy to cure, save energy and space.



    (Using Scope)

    The sewage plant upgrade project , improve the standard and quantity

    New sewage treatment project of MBBR and biological aerated filter process

    Biochemical treatment of reclaimed water

    River regulation denitrification and phosphorus removal

    Aquaculture in addition to ammonia nitrogen, water purification

    Biological filter media is used for biological deodorization tower



    (Application industry: )

    Municipal, Power, Pharmaceutical, Chemical, Electroplating, Metallurgy, Machinery, Papermaking, Printing and Dyeing, Medicine, Food processing, Aquaculture, with the continuous improvement and the deepening use of our products, Small Boss filter media will be used more and more widely.



    The core of the MBBR technology are the biofilm carriers. They are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culturea when the carriers are suspended in water.

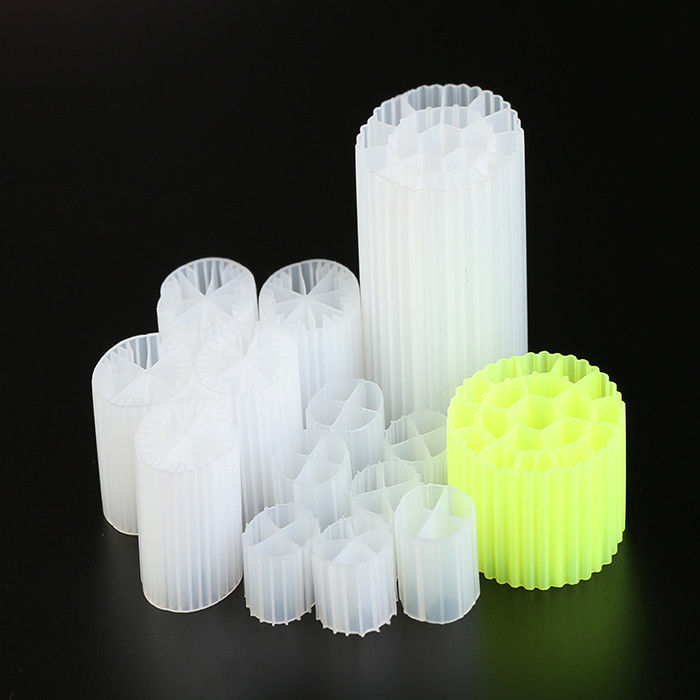

    Small Boss has developed several types of carriers with different shape, size and surface area. This gives us the flexibility to use the best suitable carrier depending on wastewater characteristics, pretreatment, discharge standards and available volumes. Currently we have ten different types of carriers



    Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
    (days)
    Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
    PE01 Φ12×9 >800 5-15 400-1200 <65 ≥10 >660,000
    PE02 Φ11×7 >900 5-15 400-1200 <65 ≥10 >1.038,000
    PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥10 >100,000
    PE04 Φ16×10 >800 5-15 400-1200 <65 ≥10 >3340,000
    PE05 Φ25×12 >500 5-15 400-1200 <65 ≥10 >135,000
    PE06 Φ25×12 >500 5-15 400-1200 <65 ≥10 >97000
    PE07 Φ35×18 >350 5-15 300-800 <65 ≥10 >33000
    PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥10 >2000000
    PE09 Φ15×15 >900 5-15 500-1400 <65 ≥10 >230,000
    PE10 Φ25×8 >1200 5-15 500-1400 <65 ≥10 >140,000




    Fish Ponds MBBR K1 Filter Media 20 Year Long Life Span 25mm X 12mm
