Place of Origin: | China |
Brand Name: | Small Boss |
Certification: | SGS, FDA, ISO9001 |
Model Number: | PE02 |
Minimum Order Quantity: | 5 cubic meter |
---|---|
Price: | discuss personally |
Packaging Details: | woven bag |
Delivery Time: | as your requirement qty |
Payment Terms: | T/T, L/C |
Supply Ability: | 80,000m³ per year |
Applicable Temperature: | 5-60 | Density: | 0.96-0.98 |
---|---|---|---|
Color: | White | Porosity: | >85 |
Packing Numbers: | 830000 | Nitrfication Efficiency: | 400-1200 |
High Light: | k1 bio filter media,k1 micro filter |

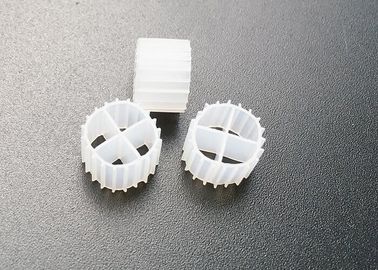

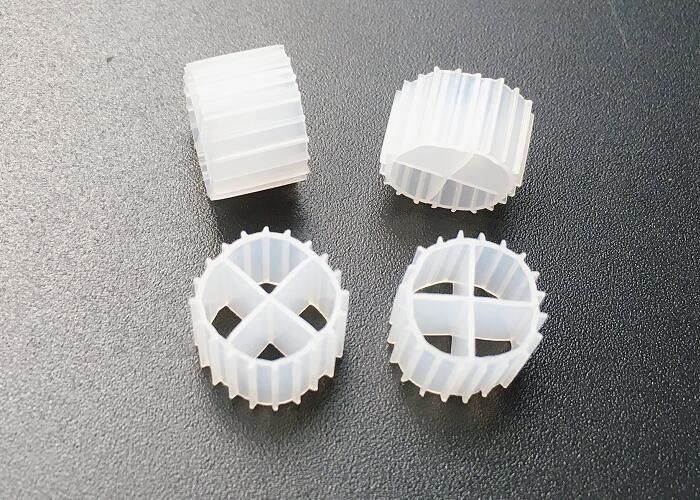

Super Decarburization K1 Filter Media Moving Bed Biofilter For Aquariums
K1 Filter Media
Small Boss MBBR Filter Media Package:
0.1m3/woven bag; 1m3/woven bag;1m3/carton .
20ft container could load 30m3. 40HC container load 70m3
product introduction
MBBR filter media is a novel biologically active carrier, it adopts scientific formula, depending
on the nature of water, blending a variety of beneficial microorganisms grow quickly attached trace elements in polymer materials, through a special process modification, constructed, with more than large surface area, hydrophilic, high biological activity, biofilm fast, good effect, good impact resistance.
Small Boss MBBR Core technology:
Special design of surface, stronger bio-film growth capacity;
Large specific surface area, high voidage, the more periphyton biomass;
Unique design of structure and shape according to hydromechanics, strong three-dimensional flow dynamics in the water;
Adding hydrophilic groups and other trace elements, the biofilm formation time only 3-15 days;
Excellent impact strength, strong gas shear capacity;
Without any holder, easy to cure, save energy and space.
MBBR Technology and Biofilm Carries
MBBR technology is based on the biofilm principle with an active biofilm growing on small specially designed plastic carriers that are kept suspended in the reactor. The technology utilizes the advantages of both activated sludge and other biofilm systems (e.g. biofilters, biorotors etc.) without being restrained by their disadvantages.
The carriers are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the carriers are suspended in water.
Solutions based on MBBR technology is mainly used in the following applications:
+ For new plants, especially those requiring a small footprint and easy operation, for BOD/COD and nitrogen removal
+ As a high loading system in front of existing biological treatment - roughing reactor
+ To increase the amount of nitrifying bacteria in existing activated sludge system using the WOCK OLIVER carrier in a hybrid plant to meet ammonia limits
+ To implement post-treatment to existing plants for process improvement
Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >1.038,000 |
PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |
Contact Person: Lily Fan
Tel: 15968397605
