Place of Origin:
China
Brand Name:
Small boss
Certification:
SGS, FDA, ISO9001
Model Number:
PE02

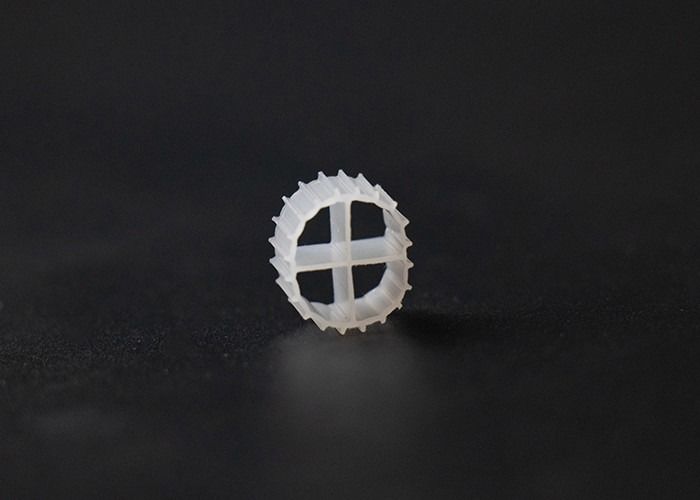

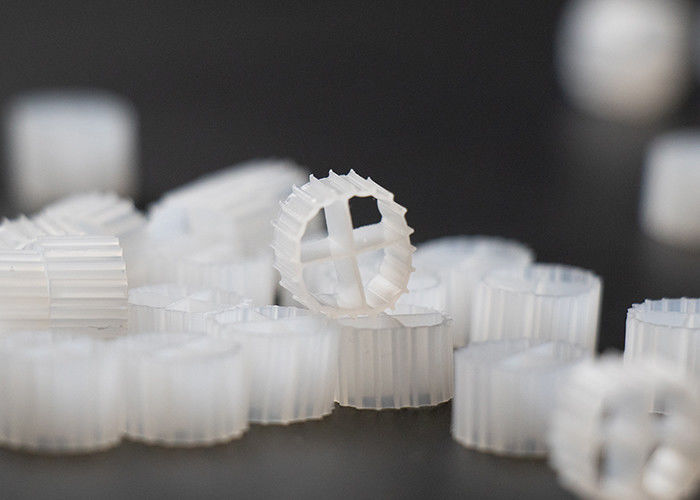

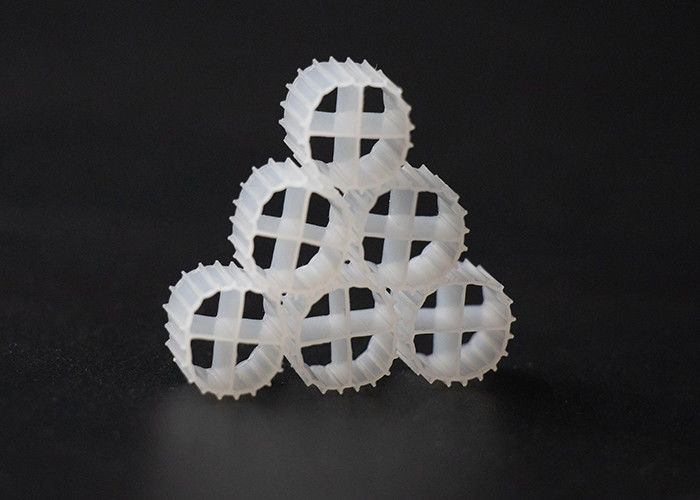

Shockproof K1 Filter Media Koi Pond Bio Filter Lower Energy Consumption
K1 Filter Media
Small Boss MBBR Filter Media Package:
0.1m3/woven bag; 1m3/woven bag;1m3/carton .
20ft container could load 30m3. 40HC container load 70m3
product introduction
MBBR filter media is a novel biologically active carrier, it adopts scientific formula, depending
on the nature of water, blending a variety of beneficial microorganisms grow quickly attached trace elements in polymer materials, through a special process modification, constructed, with more than large surface area, hydrophilic, high biological activity, biofilm fast, good effect, good impact resistance.
Main feature:
Special formula and production technology, accelerating biological film formation ;
Larger effective surface area, obtaining more microorganism;
By bio-film decomposing technology, saving sludge return process;
High-efficiency in denitrification and dephosphorization, improving the water quality;
Lower energy consumption, saving space and shorten technology process.
2. MBBR can be used in any kind of Pond, it’s no need special pond, and it can used the same pond as before if we change the system to MBBR treatment system, what’s the most important thing is MBBR can be full use of pond volume.
Accelerate the reaction rate significantly, compared with the activated sludge process, reaction efficiency 5 ~ 10 times
Simultaneous nitrification and denitrification process,it can be a good denitrification and phosphorus removal
It is no need bracket, just put in the MBBR filter media directly.
MBBR filter media packing free flow and cutting air bubbles in water, increase dissolved oxygen in water, save energy consumption
Small Boss MBBR Core technology:
Special design of surface, stronger bio-film growth capacity;
Large specific surface area, high voidage, the more periphyton biomass;
Unique design of structure and shape according to hydromechanics, strong three-dimensional flow dynamics in the water;
Adding hydrophilic groups and other trace elements, the biofilm formation time only 3-15 days;
Excellent impact strength, strong gas shear capacity;
Without any holder, easy to cure, save energy and space.
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥15 | >630,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥15 | >930,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥15 | >990,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥15 | >260,000 |
| PE05 | Φ25×10 | >500 | 5-15 | 400-1200 | <65 | ≥15 | >118,000 |
| PE06 | Φ25×10 | >500 | 5-15 | 400-1200 | <65 | ≥15 | >118,000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥15 | >33,000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥15 | >154,000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥15 | >230,000 |
| PE64 | Φ25×4 | >1200 | 5-15 | 500-1400 | <65 | ≥15 | >228,750 |
