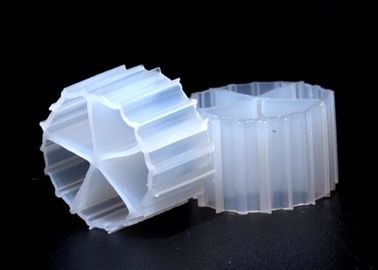

Hydrophilic MBBR Plastic Filter Media Lower Energy Consumption

Hydrophilic MBBR Plastic Filter Media Lower Energy Consumption

    • Hydrophilic MBBR Plastic Filter Media Lower Energy Consumption
    • Hydrophilic MBBR Plastic Filter Media Lower Energy Consumption
  • Hydrophilic MBBR Plastic Filter Media Lower Energy Consumption

    Product Details:

    Place of Origin: China
    Brand Name: Smallboss
    Certification: SGS, FDA, ISO9001
    Model Number: PE03

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 cubic meter
    Price: discuss personally
    Packaging Details: woven bag
    Delivery Time: as your requirement qty
    Payment Terms: T/T, L/C
    Supply Ability: 80,000m³ per year
    Contact Now
    Detailed Product Description
    Material: HDPE Density: 0.96-0.98g/cm3
    Surface Area: 1000m2/m3 Size: 10*7mm
    Port: Shanghai Or Ningbo Color: White

    Hydrophilic MBBR Plastic Filter Media Lower Energy Consumption





    Tongxiang SmallBoss Special Plastic Products Co., Ltd. is a comprehensive hi-tech enterprise established in 1992 specializing in the research and development, production and sale of environmental friendly products and MBBR biological filter media.Small Bosscompany has cooperated with Singapore Biological Filter Media Research Institute, Shanghai University and Wuhan University to carry out research and development of water treatment filler since 2004. After years of efforts, Small Boss has successfully developed a number of new Biological Filter Medias and obtained 75 national patents for the products including 12 patents for MBBR biological filter media



    MBBR Technology and Biofilm Carries
    MBBR technology is based on the biofilm principle with an active biofilm growing on small specially designed plastic carriers that are kept suspended in the reactor. The technology utilizes the advantages of both activated sludge and other biofilm systems (e.g. biofilters, biorotors etc.) without being restrained by their disadvantages.
    The carriers are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the carriers are suspended in water.
    Solutions based on MBBR technology is mainly used in the following applications:

    + For new plants, especially those requiring a small footprint and easy operation, for BOD/COD and nitrogen removal

    + As a high loading system in front of existing biological treatment - roughing reactor

    + To increase the amount of nitrifying bacteria in existing activated sludge system using the WOCK OLIVER carrier in a hybrid plant to meet ammonia limits

    + To implement post-treatment to existing plants for process improvements



    MBBR Technology
    Technical Details
    The aerated MBBR uses, as the activated sludge process, the whole volume of an open tank. It is defined as a biofilm system, as the biomass is growing on carriers that move freely within the reactor volume and are kept within the reactors by a sieve at the reactor outlet. The system can be used either for aerobic or anoxic processes. In aerobic processes the biofilm carriers are kept in suspension by the agitation created by air from aeration diffusers, while in anoxic processes a mixer keep the carriers in movement. A schematic of the principle in an implementation of the WOCK OLIVER MBBR technology is shown below
    (Figure 1).

    Plastic Seal / Mbbr Media/Mbbr
    Figure 1: Schematic showing the principle of the MBBR



    Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
    (days)
    Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
    PE01

    Φ12×9

    >800 5-15 400-1200 <65 ≥10 >660,000
    PE02 Φ11×7 >900 5-15 400-1200 <65 ≥10 >1.038,000
    PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥10 >100,000
    PE04 Φ16×10 >800 5-15 400-1200 <65 ≥10 >3340,000
    PE05 Φ25×12 >500 5-15 400-1200 <65 ≥10 >135,000
    PE06 Φ25×12 >500 5-15 400-1200 <65 ≥10 >97000
    PE07 Φ35×18 >350 5-15 300-800 <65 ≥10 >33000
    PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥10 >2000000
    PE09 Φ15×15 >900 5-15 500-1400 <65 ≥10 >230,000
    PE10 Φ25×8 >1200 5-15 500-1400 <65 ≥10 >140,000



    Q: Can I order a sample?

    A: Of course, forthe existing model we have,our factory would like to offer one or two pieces sample to customer,for customized model making shall be consulted.



    Q: Are you factory/manufacturer of trader?

    A: We are direct factory who owns production lines and workers.Everything is flexible and there is noty need to worry about extra charges by the middle man or trader.



    Q: What's your delivery time?

    A: For stocks, we can send the goods to loading port within 7 days after receiving your deposit .For producting period,it usually needs about 15 days-30 days after receiving the deposit.



    Q: What's your payment terms?

    A: We accept 100%T/T (Telegraphic transfer) in advance for small orders(value under USD 2,000).For some big orders,we can accept 30% deposit,70% balance before shipment.

    For very small orders, we can accept Western union payment. We are doing the best to match your demand.



    Q: What payment method you can accept?

    Generally, we accept T/T,L/C,Western Union and Money Gram.

    Hydrophilic MBBR Plastic Filter Media Lower Energy Consumption
