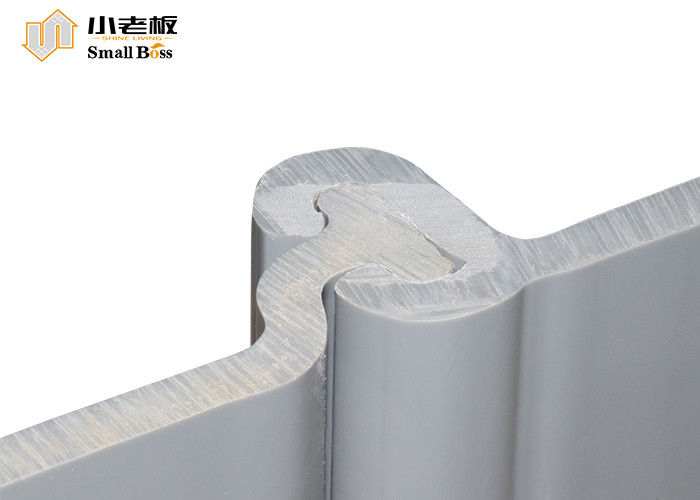

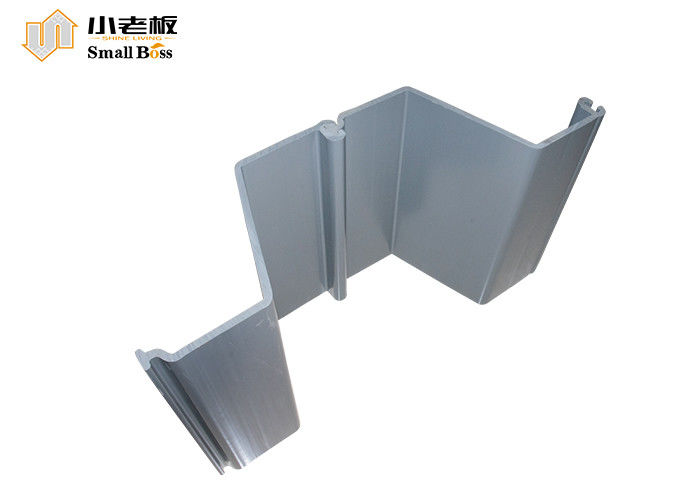

PVC Plastic Sheet Piling for Cutoff and Containment Barriers Z Shaped Profile
Plastic sheet piling is made from recycled PVC,PVC brings several advantages to sheet piling, particularly in terms of product longevity, it does not rust or rot and so is ideal for permanent applications that need a low maintenance solution.
The ease of manual handling, due to the low weight of the sheet piles is becoming more of an asset; enabling the product to be carried to very access restricted sites. In terms of major schemes, this low weight reduces the number requried deliveries- less site nuisance and lower carbon foot print. Plastic sheet piling competes directly with trench sheeting and hot rolled steel sheet piling. However, over the years it has carved itself a niche between the two, for those applications that require the water tighteness of a hot rolled section, but not neccessarily the strength.
Older designs of plastic piles, such as the Economy (Standard) Z pile, are extremely lightweight and so limited in terms of drivability and load support. This has greatly improved in recent years with the introduction of the heavy duty Z and U sheet piles.
Plastic Piling has finally matured in to a tangible and effective sheet piling product, providing a viable alternative and in many cases a marked improvement over timber and steel piling. The introduction of the hybrids, providing a hard engineered alternative to popular timber staked geotextiles.
These products have also enhanced the appearance of hard engineered structures, plastic piling provides a very attractive aesthetic, compared to the industrial look of repeated corrugations.
Advantage of Smallboss PVC Sheet Pile
√ Does not rot or rust
√ Manufactured from recycled plastic
√ Resistant to the majority of chemicals
√ Not affected by salt water
√ Light weight, easy handling
√ Reduced impact on natural resources
VINYL SHEET PILE INSTALLATION
There are a large number of techniques to drive vinyl sheet piles. The system used largely depends on the circumstances. In some situations, particularly when short lengths of Plastic Piling are being installed, it can be inserted into the ground manually by using a maul and pile cap. This is often the case in peat land areas, where the ground conditions are more favorable. When installing longer lengths, or where the ground conditions are more difficult, a piling hammer should be used. Driving the sheet pile directly can be done with a standard pneumatic hammer or a light vibrator with or without a clamp. This system is only suitable for driving at light conditions and to a limited depth. For heavy conditions and installation from 4m up to 8m depth, it is advisable to use a steel support sheet pile with exactly the same shape as the PVC profile. With support harder soil can be penetrated and installation is speeded up because the hammer does not have to be disconnected from the steel guiding sheet pile.
√ Sheet pile length.
√ Soil conditions.
√ Onshore or offshore.
√ Water depth.
CUT-OFF & CONTAINMENT SYSTEMS
Used to protect places with variable or raised groundwater level, PVC sheet piling efficiently reduces water infiltration as well as secures the terrain against gradual erosion and degradation.Groundwater cut-off Chemical containment, Fluid Seepage Barriers, Protection of Foundation Structures.
The EcoLock retaining systems may be used to separate water reservoirs or groundwater from environmentally challenged places(for instance, in the vicinity of landfills andfactories). Applications include but are not limited to: Groundwater cut-off,Chemical containment,Fluid Seepage Barriers,Protection of Foundation Structures. beachfront protection, coastline protection, road protection, bulkheads construction.
Flood protection structures
PVC solutions are used more and more frequently in the construction of flood walls. They significantly strengthen and increase the durability and tightness of the structure, preventing water leaks during floods.
WATER CONTROL SOLUTIONS
Vinyl Sheet Piles can be utilised for fluid containment or cutoff barriers due to their good chemical resistance and seepage resistance especially if combined with a sealant. Vinyl PVC Sheet Piles can be utilized for water control structures that function by altering the flow of water in a pond, drainage channel or stream. ESC sheet piles have been utilized for water control applications for decades.
Baffle Walls for water or waste water flow control
• River Weirs
• Pond Linings
• Channel Linings for agricultural applications
• River Diversion
• Mining drainage systems
Smallboss has been delivering sheet piling solutions to marine structures. Vinyl PVC Sheet Piles provide an excellent option for a long-lasting structural solution due to their superior corrosion resistance, aesthetic finish, and lightweight profile for easy handling and installation.
The marine applications include:
• Marine Bulkheads & Seawalls
• Tide Walls
• Wave Breaks
• Jetty Structures
• Scour Protection and Erosion Control
• Retaining Walls
Embankment Works / Road Construction
The use of sheet piles reduces the volume of backfill materials by enclosing certain limits exactly as necessary. Employing the material also eliminates the requirement for slope protection works and helps maximize the area when it is limited.
Vinyl sheet pile which can be manufactured to any length specified in the project would make them ideal for the construction of the following: over water or elevated roads,over water or elevated walkways, coastal roads
,jetties or berths, other reclamations.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10-20 days if the goods are in stock. or it is 30-45 days if the goods are not in stock, it
is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge ,there are delivery cost to be paid by buyer.
Q: What is your terms of payment ?
A: T/T ,L/C or Alibaba Assurance.
