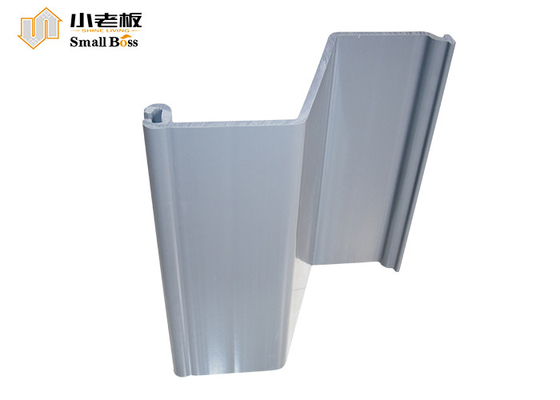

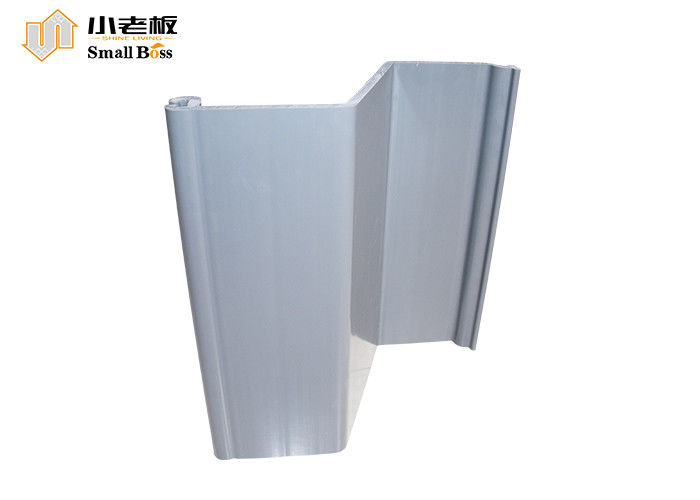

Best Material for Seawalls Waterfronts PVC Synthetic Sheet Piles
PVC sheet piling is the pile with connecting locks for the building up of a solid protective wall. It is an analogue of Larssen steel sheet pile, but made of heavy-duty PVC (polyvinyl chloride) and is widely used in hydrotechnical and engineering construction. Possessing high mechanical resistance, it is stable to rotting, corrosion and rust, and the PVC characteristics allow to use it in aggressive environmental conditions.
Advantage of Smallboss PVC Sheet Pile
√ Does not rot or rust
√ Manufactured from recycled plastic
√ Resistant to the majority of chemicals
√ Not affected by salt water
√ Light weight, easy handling
√ Reduced impact on natural resources
VINYL SHEET PILE INSTALLATION
There are a large number of techniques to drive vinyl sheet piles. The system used largely depends on the circumstances. In some situations, particularly when short lengths of Plastic Piling are being installed, it can be inserted into the ground manually by using a maul and pile cap. This is often the case in peat land areas, where the ground conditions are more favorable. When installing longer lengths, or where the ground conditions are more difficult, a piling hammer should be used. Driving the sheet pile directly can be done with a standard pneumatic hammer or a light vibrator with or without a clamp. This system is only suitable for driving at light conditions and to a limited depth. For heavy conditions and installation from 4m up to 8m depth, it is advisable to use a steel support sheet pile with exactly the same shape as the PVC profile. With support harder soil can be penetrated and installation is speeded up because the hammer does not have to be disconnected from the steel guiding sheet pile.
√ Sheet pile length.
√ Soil conditions.
√ Onshore or offshore.
√ Water depth.
CUT-OFF & CONTAINMENT SYSTEMS
Used to protect places with variable or raised groundwater level, PVC sheet piling efficiently reduces water infiltration as well as secures the terrain against gradual erosion and degradation.Groundwater cut-off Chemical containment, Fluid Seepage Barriers, Protection of Foundation Structures.
The EcoLock retaining systems may be used to separate water reservoirs or groundwater from environmentally challenged places(for instance, in the vicinity of landfills andfactories). Applications include but are not limited to: Groundwater cut-off,Chemical containment,Fluid Seepage Barriers,Protection of Foundation Structures. beachfront protection, coastline protection, road protection, bulkheads construction.
Flood protection structures
PVC solutions are used more and more frequently in the construction of flood walls. They significantly strengthen and increase the durability and tightness of the structure, preventing water leaks during floods.
WATER CONTROL SOLUTIONS
Vinyl Sheet Piles can be utilised for fluid containment or cutoff barriers due to their good chemical resistance and seepage resistance especially if combined with a sealant. Vinyl PVC Sheet Piles can be utilized for water control structures that function by altering the flow of water in a pond, drainage channel or stream. ESC sheet piles have been utilized for water control applications for decades.
Baffle Walls for water or waste water flow control
• River Weirs
• Pond Linings
• Channel Linings for agricultural applications
• River Diversion
• Mining drainage systems
Smallboss has been delivering sheet piling solutions to marine structures. Vinyl PVC Sheet Piles provide an excellent option for a long-lasting structural solution due to their superior corrosion resistance, aesthetic finish, and lightweight profile for easy handling and installation.
The marine applications include:
• Marine Bulkheads & Seawalls
• Tide Walls
• Wave Breaks
• Jetty Structures
• Scour Protection and Erosion Control
• Retaining Walls
Embankment Works / Road Construction
The use of sheet piles reduces the volume of backfill materials by enclosing certain limits exactly as necessary. Employing the material also eliminates the requirement for slope protection works and helps maximize the area when it is limited.
Vinyl sheet pile which can be manufactured to any length specified in the project would make them ideal for the construction of the following: over water or elevated roads,over water or elevated walkways, coastal roads
,jetties or berths, other reclamations.
