Brand Name: | Small boss |
Model Number: | PE04 |
MOQ: | 5cbm |
Price: | discuss personally |
Packaging Details: | woven bag |
Payment Terms: | L/C, T/T |

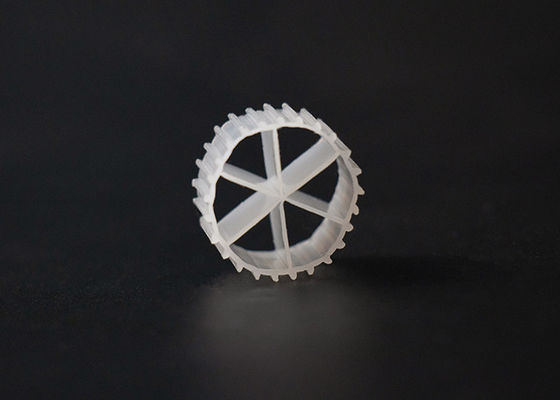

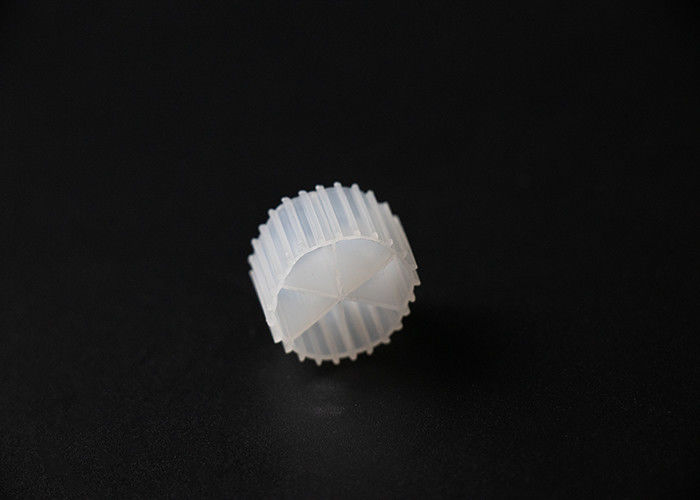

16*10mm Size A/O technology bioports MBBR Biocell Filter Media MBBR carrier
The conventional way to treat wastewater is activated sludge where you have a suspended biomass floating around in the wastewater and you let that settle out in the clarifier, then pump it back into the main aeration basin. MBBR technology uses plastic media to house the bacteria, so you don’t have to settle, capture and return it. It just stays in the basin, so it tends to be a more robust, resilient process and is less prone to upsets that could cause settling issues.
Small Boss MBBR Biofilm Carries
We supply a range of biofilter media, This product is sold by the cubic metre. These products are suited to fluidized or moving bed tank systems. These are also called "Biofilm Reactor (MBBR)"systems and are used for treatment of water and wastewater.
Self cleaning due to turbulence:
Due to the turbulent movement of the biofilter media in suspension,the filter media is self-cleaning ,requiring no maintenance.This allows the filter to reach optimum effeciveness without the disturbance of periodic maintenance,avoiding unnecessary loss of bacteria within the filter.This allows stable,low levels of ammonia and nitrite within the water.
The first few of these products are similar to the patented kaldnes media used in fish farming and waste treatment .The design creates an environment for effective nitrification to take place .Twater flow is created by aeration tha circulates the media throughout the vessel .This high suface area of these products traslates into a small physical area needed for the biofiltration unit.
Due to vigorous mixing of the kaldnes-like media through aeration,the media is self-cleaning,Requiring no maintenance.This allows the filter to reach optimum effectiveness
Periodic maintenance is not necessary,preventing the unnecessary loss of bacteria and subsequent ammonia and nitrite spikes in the system.
Specification data:
Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥20 | >260,000 |
Density:0.96g/cm3~0.98g/cm3
Small Boss MBBR Filter Media Advantage
Small Boss MBBR Filter Media Application
