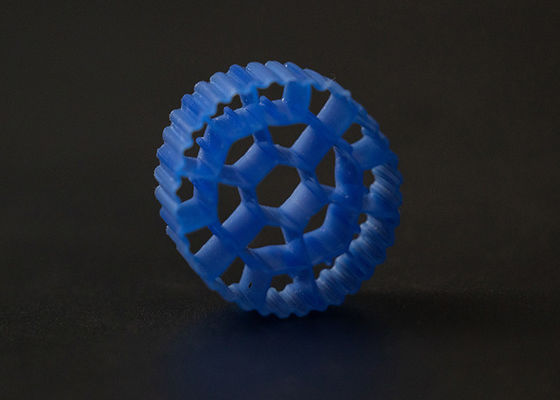

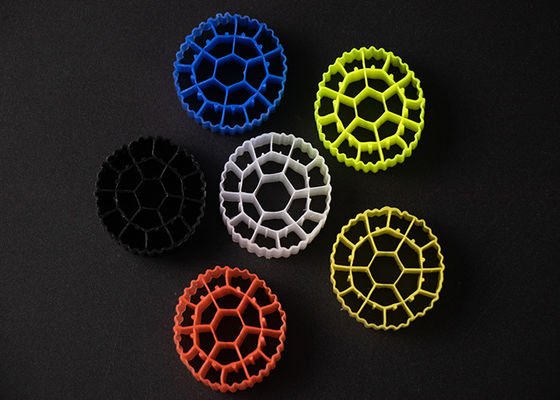

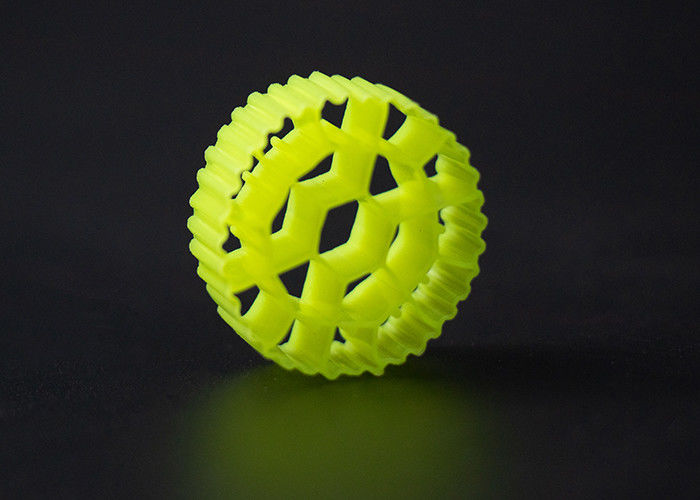

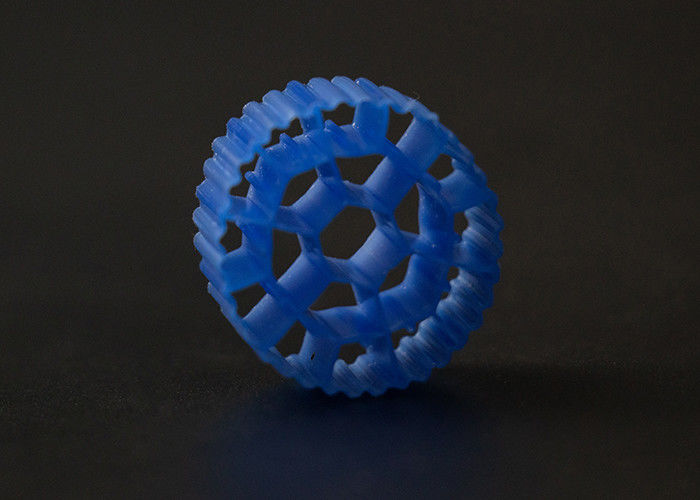

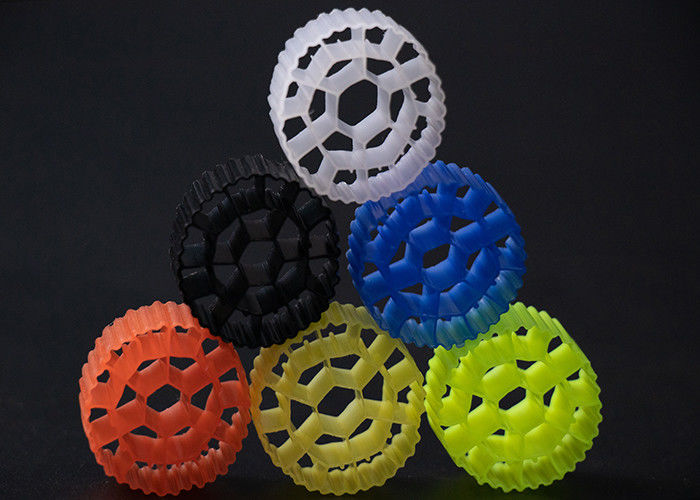

PE05 K3 Activity Floating Mbbr Carrier White Color Hdpe

PE05 K3 activity floating white color hdpe mbbr carrier filter media

What is MBBR?

An MBBR (Moving Bed Biofilm Reactor) system consists of an aeration tank (a swimming pool sized concrete basin), similar to an activated sludge tank, full of small plastic carriers, which are the size of a quarter. The carriers provide a surface where a biofilm can grow and are mixed in the tank by the aeration system, providing good contact between the substrate in the influent wastewater and the biomass on the carriers.

What are the benefits of MBBR?The footprint of the MBBR system is quite a bit smaller than what you would need for activated sludge. MBBR can also be less expensive and less difficult to operate than activated sludge systems.
The other benefit of MBBR’s plastic carriers is they grow bacteria that remove ammonia (nitrifying bacteria). Nitrifiers are super slow growing and could be difficult to grow in activated sludge because you would need a large biomass and large volume of aeration basins. It’s also difficult to grow nitrifiers in cold water with an activated sludge process.

Using Scope

The sewage plant upgrade project , improve the standard and quantity

New sewage treatment project of MBBR and biological aerated filter process

Biochemical treatment of reclaimed water

River regulation denitrification and phosphorus removal

Aquaculture in addition to ammonia nitrogen, water purification

Biological filter media is used for biological deodorization tower

Application industry

Municipal, Power, Pharmaceutical, Chemical, Electroplating, Metallurgy, Machinery, Papermaking, Printing and Dyeing, Medicine, Food processing, Aquaculture, with the continuous improvement and the deepening use of our products, Small Boss filter media will be used more and more widely.

Using Advantages

1. Rapid carrier biofilm formation mechanism

Specific trace element vector into and special surface treatment process, the microorganisms in water on the carrier attached rapidly and rapid propagation of growth, biofilm formation in different water conditions, and biofilm schedule differences, generally, the hang film need 3-15 days.

2. Super decarburization, ammonia nitrogen removal capacity

Carrier provide a safe and comfortable environment for microbial breeding, Biological variety, because of no sludge age limit, nitrifying bacteria have also been large-scale breeding, microbial population huge is dissolved organic compounds and ammonia decomposition.

3. Excellent resistance to shock load performance

Efficient processing capacity, its ability to remove organic matter 2-5 times higher than that of other traditional methods, high concentrations of biomass and diversity of biological fungus, strong resistance to impact load capacity

4. Flexible way of engineering application

Different stages can be applied to the good nitrogen, anaerobic, anoxic process, only need to handle effect by adding the filter media can easily obtain satisfactory result.

5. Simple operation and maintenance

Without support, put filter media in the pool directly, and it can save the return sludge, avoiding sludge bulking, come-up and loss, convenient to operate and maintain.

6. Long service life

Through a special process modification, the filter media have a good resistance, UV resistance, strong toughness, not easy to aging and embrittlement, and it has a long service life.

7. Deoxidation and phosphorus removal effect is good

Due to the biological film have a strong digestive ability, water ammonia nitrogen can be completely transformed into nitrate and ammonia, the denitrification can give full play to the maximum, denitrification more thoroughly.

Meanwhile biofilm huge phosphorus phosphate material flora water thoroughly absorbed, and through the biological film off into the sedimentation tank and eventually to the sludge discharged system, the phosphorus removal effect more obvious
