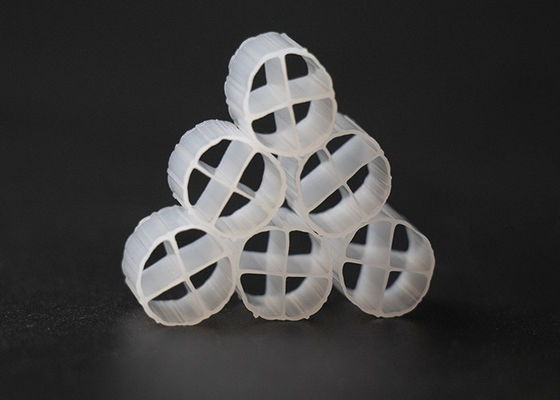

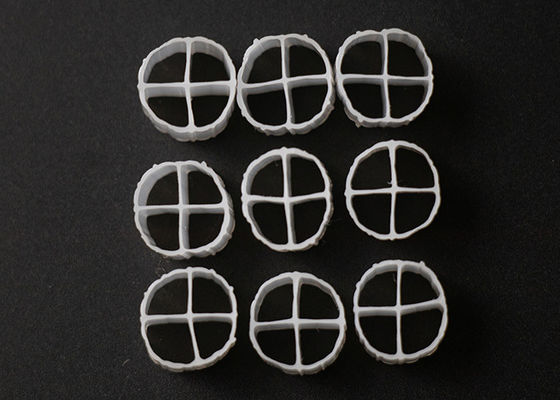

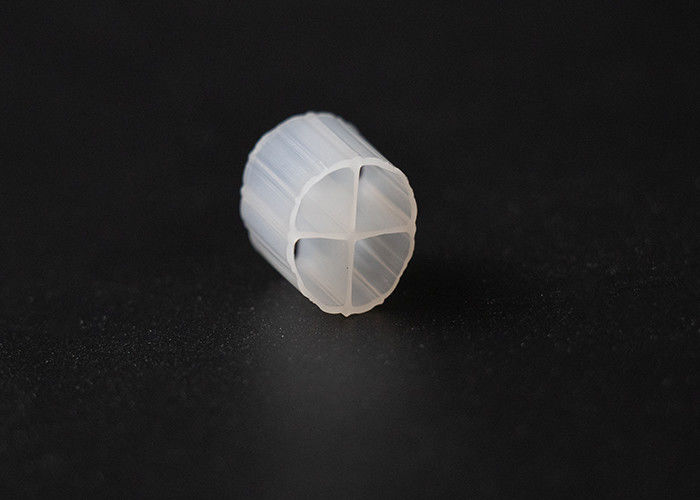

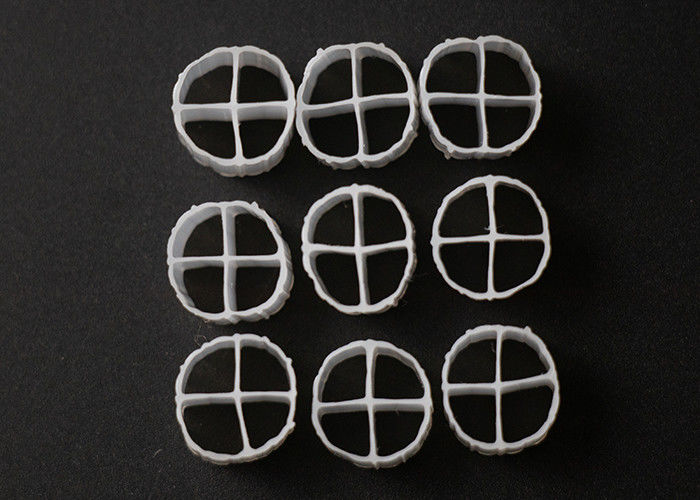

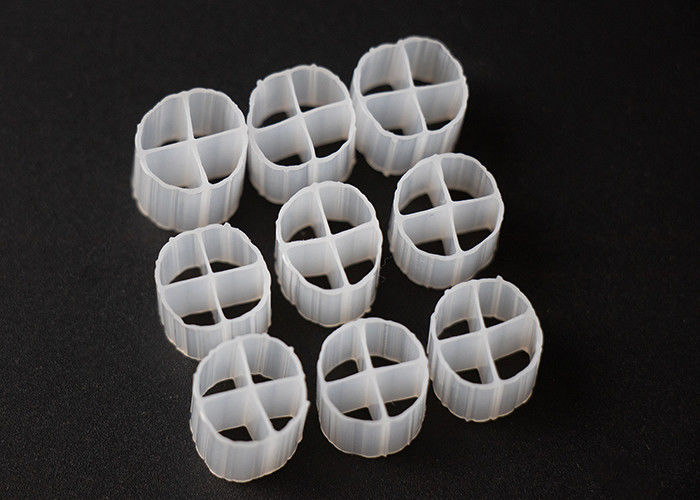

Bio Media White Hdpe Mbbr Water Treatment High Efficiency

Bio Media White Hdpe Mbbr Water Treatment High Efficiency

  • Bio Media White Hdpe Mbbr Water Treatment High Efficiency
  • Bio Media White Hdpe Mbbr Water Treatment High Efficiency
  • Bio Media White Hdpe Mbbr Water Treatment High Efficiency
  • Bio Media White Hdpe Mbbr Water Treatment High Efficiency
Bio Media White Hdpe Mbbr Water Treatment High Efficiency
Product Details:
Place of Origin: China
Brand Name: Small boss
Certification: SGS, FDA, ISO9001
Model Number: PE01
Payment & Shipping Terms:
Minimum Order Quantity: 5 cubic meter
Price: discuss personally
Packaging Details: woven bag
Delivery Time: as your requirement qty
Payment Terms: T/T, L/C
Supply Ability: 80,000m³ per year
Contact Now
Detailed Product Description
Material: Virgin HDPE Hole Numbers: 4 Holes
Color: Any Color Density: 0.94-0.97g/cm3
Surface Area: 800m2/m3 Port: Shanghai Or Ningbo
High Light:

High Efficiency MBBR Water Treatment


Bio Media MBBR Water Treatment


Hdpe biofilm wastewater treatment

High Efficiency MBBR Bio Media white color hdpe mbbr water treatment


Product description

MBBR is a moving media system, used in Integrated Fixed-lm Activated Sludge (IFAS) and moving bed biofilm reaction (MBBR) system.

The wastewater goes through suspending media of MBBR reactor, forming biological membrane on the surface of media gradually. With the action of microbial on the biological membrane, wastewater is purified. MBBR biofilm carrier can move freely in the reactor with the mixing of the water. For the aerobic reactor, the aeration will make the media move; for the anaerobic reactor, mechanic mixing will make the media move. Our MBBR biofilm carrier is new-developed media, has better treatment effect compared with traditional media.


Using Scope

The sewage plant upgrade project , improve the standard and quantity

New sewage treatment project of MBBR and biological aerated filter process

Biochemical treatment of reclaimed water

River regulation denitrification and phosphorus removal

Aquaculture in addition to ammonia nitrogen, water purification

Biological filter media is used for biological deodorization tower


Application industry:

Municipal, Power, Pharmaceutical, Chemical, Electroplating, Metallurgy, Machinery, Papermaking, Printing and Dyeing, Medicine, Food processing, Aquaculture, with the continuous improvement and the deepening use of our products, Small Boss filter media will be used more and more widely.


Using Advantages

Rapid carrier biofilm formation mechanism


1,Specific trace element vector into and special surface treatment process, the microorganisms in water on the carrier attached rapidly and rapid propagation of growth, biofilm formation in different water conditions, and biofilm schedule differences, generally, the hang film need 3-15 days.

2,Super decarburization, ammonia nitrogen removal capacity

Carrier provide a safe and comfortable environment for microbial breeding, Biological variety, because of no sludge age limit, nitrifying bacteria have also been large-scale breeding, microbial population huge is dissolved organic compounds and ammonia decomposition.

3,Excellent resistance to shock load performance

Efficient processing capacity, its ability to remove organic matter 2-5 times higher than that of other traditional methods, high concentrations of biomass and diversity of biological fungus, strong resistance to impact load capacity

4,Flexible way of engineering application

Different stages can be applied to the good nitrogen, anaerobic, anoxic process, only need to handle effect by adding the filter media can easily obtain satisfactory result.

5 ,Simple operation and maintenance

Without support, put filter media in the pool directly, and it can save the return sludge, avoiding sludge bulking, come-up and loss, convenient to operate and maintain.

6, Long service life

Through a special process modification, the filter media have a good resistance, UV resistance, strong toughness, not easy to aging and embrittlement, and it has a long service life.

7,Deoxidation and phosphorus removal effect is good

Due to the biological film have a strong digestive ability, water ammonia nitrogen can be completely transformed into nitrate and ammonia, the denitrification can give full play to the maximum, denitrification more thoroughly.

Meanwhile biofilm huge phosphorus phosphate material flora water thoroughly absorbed, and through the biological film off into the sedimentation tank and eventually to the sludge discharged system, the phosphorus removal effect more obvious.

Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
PE01 Φ12×9 >800 5-15 400-1200 <65 ≥15 >630,000
PE02 Φ11×7 >900 5-15 400-1200 <65 ≥15 >930,000
PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥15 >990,000
PE04 Φ16×10 >800 5-15 400-1200 <65 ≥15 >260,000
PE05 Φ25×10 >500 5-15 400-1200 <65 ≥15 >118,000
PE06 Φ25×10 >500 5-15 400-1200 <65 ≥15 >118,000
PE07 Φ35×18 >350 5-15 300-800 <65 ≥15 >33,000
PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥15 >154,000
PE09 Φ15×15 >900 5-15 500-1400 <65 ≥15 >230,000
PE64 Φ25×4 >1200 5-15 500-1400 <65 ≥15 >228,750
