Tongxiang Small Boss Special Plastic Products Co., Ltd.
 |
| Place of Origin: | China |
| Brand Name: | Small boss |
| Certification: | SGS, FDA, ISO9001 |
| Model Number: | PE37 |
| Minimum Order Quantity: | 5 cubic meter |
|---|---|
| Price: | discuss personally |
| Packaging Details: | woven bag |
| Delivery Time: | as your requirement qty |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 80,000m³ per year |
| Surface Area: | 800m2/m3 | Color: | Customized |
|---|---|---|---|
| Life Span: | ＞15 | Size: | 25*10mm |
| Applicable Temperature: | 5-60 | Material: | HDPE |
| High Light: | HDPE K1 Filter Media,K1 Filter Media PE37,Water Quality Improving MBBR Bio Media |
||

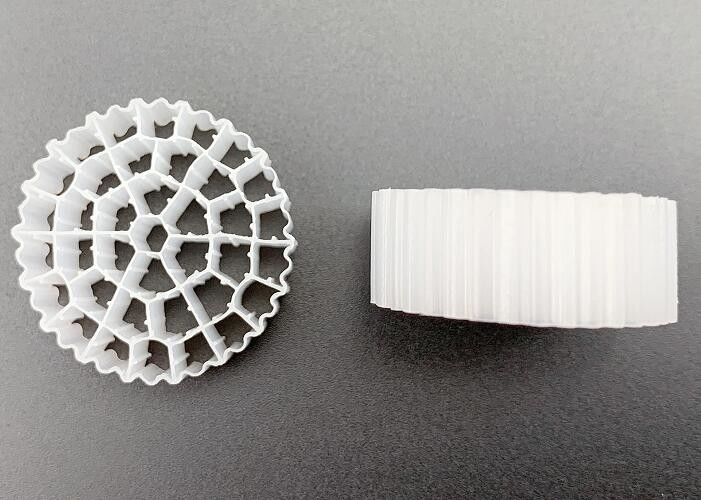

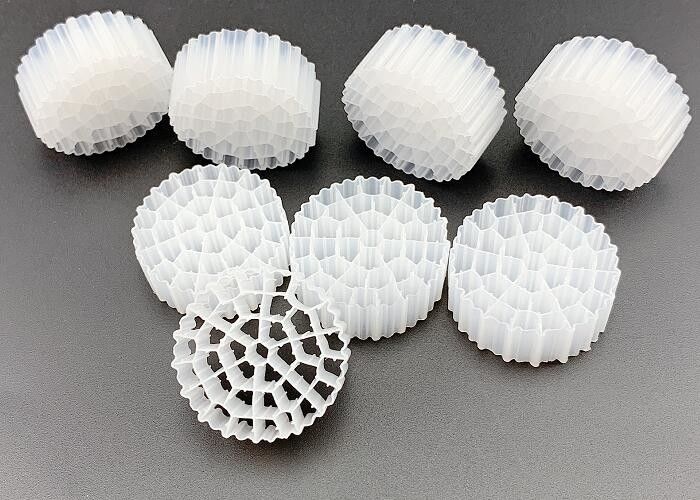

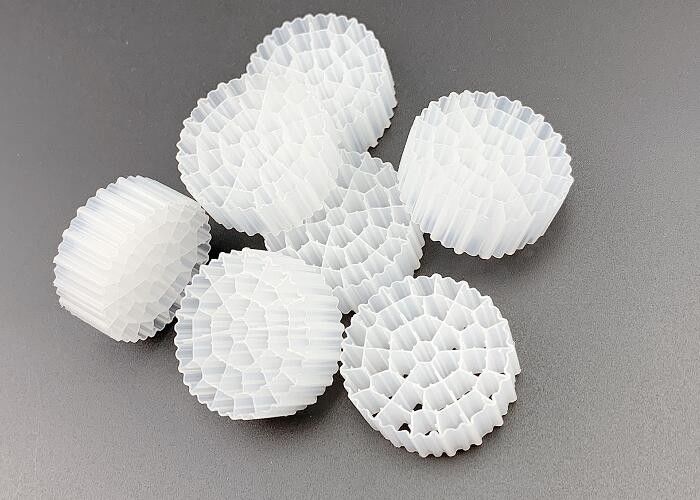

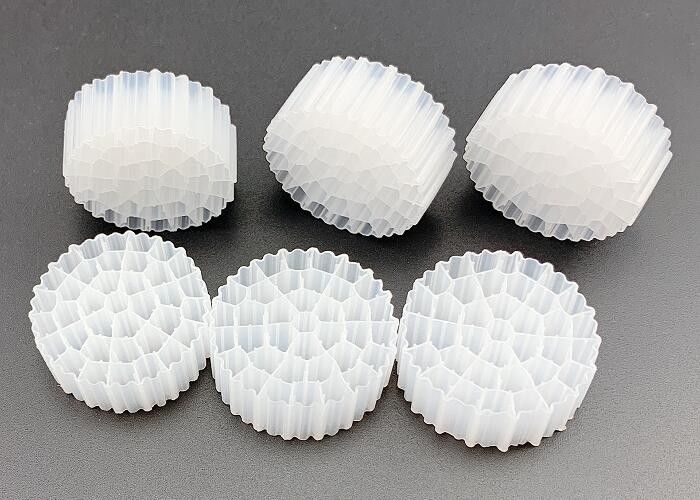

MBBR bio media Round pipe white color china manufacturer K1 filter media
Product introduction:
MBBR is a moving media system, used in Integrated Fixed-lm Activated Sludge (IFAS) and moving bed biofilm reaction (MBBR) system. The wastewater goes through suspending media of MBBR reactor, forming biological membrane on the surface of media gradually. With the action of microbial on the biological membrane, wastewater is purified. MBBR biofilm carrier can move freely in the reactor with the mixing of the water. For the aerobic reactor, the aeration will make the media move; for the anaerobic reactor, mechanic mixing will make the media move. Our MBBR biofilm carrier is new-developed media, has better treatment effect compared with traditional media.
Main feature:
Special formula and production technology, accelerating biological film formation ;
Larger effective surface area, obtaining more microorganism;
By bio-film decomposing technology, saving sludge return process;
High-efficiency in denitrification and dephosphorization, improving the water quality;
Lower energy consumption, saving space and shorten technology process.
Specification:
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE37 | Φ25×10 | >800 | 5-15 | 400-1200 | <65 | ≥20 | >118,000 |
Small Boss MBBR Biofilm Carries
We supply a range of biofilter media, This product is sold by the cubic metre. These products are suited to fluidized or moving bed tank systems. These are also called "Biofilm Reactor (MBBR)"systems and are used for treatment of water and wastewater.
Self cleaning due to turbulence:
Due to the turbulent movement of the biofilter media in suspension,the filter media is self-cleaning ,requiring no maintenance.This allows the filter to reach optimum effeciveness without the disturbance of periodic maintenance,avoiding unnecessary loss of bacteria within the filter.This allows stable,low levels of ammonia and nitrite within the water.
The first few of these products are similar to the patented kaldnes media used in fish farming and waste treatment .The design creates an environment for effective nitrification to take place .Twater flow is created by aeration tha circulates the media throughout the vessel .This high suface area of these products traslates into a small physical area needed for the biofiltration unit.
Due to vigorous mixing of the kaldnes-like media through aeration,the media is self-cleaning,Requiring no maintenance.This allows the filter to reach optimum effectiveness
Periodic maintenance is not necessary,preventing the unnecessary loss of bacteria and subsequent ammonia and nitrite spikes in the system.
Media volume needed:
with good turbulence and aeration, a feed rate of between 0.25 kgs and 0.75 kgs of 40% protein food per day requires 50 litres of media.
Contact Person: Lily Fan
Tel: 15968397605
