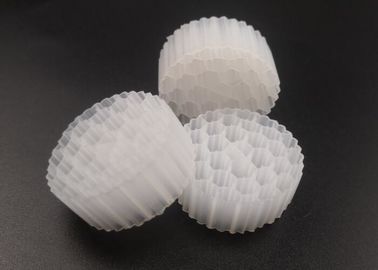

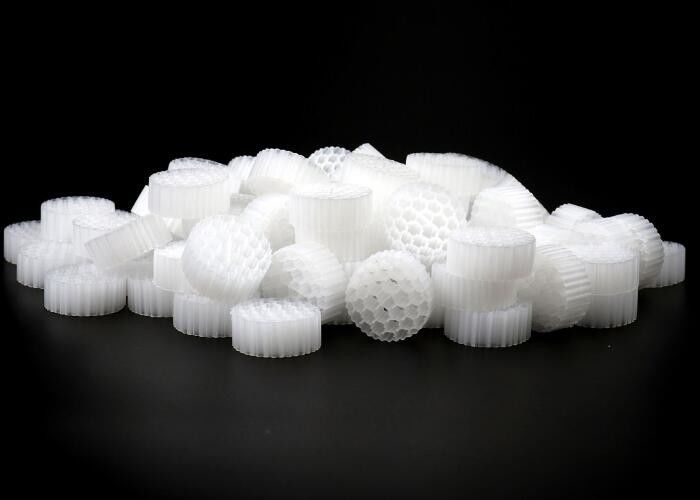

White And Black Color MBBR Filter Media With Virgin HDPE Material For Wastewater Treatment
MBBR Technology introduction:
MBBR technology is based on the biofilm principle with an active biofilm growing on small specially designed plastic carriers that are kept suspended in the reactor. The technology utilizes the advantages of both activated sludge and other biofilm systems (e.g. biofilters, biorotors etc.) without being restrained by their disadvantages.
The carriers are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the carriers are suspended in water.
Small Boss MBBR Filter Media ITEM
| Item | PE01 | PE02 | PE03 | PE05 | PE06 | PE07 | PE08 | PE09 | PE10 |
| Size diameter*length(mm) |
12*9 |
11*7 |
10*7 |
25*10 |
25*10 |
35*18 |
5*10 |
15*15 |
25*4 |
| Density(g/cm3) | 0.96-0.98 | ||||||||
| 0Surface ares (m2/m3) | >800 | >900 | >1000 | >500 | >500 | >350 | >3500 | >900 | >1200 |
Small Boss MBBR Filter Media Advantage
Small Boss MBBR Filter Media Application
Small Boss MBBR Filter Media Package:
0.1m3/woven bag; 1m3/woven bag;1m3/carton .
20ft container could load 30m3. 40HC container load 70m3
MBBR Technology
The aerated MBBR uses, as the activated sludge process, the whole volume of an open tank. It is defined as a biofilm system, as the biomass is growing on carriers that move freely within the reactor volume and are kept within the reactors by a sieve at the reactor outlet. The system can be used either for aerobic or anoxic processes. In aerobic processes the biofilm carriers are kept in suspension by the agitation created by air from aeration diffusers, while in anoxic processes a mixer keep the carriers in movement. A schematic of the principle in an implementation of the WOCK OLIVER MBBR technology is shown below.
|
|
