Tongxiang Small Boss Special Plastic Products Co., Ltd.
 |
| Place of Origin: | CHINA |
| Brand Name: | Smallboss |
| Certification: | SGS, FDA,ISO9001 |
| Model Number: | PE01 |
| Minimum Order Quantity: | 5 cubic meter |
|---|---|
| Price: | based on your quantity |
| Packaging Details: | woven bag |
| Delivery Time: | as your requirement |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 80,000m³ per year |
| Size: | 12*9mm | Density: | 0.96-0.98g/cm3 |
|---|---|---|---|
| Color: | White | Material: | HDPE |
| Port: | Ningbo | Life Span: | 20 Years |
| High Light: | mbbr carrier media,moving bed biological reactor,Moving Bed Biofilter White Color |
||

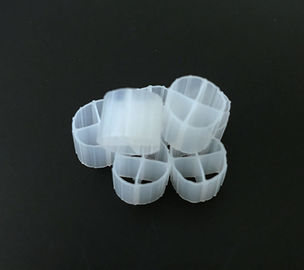

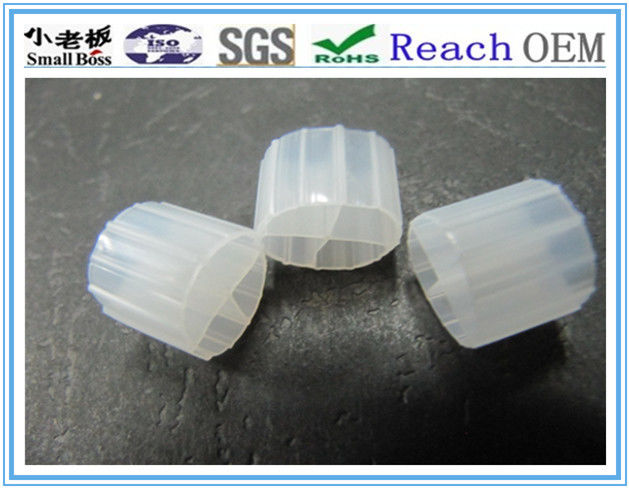

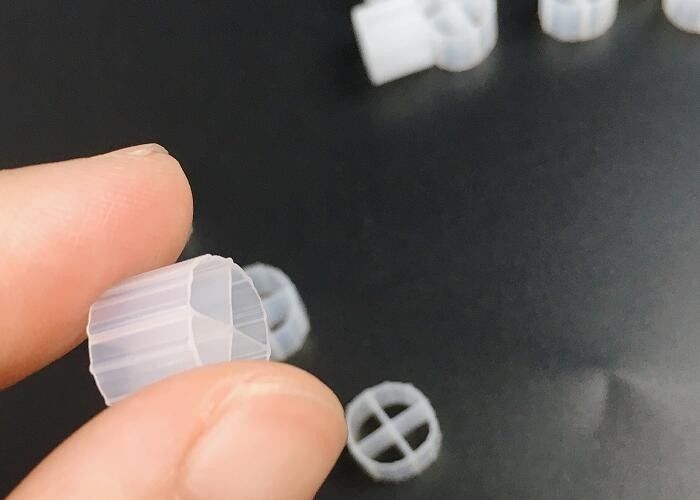

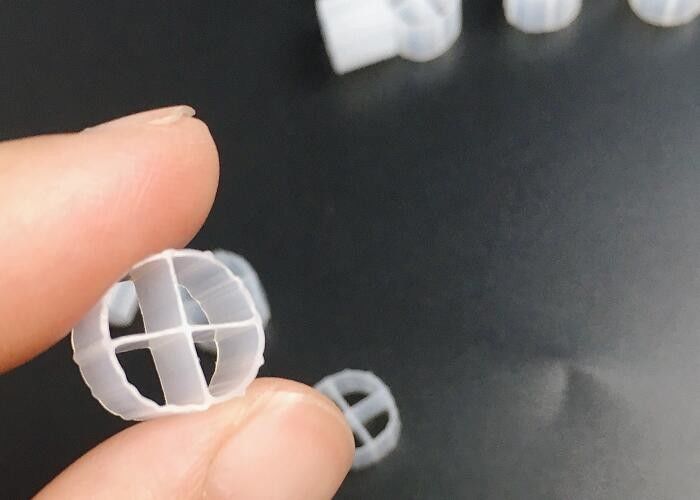

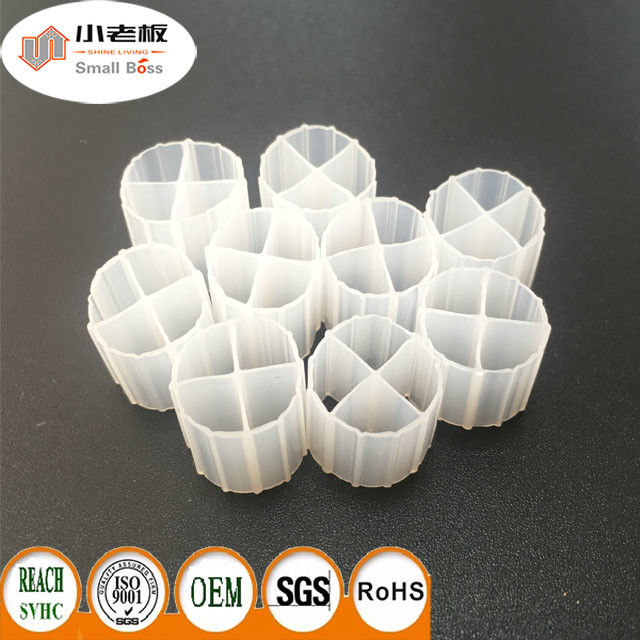

HIPS White Color Plastic Bio Media , Moving Bed Biofilter 12*9mm Size
Small Boss MBBR Biofilm Carries
We supply a range of biofilter media, This product is sold by the cubic metre. These products are suited to fluidized or moving bed tank systems. These are also called "Biofilm Reactor (MBBR)"systems and are used for treatment of water and wastewater.
Self cleaning due to turbulence:
Due to the turbulent movement of the biofilter media in suspension,the filter media is self-cleaning ,requiring no maintenance.This allows the filter to reach optimum effeciveness without the disturbance of periodic maintenance,avoiding unnecessary loss of bacteria within the filter.This allows stable,low levels of ammonia and nitrite within the water.
The first few of these products are similar to the patented kaldnes media used in fish farming and waste treatment .The design creates an environment for effective nitrification to take place .Twater flow is created by aeration tha circulates the media throughout the vessel .This high suface area of these products traslates into a small physical area needed for the biofiltration unit.
Due to vigorous mixing of the kaldnes-like media through aeration,the media is self-cleaning,Requiring no maintenance.This allows the filter to reach optimum effectiveness
Periodic maintenance is not necessary,preventing the unnecessary loss of bacteria and subsequent ammonia and nitrite spikes in the system.
Media volume needed:
with good turbulence and aeration, a feed rate of between 0.25 kgs and 0.75 kgs of 40% protein food per day requires 50 litres of media.
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >1.038,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
| PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |
Q: What kind of payment conditions do you accept?
A.: For small order, we accept 100%T/T payment before producing.
Payment term for a large order : 30%TT of deposit before producing, and 70% before shipping.
100% LC at sight.
Q: How to know whether my products is being built on schedule?
A: On clients' requests we are giving a detailed products building schedule and send weekly reports.
The report may have digital pictures that show the progress of work.
Q: What guarantee that you will make them as good as we do?
A: We can offer 1~3 pcs of samples to you for approval, if the quality is OK, and we will proceed our business.
We always inspect all specification shown on drawings, and we can offer Inspect Report to you.
Q: What guarantee do we get that its made from the correct material?
A: We can offer material certificates which will assure you we use correct material.
Q: If you make parts and there are wrong do you refund out money?
A: If the parts are wrong, we will return your money or we can make correct parts to you again.
