Place of Origin:
China
Brand Name:
Small Boss
Certification:
SGS, FDA, ISO9001
Model Number:
PE09

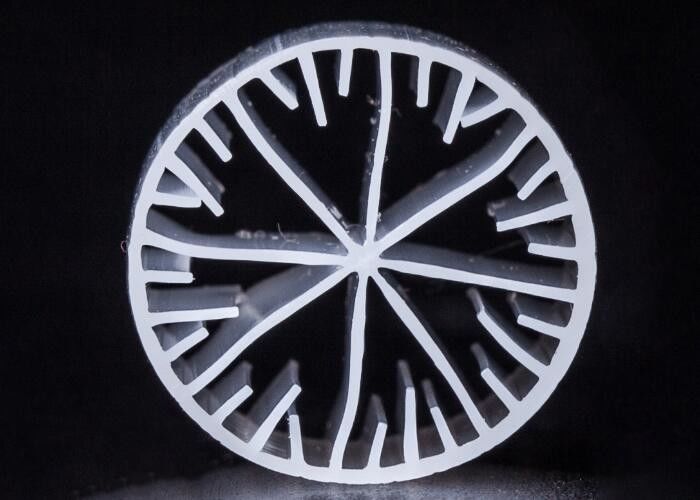

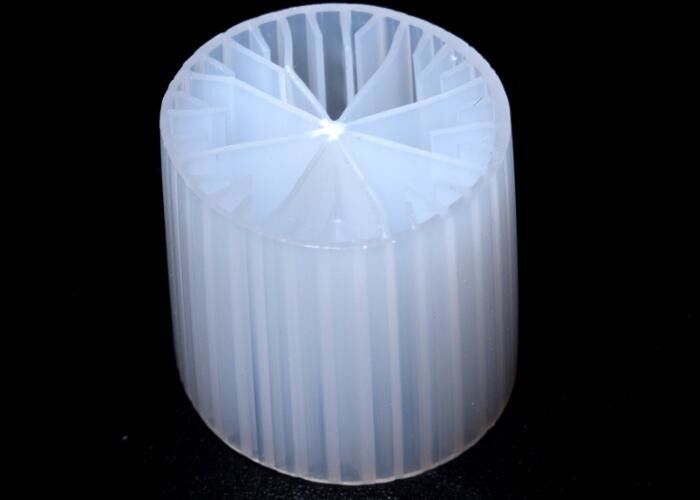

MBBR Technology and Biofilm Carries
MBBR technology is based on the biofilm principle with an active biofilm growing on small specially designed plastic carriers that are kept suspended in the reactor. The technology utilizes the advantages of both activated sludge and other biofilm systems (e.g. biofilters, biorotors etc.) without being restrained by their disadvantages.
The carriers are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the carriers are suspended in water.
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >1.038,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
| PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |
