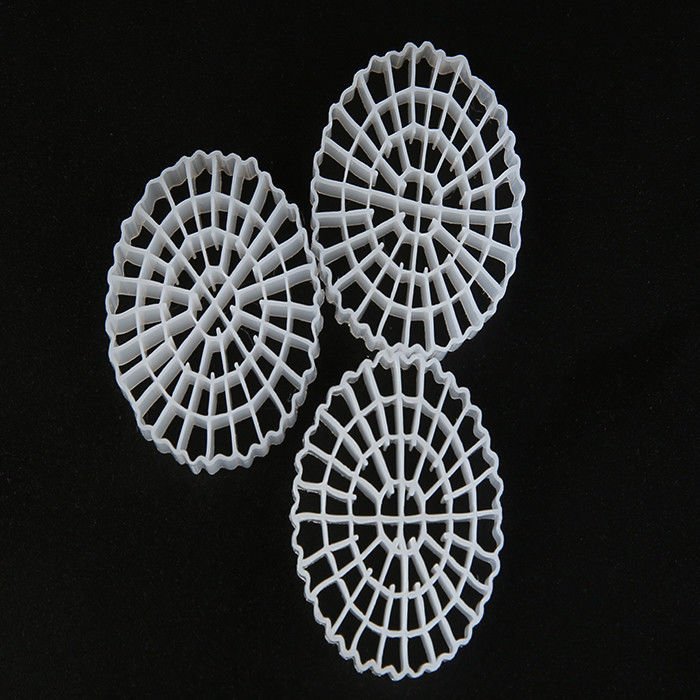

Virgin HDPE Material MBBR Plastic Bio Filter Media With Good Surface Area

Virgin HDPE Material MBBR Plastic Bio Filter Media With Good Surface Area

    • Virgin HDPE Material MBBR Plastic Bio Filter Media With Good Surface Area
    • Virgin HDPE Material MBBR Plastic Bio Filter Media With Good Surface Area
  • Virgin HDPE Material MBBR Plastic Bio Filter Media With Good Surface Area

    Product Details:

    Place of Origin: China
    Brand Name: smallboss
    Certification: SGS, FDA, ISO9001
    Model Number: PE10

    Payment & Shipping Terms:

    Minimum Order Quantity: 5cbm
    Price: discuss personally
    Packaging Details: woven bag
    Delivery Time: as your requirement
    Payment Terms: L/C, T/T
    Supply Ability: 230cbm per day
    Contact Now
    Detailed Product Description
    Surface Area: 1200m2/m3 Material: HDPE
    Density: 0.96-0.98g/cm3 Color: White
    Size: 25*4mm Package: Woven Bag

    Virgin HDPE Material MBBR Filter Media With White Color And Good Surface Area

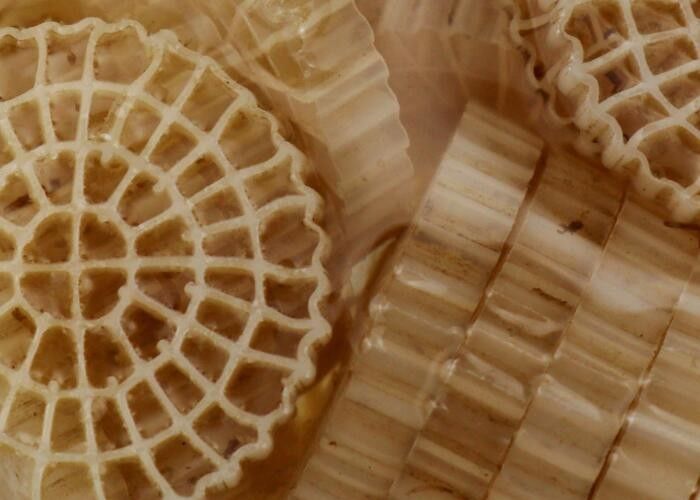

    The core of the MBBR technology are the biofilm carriers. They are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culturea when the carriers are suspended in water.

    Small Boss has developed several types of carriers with different shape, size and surface area. This gives us the flexibility to use the best suitable carrier depending on wastewater characteristics, pretreatment, discharge standards and available volumes. Currently we have ten different types of carriers



    Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
    (days)
    Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
    PE01 Φ12×9 >800 5-15 400-1200 <65 ≥10 >660,000
    PE02 Φ11×7 >900 5-15 400-1200 <65 ≥10 >1.038,000
    PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥10 >100,000
    PE04 Φ16×10 >800 5-15 400-1200 <65 ≥10 >3340,000
    PE05 Φ25×12 >500 5-15 400-1200 <65 ≥10 >135,000
    PE06 Φ25×12 >500 5-15 400-1200 <65 ≥10 >97000
    PE07 Φ35×18 >350 5-15 300-800 <65 ≥10 >33000
    PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥10 >2000000
    PE09 Φ15×15 >900 5-15 500-1400 <65 ≥10 >230,000
    PE10 Φ25×8 >1200 5-15 500-1400 <65 ≥10 >140,000



    MBBR Technology
    Technical Details
    The aerated MBBR uses, as the activated sludge process, the whole volume of an open tank. It is defined as a biofilm system, as the biomass is growing on carriers that move freely within the reactor volume and are kept within the reactors by a sieve at the reactor outlet. The system can be used either for aerobic or anoxic processes. In aerobic processes the biofilm carriers are kept in suspension by the agitation created by air from aeration diffusers, while in anoxic processes a mixer keep the carriers in movement. A schematic of the principle in an implementation of the WOCK OLIVER MBBR technology is shown below





    Small Boss MBBR Filter Media Advantage

    • Rapid carrier bio film formation mechanism
    • Super decarburization, ammonia nitrogen removal capacity
    • Excellent resistance to shock load performance
    • Flexible way of engineering application
    • Simple operation and maintenance
    • Long service life-100% virgin HDPE material.
    • Deoxidation and phosphorus removal effect is good



    Small Boss MBBR Filter Media Application

    • The Sewage plant upgrade project , improve the standard and quantity
    • New sewage treatment project of MBBR and Biological Aerated Filter process
    • Biochemical treatment of reclaimed water
    • River regulation denitrification and phosphorus removal
    • Aquaculture in addition to ammonia nitrogen, water purification
    • Biological filter media is used for biological deodorization tower
