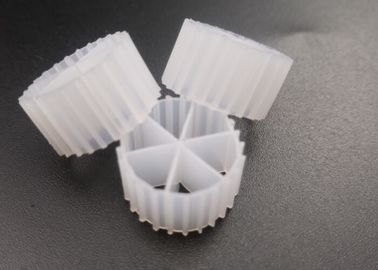

MBBR Biofilm Carrier Bio Filter Media For Sewage Treatment System

MBBR Biofilm Carrier Bio Filter Media For Sewage Treatment System

  • MBBR Biofilm Carrier Bio Filter Media For Sewage Treatment System
MBBR Biofilm Carrier Bio Filter Media For Sewage Treatment System
Product Details:
Place of Origin: China
Brand Name: Smallboss
Certification: SGS, FDA, ISO9001
Model Number: PE04
Payment & Shipping Terms:
Minimum Order Quantity: 5cbm
Price: Negotiation
Packaging Details: woven bag
Delivery Time: As your requirement qty
Payment Terms: T/T, L/C
Supply Ability: 230m³ per day
Contact Now
Detailed Product Description
Material: FDA Group HDPE Color: Nature White
Size: 16*10 Holes: 6
Density: Customized Surface Area: >800m2/m3
Usuage: Pond, Fish Farming, Aquarium Function: Wastewater Treatment
Application: Municipal,Power,Printing,,Aquaculture Port: Shanghai
High Light:

biofilm reactors for wastewater treatment


biofilter media









Item No. Density Diameter* Height Surface Area Holes Service life
XLB01 0.96-0.98g/cm3 12mm*9mm >800m2/m3 4 rooms

More than

20 years

XLB02 11mm*7mm >900m2/m3 4 rooms

More than

20 years

XLB03 10mm*7mm >1000m2/m3 5 rooms

More than

20 years

XLB04 16mm*10mm >800m2/m3 6 rooms

More than

20 years

XLB05 25mm*10mm >500m2/m3 19 rooms

More than

20 years

XLB06 1.02-1.05g/cm3 25mm*10mm >800m2/m3 19 rooms

More than

20 years

XLB07 0.96-0.98g/cm3 35mm*18mm >350m2/m3 19 rooms

More than

20 years

XLB08 1.02-1.05g/cm3 5mm*10mm >3500m2/m3 7 rooms

More than

20 years

XLB09 0.96-0.98g/cm3 15mm*15mm >900m2/m3 40 rooms

More than

20 years

XLB10 25mm*5mm >1200m2/m3 64 rooms

More than

20 years




The Secret to Small Boss MBBR Filter Media


1.Rapid carrier biofilm formation mechanism


Specific trace element vector into and special surface treatment process, the microorganisms in water on the carrier attached rapidly and rapid

propagation of growth, biofilm formation in different water conditions, and biofilm schedule differences, generally, the hang film need 3-15 days.


2.Super decarburization, ammonia nitrogen removal capacity


Carrier provide a safe and comfortable environment for microbial breeding, Biological variety, because of no sludge age limit, nitrifying bacteria

have also been large-scale breeding, microbial population huge is dissolved organic compounds and ammonia decomposition.


3.Excellent resistance to shock load performance


Efficient processing capacity, its ability to remove organic matter 2-5 times higher than that of other traditional methods, high concentrations of

biomass and diversity of biological fungus, strong resistance to impact load capacity


4.Application of flexible and diverse way


Different stages can be applied to the good nitrogen, anaerobic, anoxic process, only need to handle effect by adding Small Boss MBBR filter media

can easily obtain satisfactory result.


5.Simple operation and maintenance


Without support, put Small Boss MBBR filter media in the pool directly, and it can save the return sludge, avoiding sludge bulking, come-up and

loss, convenient to operate and maintain.


6.Long service life


Through a special process modification, Small Boss MBBR filter media have a good resistance, UV resistance, strong toughness, not easy to

aging and embrittlement, and it has a long service life.


7.Deoxidation and phosphorus removal effect is good


Due to the biological film have a strong digestive ability, water ammonia nitrogen can be completely transformed into nitrate and ammonia,

the denitrification can give full play to the maximum, denitrification more thoroughly.Meanwhile biofilm huge phosphorus phosphate material

flora water thoroughly absorbed, and through the biological film off into the sedimenta- tion tank and eventually to the sludge discharged

system, the phosphorus removal effect more obvious.





Why Choose us?



MBBR Biofilm Carrier Bio Filter Media For Sewage Treatment System 0


We are a comprehensive hi-tech enterprise established in 1992 specializing in the R&D, production and

sale of environmental friendly products and MBBR biological filter Media. Small Boss company has cooper- ated

with Singapore Biological Filter Media Research Institute, Shanghai University and Wuhan University to carry out

research and develop- ment of water treatment filter media since 2004. After years of efforts, Small Boss has

successfully developed a number of new Biological Filter Medias and obtained 68 national patents for the products

including 12 patents for MBBR biological filter media.


At present, Small Boss Company has over 100 high speed production lines and it’ s capable of carrying out all

processes independently from material, mold ,production process, cutting, packaging, so as to ensure uniform quality.

After years of research and development and compari- son test of several hundred polymer materials regarding their

biocompatibility and hydrophilcity, Small Boss eventually determined to choose a kind of HDPE material as the main

ingredient of the biological additive and by modifying the nature with special formula and adding trace elements such as

hydrophilic groups, better performance was achieved such as excellent mechanical performance, great shock resistance,

appropriate density, better hydrophilic performance and prolonged service life. In the meantime, Small Boss has carried out

improvement and innovation of the mechanical equipment and production technology to make MBBR Filter Media particles

better meet the needs of biological growth, provide more physical attachment points for microorganisms, facilitate 3D flow of

Filter Media in water and promote rapid attachment, reproduction and growth of microorganisms in water to form a biological



After ten years of Study and efforts of production of MBBR filter media, Small Boss has become the largest manufacturer of

MBBR Fitler Media in China,and Small Boss Filter Media has been exported to more than 60 countries all over the world including

America, Europe, Asian.
