Virgin MBBR Bio Media Heavy Size 5*10mm White Virgin HIPS Material Plastic Biocell

Virgin MBBR Bio Media Heavy Size 5*10mm White Virgin HIPS Material Plastic Biocell

  • Virgin MBBR Bio Media Heavy Size 5*10mm White Virgin HIPS Material Plastic Biocell
  • Virgin MBBR Bio Media Heavy Size 5*10mm White Virgin HIPS Material Plastic Biocell
  • Virgin MBBR Bio Media Heavy Size 5*10mm White Virgin HIPS Material Plastic Biocell
Virgin MBBR Bio Media Heavy Size 5*10mm White Virgin HIPS Material Plastic Biocell
Product Details:
Place of Origin: China
Brand Name: Smallboss
Certification: SGS, FDA, ISO9001
Model Number: PE08
Payment & Shipping Terms:
Minimum Order Quantity: 5 cubic meter
Price: discuss personally
Packaging Details: woven bag
Delivery Time: as your requirement qty
Payment Terms: T/T, L/C
Supply Ability: 80,000m³ per year
Contact Now
Detailed Product Description
Applicable Temperature: 5-60°C Packing Numbers: 2000000
Membrane-forming Time: 15-70% Dosing Ratio: 5*10mm
Density: 0.96-0.98 Hole Numbers: 7
High Light:

biofilm reactor

,

mbbr sewage treatment

MBBR Bio Media Heavy Size 5*10mm White Virgin HIPS Material Plastic Biocell For Industrial Sewage





product introduction



MBBR filter media is a novel biologically active carrier, it adopts scientific formula, depending

on the nature of water, blending a variety of beneficial microorganisms grow quickly attached trace elements in polymer materials, through a special process modification, constructed, with more than large surface area, hydrophilic, high biological activity, biofilm fast, good effect, good impact resistance.



Main feature:


Special formula and production technology, accelerating biological film formation ;
Larger effective surface area, obtaining more microorganism;

By bio-film decomposing technology, saving sludge return process;

High-efficiency in denitrification and dephosphorization, improving the water quality;

Lower energy consumption, saving space and shorten technology process.



Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
(days)
Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
PE01 Φ12×9 >800 5-15 400-1200 <65 ≥10 >660,000
PE02 Φ11×7 >900 5-15 400-1200 <65 ≥10 >1.038,000
PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥10 >100,000
PE04 Φ16×10 >800 5-15 400-1200 <65 ≥10 >3340,000
PE05 Φ25×12 >500 5-15 400-1200 <65 ≥10 >135,000
PE06 Φ25×12 >500 5-15 400-1200 <65 ≥10 >97000
PE07 Φ35×18 >350 5-15 300-800 <65 ≥10 >33000
PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥10 >2000000
PE09 Φ15×15 >900 5-15 500-1400 <65 ≥10 >230,000
PE10 Φ25×8 >1200 5-15 500-1400 <65 ≥10 >140,000



Small Boss MBBR Filter Media Application



The Sewage plant upgrade project , improve the standard and quantity



New sewage treatment project of MBBR and Biological Aerated Filter process



Biochemical treatment of reclaimed water



River regulation denitrification and phosphorus removal.



Aquaculture in addition to ammonia nitrogen, water purification



Biological filter media is used for biological deodorization tower



Simple operation and maintenance



Without support, put filter media in the pool directly, and it can save the return sludge, avoiding sludge bulking, come-up and loss, convenient to operate and maintain.



Small Boss MBBR Biofilm Carries


We supply a range of biofilter media, This product is sold by the cubic metre. These products are suited to fluidized or moving bed tank systems. These are also called "Biofilm Reactor (MBBR)"systems and are used for treatment of water and wastewater.

Self cleaning due to turbulence:
Due to the turbulent movement of the biofilter media in suspension,the filter media is self-cleaning ,requiring no maintenance.This allows the filter to reach optimum effeciveness without the disturbance of periodic maintenance,avoiding unnecessary loss of bacteria within the filter.This allows stable,low levels of ammonia and nitrite within the water.
The first few of these products are similar to the patented kaldnes media used in fish farming and waste treatment .The design creates an environment for effective nitrification to take place .Twater flow is created by aeration tha circulates the media throughout the vessel .This high suface area of these products traslates into a small physical area needed for the biofiltration unit.
Due to vigorous mixing of the kaldnes-like media through aeration,the media is self-cleaning,Requiring no maintenance.This allows the filter to reach optimum effectiveness
Periodic maintenance is not necessary,preventing the unnecessary loss of bacteria and subsequent ammonia and nitrite spikes in the system.

Media volume needed:
with good turbulence and aeration, a feed rate of between 0.25 kgs and 0.75 kgs of 40% protein food per day requires 50 litres of media.

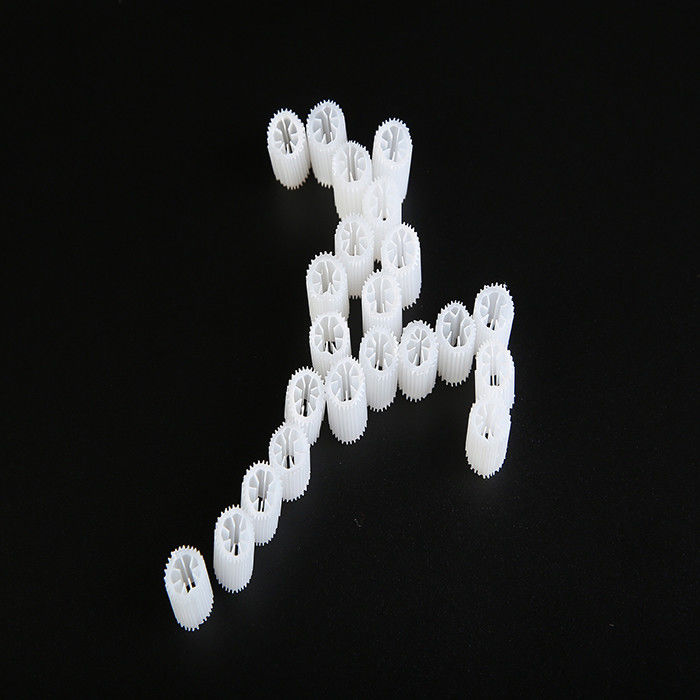

Virgin MBBR Bio Media Heavy Size 5*10mm White Virgin HIPS Material Plastic Biocell 0

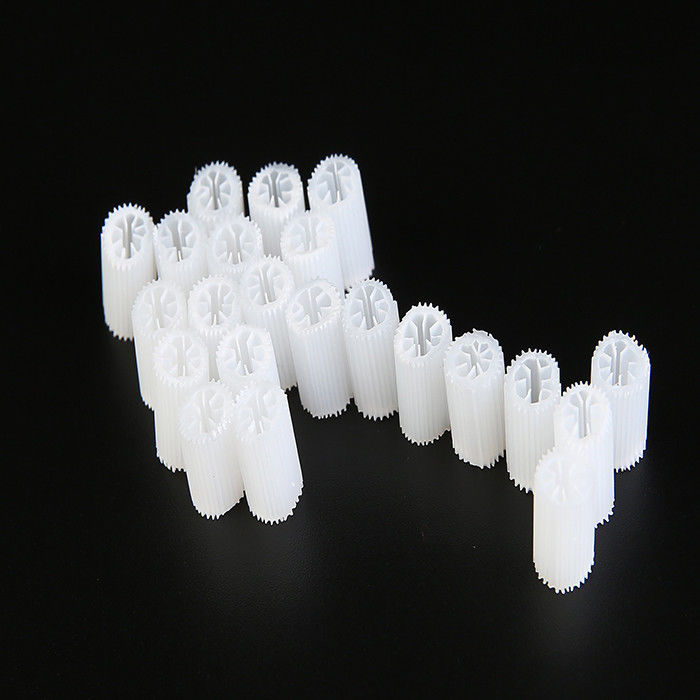

Virgin MBBR Bio Media Heavy Size 5*10mm White Virgin HIPS Material Plastic Biocell 1
