25mm X 10mm Size Plastic Filter Media Virgin HDPE Material MBBR Bio Balls

25mm X 10mm Size Plastic Filter Media Virgin HDPE Material MBBR Bio Balls

    • 25mm X 10mm  Size Plastic Filter Media Virgin HDPE Material MBBR Bio Balls
    • 25mm X 10mm  Size Plastic Filter Media Virgin HDPE Material MBBR Bio Balls
  • 25mm X 10mm  Size Plastic Filter Media Virgin HDPE Material MBBR Bio Balls

    Product Details:

    Place of Origin: China
    Brand Name: Smallboss
    Certification: SGS, FDA, ISO9001
    Model Number: PE05

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 cubic meter
    Price: discuss personally
    Packaging Details: woven bag
    Delivery Time: as your requirement qty
    Payment Terms: T/T, L/C
    Supply Ability: 80,000m³ per year
    Contact Now
    Detailed Product Description
    Port: Shanghai Or Ningbo Hole Numbers: 19 Pcs
    Surface Area: 500m2/m3 Applicable Temperture: 5-60℃
    Color: White Density: 0.96-0.98g/cm3

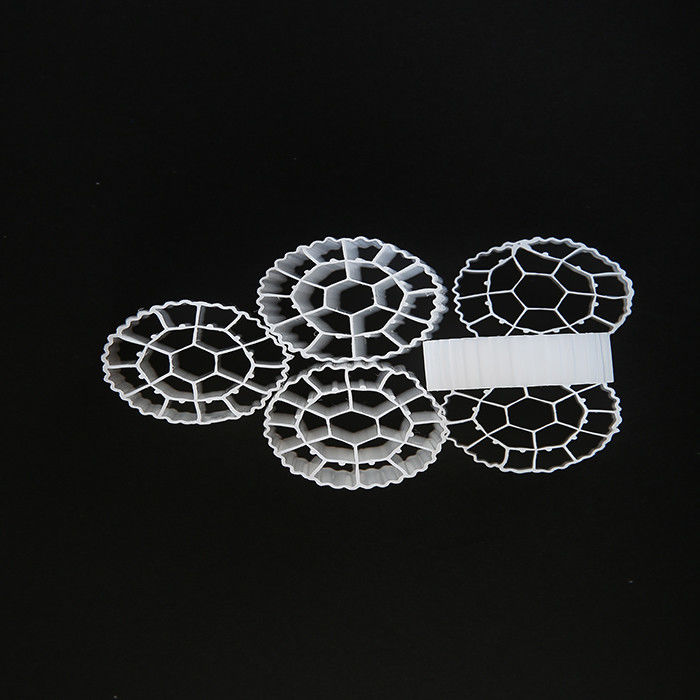

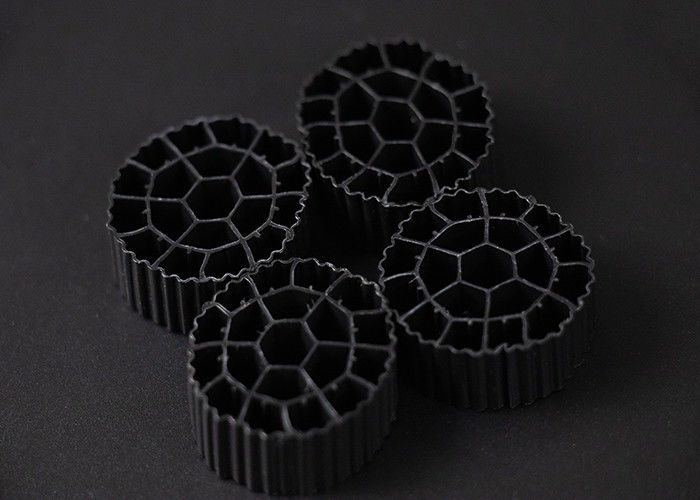

    25mm X 10mm Size Plastic Filter Media Virgin HDPE Material MBBR Bio Balls





    Small Boss MBBR Biofilm Carries
    We supply a range of biofilter media, This product is sold by the cubic metre. These products are suited to fluidized or moving bed tank systems. These are also called "Biofilm Reactor (MBBR)"systems and are used for treatment of water and wastewater.

    Self cleaning due to turbulence:
    Due to the turbulent movement of the biofilter media in suspension,the filter media is self-cleaning ,requiring no maintenance.This allows the filter to reach optimum effeciveness without the disturbance of periodic maintenance,avoiding unnecessary loss of bacteria within the filter.This allows stable,low levels of ammonia and nitrite within the water.
    The first few of these products are similar to the patented kaldnes media used in fish farming and waste treatment .The design creates an environment for effective nitrification to take place .Twater flow is created by aeration tha circulates the media throughout the vessel .This high suface area of these products traslates into a small physical area needed for the biofiltration unit.
    Due to vigorous mixing of the kaldnes-like media through aeration,the media is self-cleaning,Requiring no maintenance.This allows the filter to reach optimum effectiveness

    Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
    (days)
    Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
    PE01 Φ12×9 >800 5-15 400-1200 <65 ≥10 >660,000
    PE02 Φ11×7 >900 5-15 400-1200 <65 ≥10 >1.038,000
    PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥10 >100,000
    PE04 Φ16×10 >800 5-15 400-1200 <65 ≥10 >3340,000
    PE05 Φ25×12 >500 5-15 400-1200 <65 ≥10 >135,000
    PE06 Φ25×12 >500 5-15 400-1200 <65 ≥10 >97000
    PE07 Φ35×18 >350 5-15 300-800 <65 ≥10 >33000
    PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥10 >2000000
    PE09 Φ15×15 >900 5-15 500-1400 <65 ≥10 >230,000
    PE10 Φ25×8 >1200 5-15 500-1400 <65 ≥10 >140,000





    The core of the MBBR technology are the biofilm carriers.

    They are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culturea when the carriers are suspended in water.

    Small Boss has developed several types of carriers with different shape, size and surface area. This gives us the flexibility to use the best suitable carrier depending on wastewater characteristics, pretreatment, discharge standards and available volumes. Currently we have ten different types of carriers



    FAQ



    Q: Can I order a sample?

    A: Of course, forthe existing model we have,our factory would like to offer one or two pieces sample to customer,for customized model making shall be consulted.

    Q: Are you factory/manufacturer of trader?

    A: We are direct factory who owns production lines and workers.Everything is flexible and there is noty need to worry about extra charges by the middle man or trader.

    Q: What's your delivery time?

    A: For stocks, we can send the goods to loading port within 7 days after receiving your deposit .For producting period,it usually needs about 15 days-30 days after receiving the deposit.

    Q: What's your payment terms?

    A: We accept 100%T/T (Telegraphic transfer) in advance for small orders(value under USD 2,000).For some big orders,we can accept 30% deposit,70% balance before shipment.

    For very small orders, we can accept Western union payment. We are doing the best to match your demand.

    Q: What payment method you can accept?

    Generally, we accept T/T,L/C,Western Union and Money Gram.
