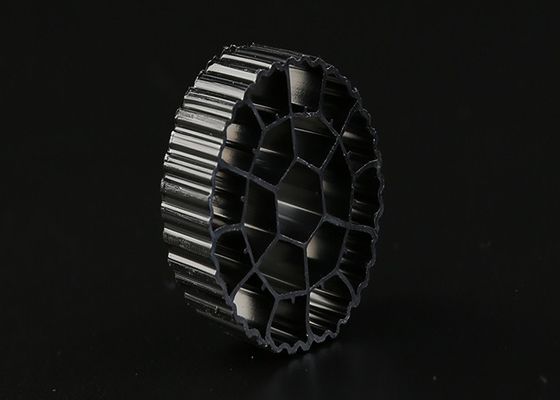

Black Color Plastic MBBR Kaldnes K1 MBBR Bio Media HDPE Material 25mm X 12mm Size

product introduction

MBBR filter media is a novel biologically active carrier, it adopts scientific formula, depending

on the nature of water, blending a variety of beneficial microorganisms grow quickly attached trace elements in polymer materials, through a special process modification, constructed, with more than large surface area, hydrophilic, high biological activity, biofilm fast, good effect, good impact resistance.

Main feature:

Special formula and production technology, accelerating biological film formation ;
Larger effective surface area, obtaining more microorganism;

By bio-film decomposing technology, saving sludge return process;

High-efficiency in denitrification and dephosphorization, improving the water quality;

Lower energy consumption, saving space and shorten technology process.

Small Boss MBBR Filter Media ITEM

Item	PE01	PE02	PE03	PE04	PE05	PE06	PE07	PE08	PE09	PE64
pictures
size	12*9mm	11*7mm	10*7mm	16*10mm	25*10mm	25*10mm	35*18mm	5*10mm	15*15mm	25*4mm
Density (g/cm3)	0.94-0.97	0.94-0.97	0.94-0.97	0.94-0.97	0.94-0.97	0.94-0.97	0.94-0.97	1.02-1.05	0.94-0.97	0.94-0.97
Surface Area (m2/m3)	＞800	＞900	＞1000	＞800	＞500	＞500	＞350	＞3500	＞900	＞1200

Small Boss MBBR Biofilm Carries

We supply a range of biofilter media, This product is sold by the cubic metre. These products are suited to fluidized or moving bed tank systems. These are also called "Biofilm Reactor (MBBR)"systems and are used for treatment of water and wastewater.

Self cleaning due to turbulence:
Due to the turbulent movement of the biofilter media in suspension,the filter media is self-cleaning ,requiring no maintenance.This allows the filter to reach optimum effeciveness without the disturbance of periodic maintenance,avoiding unnecessary loss of bacteria within the filter.This allows stable,low levels of ammonia and nitrite within the water.
The first few of these products are similar to the patented kaldnes media used in fish farming and waste treatment .The design creates an environment for effective nitrification to take place .Twater flow is created by aeration tha circulates the media throughout the vessel .This high suface area of these products traslates into a small physical area needed for the biofiltration unit.
Due to vigorous mixing of the kaldnes-like media through aeration,the media is self-cleaning,Requiring no maintenance.This allows the filter to reach optimum effectiveness
Periodic maintenance is not necessary,preventing the unnecessary loss of bacteria and subsequent ammonia and nitrite spikes in the system.

Media volume needed:
with good turbulence and aeration, a feed rate of between 0.25 kgs and 0.75 kgs of 40% protein food per day requires 50 litres of media.
