| Brand Name: | Small boss |
| Model Number: | PE04 |
| MOQ: | 5 cubic meter |
| Price: | discuss personally |
| Packaging Details: | woven bag |
| Payment Terms: | T/T, L/C |

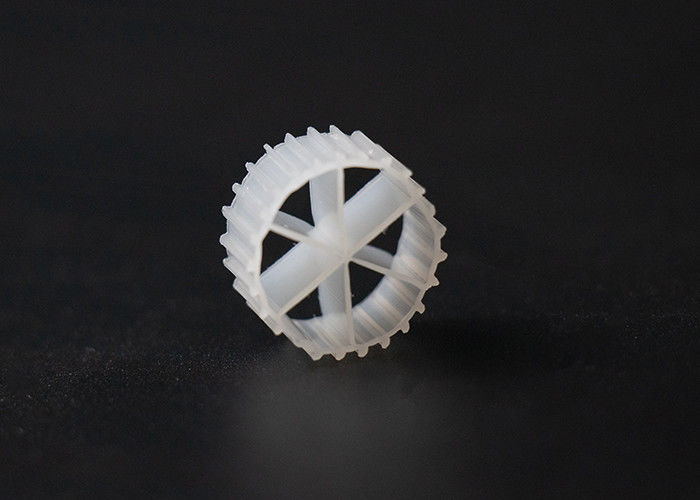

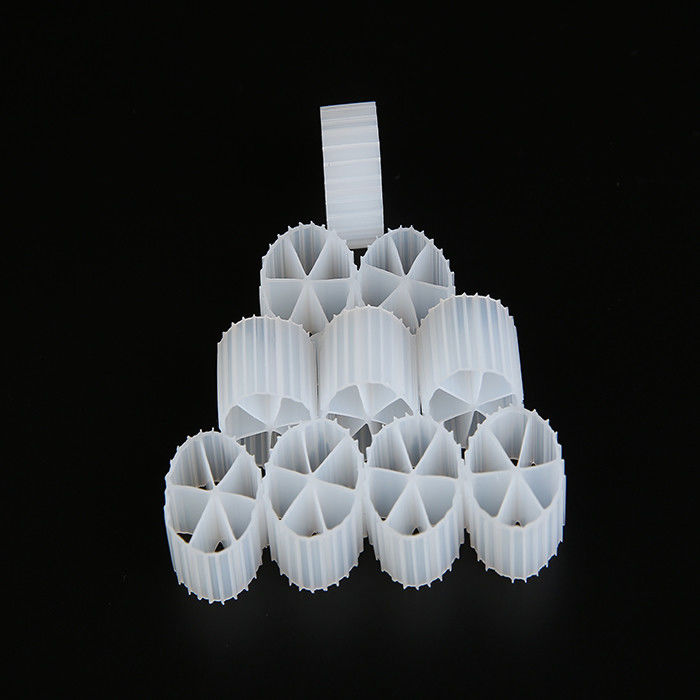

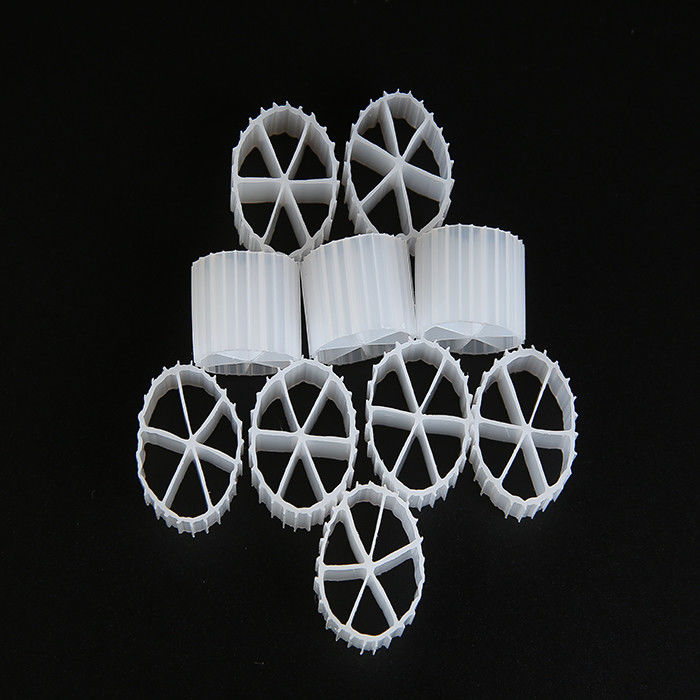

Eco Friendly MBBR Bio Media Long Life Span Floating Filter Media
Tongxiang SmallBoss Special Plastic Products Co., Ltd. is a comprehensive hi-tech enterprise established in 1992 specializing in the research and development, production and sale of environmental friendly products and MBBR biological filter media.Small Bosscompany has cooperated with Singapore Biological Filter Media Research Institute, Shanghai University and Wuhan University to carry out research and development of water treatment filler since 2004. After years of efforts, Small Boss has successfully developed a number of new Biological Filter Medias and obtained 75 national patents for the products including 12 patents for MBBR biological filter media
Small Boss MBBR Filter Media Advantage
Small Boss MBBR Filter Media Application
MBBR Technology and Biofilm Carries
MBBR technology is based on the biofilm principle with an active biofilm growing on small specially designed plastic carriers that are kept suspended in the reactor. The technology utilizes the advantages of both activated sludge and other biofilm systems (e.g. biofilters, biorotors etc.) without being restrained by their disadvantages.
The carriers are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the carriers are suspended in water.
Solutions based on MBBR technology is mainly used in the following applications:
+ For new plants, especially those requiring a small footprint and easy operation, for BOD/COD and nitrogen removal
+ As a high loading system in front of existing biological treatment - roughing reactor
+ To increase the amount of nitrifying bacteria in existing activated sludge system using the WOCK OLIVER carrier in a hybrid plant to meet ammonia limits
+ To implement post-treatment to existing plants for process improvements
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥15 | >630,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥15 | >930,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥15 | >990,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥15 | >260,000 |
| PE05 | Φ25×10 | >500 | 5-15 | 400-1200 | <65 | ≥15 | >118,000 |
| PE06 | Φ25×10 | >500 | 5-15 | 400-1200 | <65 | ≥15 | >118,000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥15 | >33,000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥15 | >154,000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥15 | >230,000 |
| PE64 | Φ25×4 | >1200 | 5-15 | 500-1400 | <65 | ≥15 | >228,750 |
|
|
