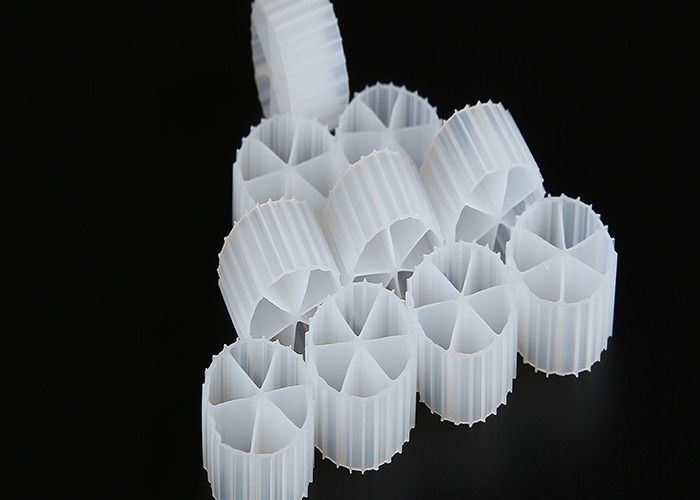

Self Cleaning MBBR Filter Media Moving Bed Biofilm Reactor 20 Year Life Span

Self Cleaning MBBR Filter Media Moving Bed Biofilm Reactor 20 Year Life Span

  • Self Cleaning MBBR Filter Media Moving Bed Biofilm Reactor 20 Year Life Span
  • Self Cleaning MBBR Filter Media Moving Bed Biofilm Reactor 20 Year Life Span
Self Cleaning MBBR Filter Media Moving Bed Biofilm Reactor 20 Year Life Span
Product Details:
Place of Origin: China
Brand Name: Small boss
Certification: SGS, FDA, ISO9001
Model Number: PE04
Payment & Shipping Terms:
Minimum Order Quantity: 5 cubic meter
Price: discuss personally
Packaging Details: woven bag
Delivery Time: as your requirement qty
Payment Terms: T/T, L/C
Supply Ability: 230m³ per day
Contact Now
Detailed Product Description
Material: HDPE Life Span: 20 Year
Size: 16*10mm Color: White
Density: 0.94-0.97g/cm3 Port: Ningbo Or Shanghai
High Light:

biofilm reactor

,

mbbr sewage treatment

Self Cleaning MBBR Filter Media Moving Bed Biofilm Reactor 20 Year Life Span





Small Boss MBBR Biofilm Carries
We supply a range of biofilter media, This product is sold by the cubic metre. These products are suited to fluidized or moving bed tank systems. These are also called "Biofilm Reactor (MBBR)"systems and are used for treatment of water and wastewater.

Self cleaning due to turbulence:
Due to the turbulent movement of the biofilter media in suspension,the filter media is self-cleaning ,requiring no maintenance.This allows the filter to reach optimum effeciveness without the disturbance of periodic maintenance,avoiding unnecessary loss of bacteria within the filter.This allows stable,low levels of ammonia and nitrite within the water.
The first few of these products are similar to the patented kaldnes media used in fish farming and waste treatment .The design creates an environment for effective nitrification to take place .Twater flow is created by aeration tha circulates the media throughout the vessel .This high suface area of these products traslates into a small physical area needed for the biofiltration unit.
Due to vigorous mixing of the kaldnes-like media through aeration,the media is self-cleaning,Requiring no maintenance.This allows the filter to reach optimum effectiveness
Periodic maintenance is not necessary,preventing the unnecessary loss of bacteria and subsequent ammonia and nitrite spikes in the system.

Media volume needed:
with good turbulence and aeration, a feed rate of between 0.25 kgs and 0.75 kgs of 40% protein food per day requires 50 litres of media.



Small Boss MBBR Filter Media ITEM

Item PE01 PE02 PE03 PE04 PE05 PE06 PE07 PE08 PE09 PE64
pictures Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 0 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 1 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 2 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 3 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 4 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 5 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 6 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 7 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 8 Saving Space MBBR biopipe Fliter Media PE63 For Waste Water Treatment / RAS With White Color A²/O technology 9
size 12*9mm 11*7mm 10*7mm 16*10mm 25*10mm 25*10mm 35*18mm 5*10mm 15*15mm 25*4mm

Density

(g/cm3)

0.94-0.97 0.94-0.97 0.94-0.97 0.94-0.97 0.94-0.97 0.94-0.97 0.94-0.97 1.02-1.05 0.94-0.97 0.94-0.97

Surface Area

(m2/m3)

>800 >900 >1000 >800 >500 >500 >350 >3500 >900 >1200



Density:0.94g/cm3~0.97g/cm3



The core of the MBBR technology are the biofilm carriers. They are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culturea when the carriers are suspended in water.

Small Boss has developed several types of carriers with different shape, size and surface area. This gives us the flexibility to use the best suitable carrier depending on wastewater characteristics, pretreatment, discharge standards and available volumes. Currently we have ten different types of carriers


Small Boss MBBR Filter Media Advantage

  • Rapid carrier bio film formation mechanism
  • Super decarburization, ammonia nitrogen removal capacity
  • Excellent resistance to shock load performance
  • Flexible way of engineering application
  • Simple operation and maintenance
  • Long service life-100% virgin HDPE material.
  • Deoxidation and phosphorus removal effect is good



Small Boss MBBR Filter Media Application

  • The Sewage plant upgrade project , improve the standard and quantity
  • New sewage treatment project of MBBR and Biological Aerated Filter process
  • Biochemical treatment of reclaimed water
  • River regulation denitrification and phosphorus removal
  • Aquaculture in addition to ammonia nitrogen, water purification
  • Biological filter media is used for biological deodorization tower

Self Cleaning MBBR Filter Media Moving Bed Biofilm Reactor 20 Year Life Span 10
