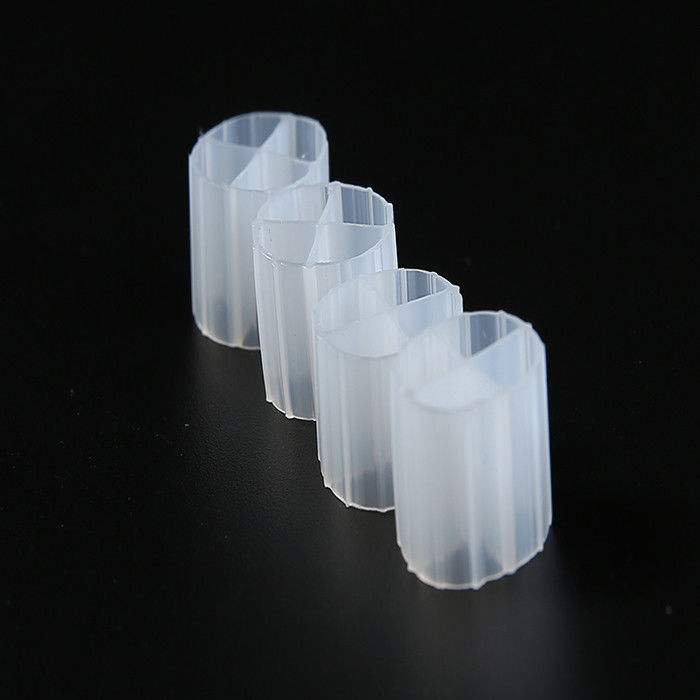

High Efficiency White Color Plastic Material K1 Filter Media For Waste Water Treatment

High Efficiency White Color Plastic Material K1 Filter Media For Waste Water Treatment

    • High Efficiency White Color Plastic Material K1 Filter Media For Waste Water Treatment
    • High Efficiency White Color Plastic Material K1 Filter Media For Waste Water Treatment
  • High Efficiency White Color Plastic Material K1 Filter Media For Waste Water Treatment

    Product Details:

    Place of Origin: China
    Brand Name: Smallboss
    Certification: SGS, FDA, ISO9001
    Model Number: PE01

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 cubic meter
    Price: discuss personally
    Packaging Details: woven bag
    Delivery Time: as your requirement qty
    Payment Terms: T/T, L/C
    Supply Ability: 80,000m³ per year
    Contact Now
    Detailed Product Description
    Porosity: >85% Material: HDPE
    Density: 0.96-0.98g/cm3 Surface Area: 800m2/m3
    Size: 12*9mm Applicable Temperture: 5-60℃

    High Efficiency White Color Plastic Material K1 Filter Media For Waste Water Treatment





    Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
    (days)
    Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
    PE01 Φ12×9 >800 5-15 400-1200 <65 ≥10 >660,000
    PE02 Φ11×7 >900 5-15 400-1200 <65 ≥10 >1.038,000
    PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥10 >100,000
    PE04 Φ16×10 >800 5-15 400-1200 <65 ≥10 >3340,000
    PE05 Φ25×12 >500 5-15 400-1200 <65 ≥10 >135,000
    PE06 Φ25×12 >500 5-15 400-1200 <65 ≥10 >97000
    PE07 Φ35×18 >350 5-15 300-800 <65 ≥10 >33000
    PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥10 >2000000
    PE09 Φ15×15 >900 5-15 500-1400 <65 ≥10 >230,000
    PE10 Φ25×8 >1200 5-15 500-1400 <65 ≥10 >140,000



    The core of the MBBR technology are the biofilm carriers.



    They are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culturea when the carriers are suspended in water.

    Small Boss has developed several types of carriers with different shape, size and surface area. This gives us the flexibility to use the best suitable carrier depending on wastewater characteristics, pretreatment, discharge standards and available volumes. Currently we have ten different types of carriers.



    Small Boss MBBR Biofilm Carries


    We supply a range of biofilter media, This product is sold by the cubic metre. These products are suited to fluidized or moving bed tank systems. These are also called "Biofilm Reactor (MBBR)"systems and are used for treatment of water and wastewater.

    Self cleaning due to turbulence:


    Due to the turbulent movement of the biofilter media in suspension,the filter media is self-cleaning ,requiring no maintenance.This allows the filter to reach optimum effeciveness without the disturbance of periodic maintenance,avoiding unnecessary loss of bacteria within the filter.This allows stable,low levels of ammonia and nitrite within the water.
    The first few of these products are similar to the patented kaldnes media used in fish farming and waste treatment .The design creates an environment for effective nitrification to take place .Twater flow is created by aeration tha circulates the media throughout the vessel .This high suface area of these products traslates into a small physical area needed for the biofiltration unit.
    Due to vigorous mixing of the kaldnes-like media through aeration,the media is self-cleaning,Requiring no maintenance.This allows the filter to reach optimum effectiveness
    Periodic maintenance is not necessary,preventing the unnecessary loss of bacteria and subsequent ammonia and nitrite spikes in the system.

    Media volume needed:


    with good turbulence and aeration, a feed rate of between 0.25 kgs and 0.75 kgs of 40% protein food per day requires 50 litres of media.

    High Efficiency White Color Plastic Material K1 Filter Media For Waste Water Treatment
