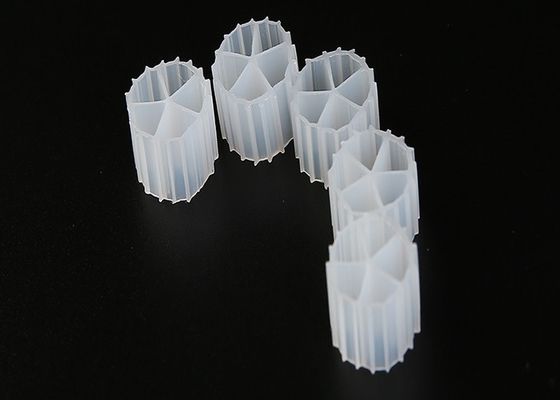

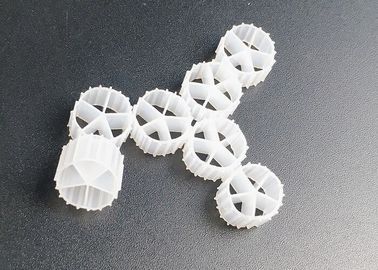

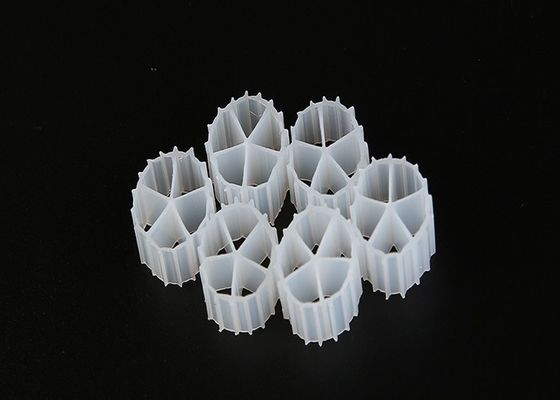

Sewage Moving Bed Biocell Filter Media Lower Energy Consumption 10mm X 7mm Size

Sewage Moving Bed Biocell Filter Media Lower Energy Consumption 10mm X 7mm Size

Product introduction

MBBR filter media is a novel biologically active carrier, it adopts scientific formula, depending

on the nature of water, blending a variety of beneficial microorganisms grow quickly attached trace elements in polymer materials, through a special process modification, constructed, with more than large surface area, hydrophilic, high biological activity, biofilm fast, good effect, good impact resistance.

Small Boss MBBR Filter Media Advantage

Rapid carrier bio film formation mechanism

Super decarburization, ammonia nitrogen removal capacity

Excellent resistance to shock load performance

Flexible way of engineering application

Simple operation and maintenance

Long service life-100% virgin HDPE material.

Deoxidation and phosphorus removal effect is good

Small Boss MBBR Filter Media Application

The Sewage plant upgrade project , improve the standard and quantity

New sewage treatment project of MBBR and Biological Aerated Filter process

Biochemical treatment of reclaimed water

River regulation denitrification and phosphorus removal.

Aquaculture in addition to ammonia nitrogen, water purification

Biological filter media is used for biological deodorization tower

MBBR Technology and Biofilm Carries
MBBR technology is based on the biofilm principle with an active biofilm growing on small specially designed plastic carriers that are kept suspended in the reactor. The technology utilizes the advantages of both activated sludge and other biofilm systems (e.g. biofilters, biorotors etc.) without being restrained by their disadvantages.
The carriers are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the carriers are suspended in water.
Solutions based on MBBR technology is mainly used in the following applications:

+ For new plants, especially those requiring a small footprint and easy operation, for BOD/COD and nitrogen removal

+ As a high loading system in front of existing biological treatment - roughing reactor

+ To increase the amount of nitrifying bacteria in existing activated sludge system using the WOCK OLIVER carrier in a hybrid plant to meet ammonia limits

+ To implement post-treatment to existing plants for process improvement

Small Boss MBBR Filter Media ITEM

Item	PE01	PE02	PE03	PE04	PE05	PE06	PE07	PE08	PE09	PE64
pictures
size	12*9mm	11*7mm	10*7mm	16*10mm	25*10mm	25*10mm	35*18mm	5*10mm	15*15mm	25*4mm
Density (g/cm3)	0.94-0.97	0.94-0.97	0.94-0.97	0.94-0.97	0.94-0.97	0.94-0.97	0.94-0.97	1.02-1.05	0.94-0.97	0.94-0.97
Surface Area (m2/m3)	＞800	＞900	＞1000	＞800	＞500	＞500	＞350	＞3500	＞900	＞1200
