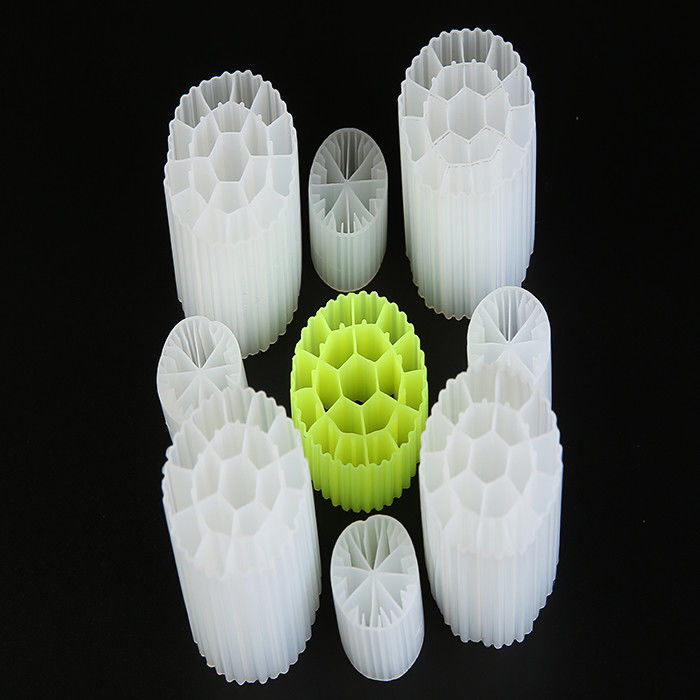

White Color MBBR Pond Biocell Filter Media Virgin HDPE Material And Floating For RAS
Small Boss Manufacture Brief Introduction
Tongxiang SmallBoss Special Plastic Products Co., Ltd. is a comprehensive hi-tech enterprise established in 1992 specializing in the research and development, production and sale of environmental friendly products and MBBR biological filter media.Small Bosscompany has cooperated with Singapore Biological Filter Media Research Institute, Shanghai University and Wuhan University to carry out research and development of water treatment filler since 2004. After years of efforts, Small Boss has successfully developed a number of new Biological Filter Medias and obtained 75 national patents for the products including 12 patents for MBBR biological filter media
MBBR Technology
Technical Details
The aerated MBBR uses, as the activated sludge process, the whole volume of an open tank. It is defined as a biofilm system, as the biomass is growing on carriers that move freely within the reactor volume and are kept within the reactors by a sieve at the reactor outlet. The system can be used either for aerobic or anoxic processes. In aerobic processes the biofilm carriers are kept in suspension by the agitation created by air from aeration diffusers, while in anoxic processes a mixer keep the carriers in movement. A schematic of the principle in an implementation of the WOCK OLIVER MBBR technology is shown below
Small Boss MBBR Filter Media Application
The Sewage plant upgrade project , improve the standard and quantity
New sewage treatment project of MBBR and Biological Aerated Filter process
Biochemical treatment of reclaimed water
River regulation denitrification and phosphorus removal.
Aquaculture in addition to ammonia nitrogen, water purification
Biological filter media is used for biological deodorization tower
Small Boss MBBR Filter Media Advantage
Small Boss MBBR Filter Media Application
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >1.038,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
| PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |
