Place of Origin:
China
Brand Name:
Smallboss
Certification:
SGS, FDA, ISO9001
Model Number:
PE01

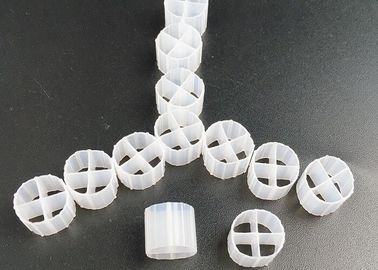

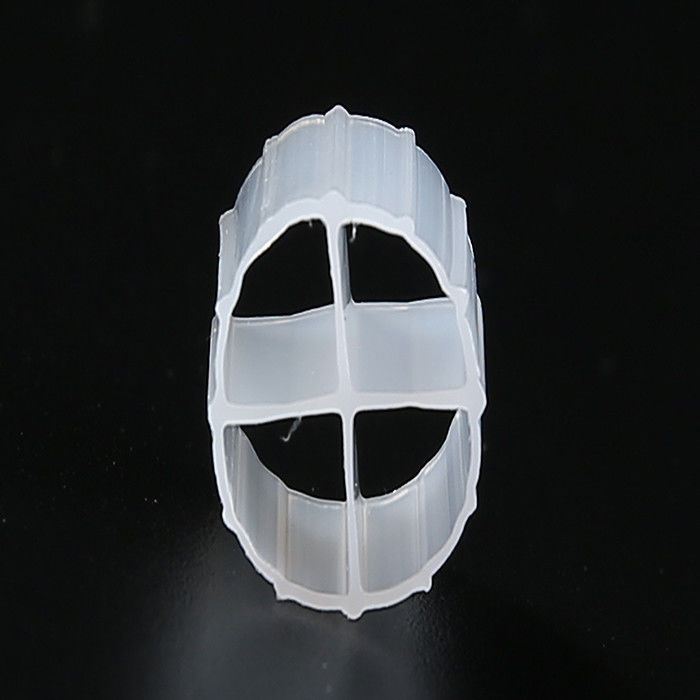

Long Life Span MBBR Filter Media 4 Holes Environmental Friendly
Small Boss MBBR Filter Media ITEM
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >1.038,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
| PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |
MBBR Technology
Technical Details
The aerated MBBR uses, as the activated sludge process, the whole volume of an open tank. It is defined as a biofilm system, as the biomass is growing on carriers that move freely within the reactor volume and are kept within the reactors by a sieve at the reactor outlet. The system can be used either for aerobic or anoxic processes. In aerobic processes the biofilm carriers are kept in suspension by the agitation created by air from aeration diffusers, while in anoxic processes a mixer keep the carriers in movement. A schematic of the principle in an implementation of the WOCK OLIVER MBBR technology is shown below
Small Boss MBBR Filter Media Advantage
1. Rapid carrier bio film formation mechanism
2. Super decarburization, ammonia nitrogen removal capacity
3. Excellent resistance to shock load performance
4. Flexible way of engineering application
5. Simple operation and maintenance
6. Long service life-100% virgin HDPE material.
7. Deoxidation and phosphorus removal effect is good
Small Boss MBBR Filter Media Application
1. The Sewage plant upgrade project , improve the standard and quantity
2. New sewage treatment project of MBBR and Biological Aerated Filter process
3. Biochemical treatment of reclaimed water
4. River regulation denitrification and phosphorus removal.
5. Aquaculture in addition to ammonia nitrogen, water purification
6. Biological filter media is used for biological deodorization tower
Small Boss MBBR Filter Media Package:
0.1m3/woven bag; 1m3/woven bag;1m3/carton .
20ft container could load 30m3. 40HC container load 70m3
