Tongxiang Small Boss Special Plastic Products Co., Ltd.
 |
| Place of Origin: | China |
| Brand Name: | Small boss |
| Certification: | SGS, FDA, ISO9001 |
| Model Number: | PE38 |
| Minimum Order Quantity: | 5 cubic meter |
|---|---|
| Price: | discuss personally |
| Packaging Details: | woven bag |
| Delivery Time: | as your requirement qty |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 80,000m³ per year |
| Surface Area: | 800m2/m3 | USE FOR: | Sewage Treatment |
|---|---|---|---|
| Size: | 25*4mm | Color: | White |
| Material: | HDPE | Port: | Shanghai Or Ningbo |
| High Light: | White Plastic Filter Media,HDPE Plastic Filter Media,800m2/M3 MBBR Bio Filter |
||

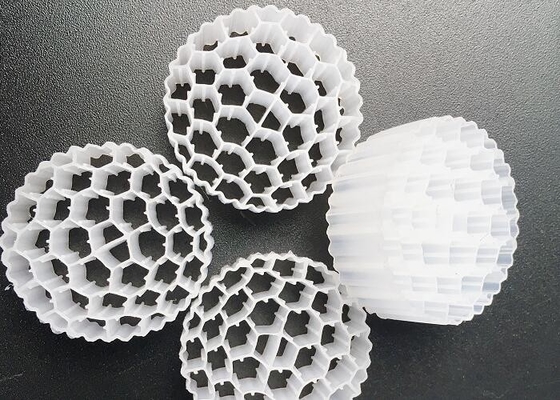

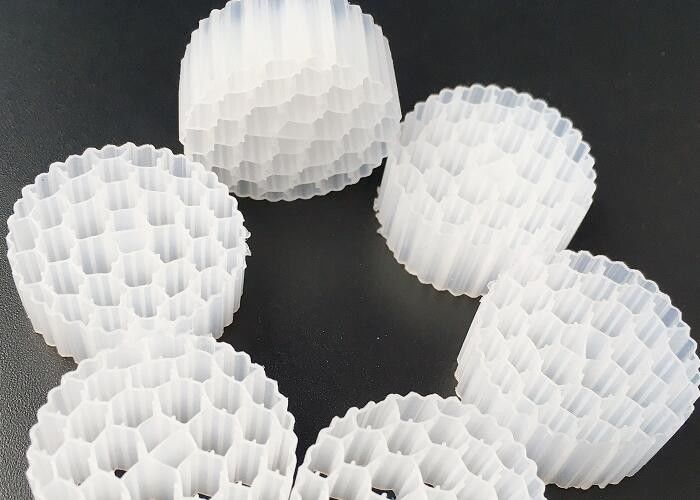

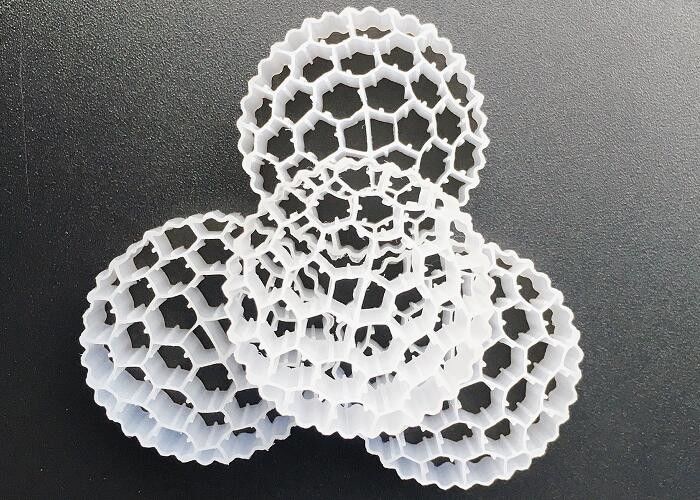

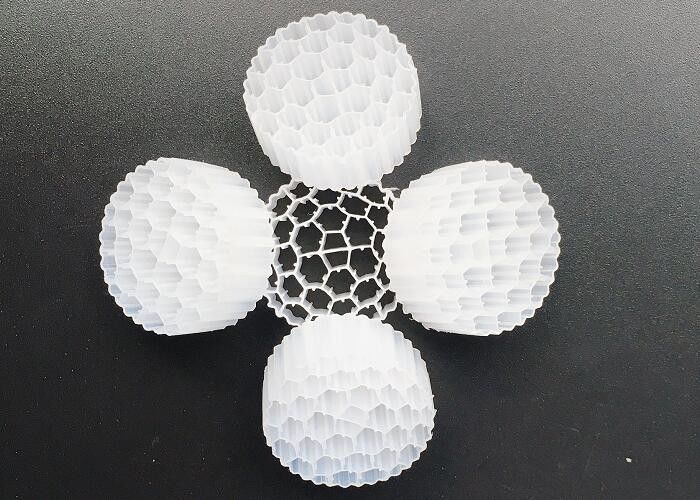

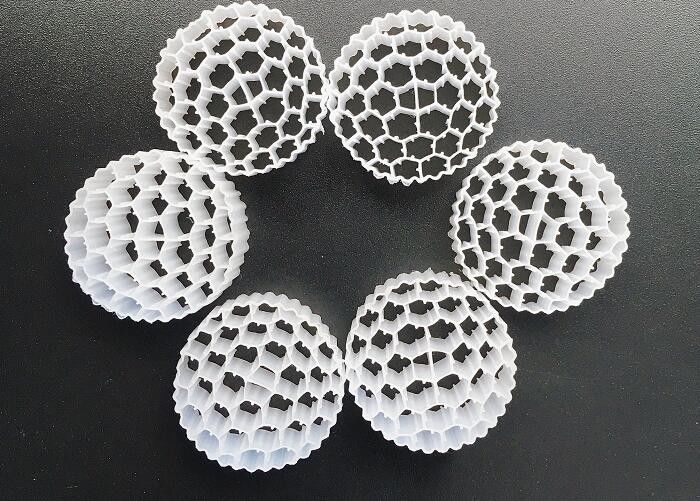

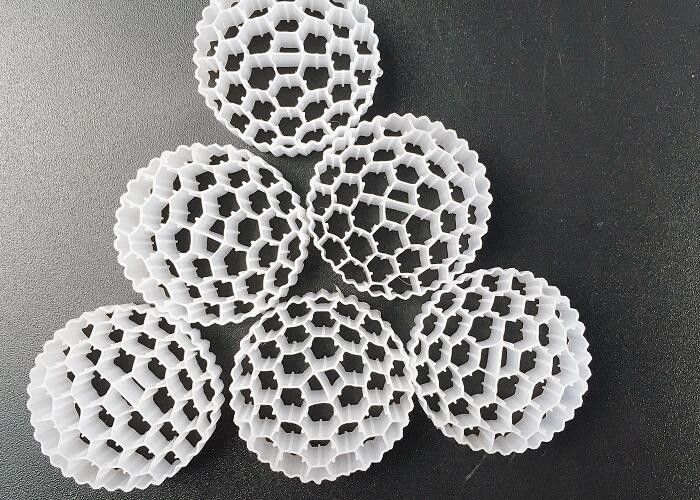

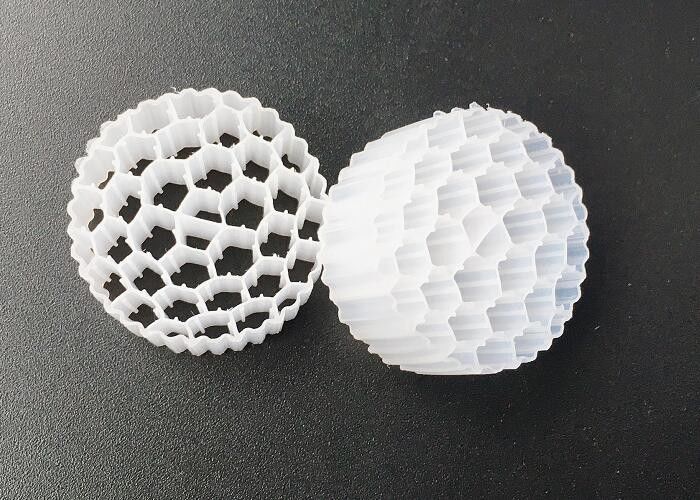

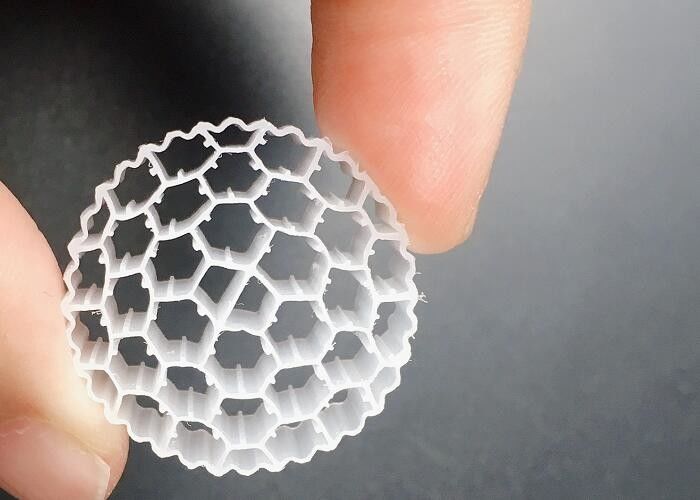

Activecell Biotube White Color 800m2/M3 MBBR Bio Filter Ball Shock Plastic Filter Media
High Surface Area K1 Filter Media White Virgin HDPE Material Energy Saving
The core of the MBBR technology are the biofilm carriers. They are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culturea when the carriers are suspended in water.
Small Boss has developed several types of carriers with different shape, size and surface area. This gives us the flexibility to use the best suitable carrier depending on wastewater characteristics, pretreatment, discharge standards and available volumes. Currently we have ten different types of carriers
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >1.038,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
| PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |
MBBR Technology
Technical Details
The aerated MBBR uses, as the activated sludge process, the whole volume of an open tank. It is defined as a biofilm system, as the biomass is growing on carriers that move freely within the reactor volume and are kept within the reactors by a sieve at the reactor outlet. The system can be used either for aerobic or anoxic processes. In aerobic processes the biofilm carriers are kept in suspension by the agitation created by air from aeration diffusers, while in anoxic processes a mixer keep the carriers in movement. A schematic of the principle in an implementation of the WOCK OLIVER MBBR technology is shown below
Small Boss MBBR Filter Media Advantage
Small Boss MBBR Filter Media Application
