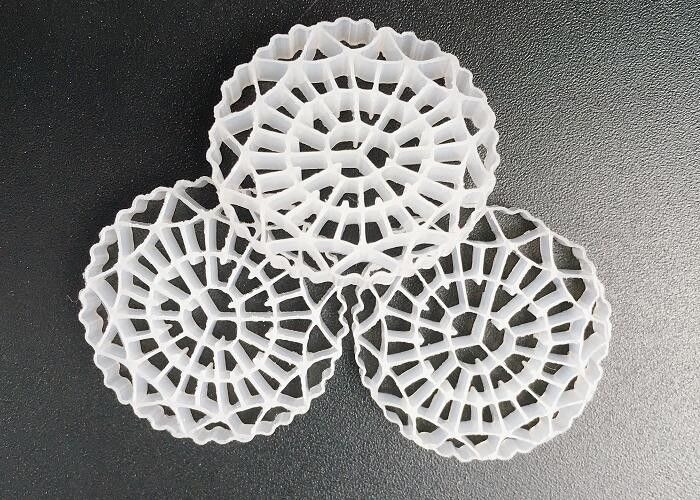

PE63 flower shape MBBR Bio Media With Big Surface Area 1200m2/m3 surface area

PE63 flower shape MBBR Bio Media With Big Surface Area 1200m2/m3 surface area

  • PE63 flower shape MBBR Bio Media With Big Surface Area 1200m2/m3 surface area
  • PE63 flower shape MBBR Bio Media With Big Surface Area 1200m2/m3 surface area
PE63 flower shape MBBR Bio Media With Big Surface Area 1200m2/m3 surface area
Product Details:
Place of Origin: CHINA
Brand Name: Small Boss
Certification: SGS, FDA
Model Number: PE63
Payment & Shipping Terms:
Minimum Order Quantity: 5cbm
Price: based on your qty
Packaging Details: woven bag
Delivery Time: as your requirement
Payment Terms: L/C, T/T
Supply Ability: 230cbm per day
Contact Now
Detailed Product Description
Surface Area: 1600m2/m3 Material: HDPE
Size: 25*4mm Color: White
Density: 0.96-0.98g/cm3 Port: Shanghai
High Light:

hdpe filter media

,

moving bed biofilter

K5 MBBR Bio Media With Big Surface Area With White Color And Virgin HDPE Material For RAS





MBBR Technology and Biofilm Carries
MBBR technology is based on the biofilm principle with an active biofilm growing on small specially designed plastic carriers that are kept suspended in the reactor. The technology utilizes the advantages of both activated sludge and other biofilm systems (e.g. biofilters, biorotors etc.) without being restrained by their disadvantages.
The carriers are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the carriers are suspended in water.
Solutions based on MBBR technology is mainly used in the following applications:

+ For new plants, especially those requiring a small footprint and easy operation, for BOD/COD and nitrogen removal

+ As a high loading system in front of existing biological treatment - roughing reactor

+ To increase the amount of nitrifying bacteria in existing activated sludge system using the WOCK OLIVER carrier in a hybrid plant to meet ammonia limits

+ To implement post-treatment to existing plants for process improvements





Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
(days)
Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
PE01 Φ12×9 >800 5-15 400-1200 <65 ≥10 >660,000
PE02 Φ11×7 >900 5-15 400-1200 <65 ≥10 >830,000
PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥10 >850,000
PE04 Φ16×10 >800 5-15 400-1200 <65 ≥10 >260,000
PE05 Φ25×12 >500 5-15 400-1200 <65 ≥10 >97,000
PE06 Φ25×12 >500 5-15 400-1200 <65 ≥10 >97000
PE07 Φ35×18 >350 5-15 300-800 <65 ≥10 >33000
PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥10 >2000000
PE09 Φ15×15 >900 5-15 500-1400 <65 ≥10 >230,000
PE63 Φ25×5 >1600 5-15 500-1400 <65 ≥10 >210,000



(Using Scope)

The sewage plant upgrade project , improve the standard and quantity

New sewage treatment project of MBBR and biological aerated filter process

Biochemical treatment of reclaimed water

River regulation denitrification and phosphorus removal

Aquaculture in addition to ammonia nitrogen, water purification

Biological filter media is used for biological deodorization tower





(Application industry: )

Municipal, Power, Pharmaceutical, Chemical, Electroplating, Metallurgy, Machinery, Papermaking, Printing and Dyeing, Medicine, Food processing, Aquaculture, with the continuous improvement and the deepening use of our products, Small Boss filter media will be used more and more widely.



Using Advantages

Rapid carrier biofilm formation mechanism

Specific trace element vector into and special surface treatment process, the microorganisms in water on the carrier attached rapidly and rapid propagation of growth, biofilm formation in different water conditions, and biofilm schedule differences, generally, the hang film need 3-15 days.



Super decarburization, ammonia nitrogen removal capacity

Carrier provide a safe and comfortable environment for microbial breeding, Biological variety, because of no sludge age limit, nitrifying bacteria have also been large-scale breeding, microbial population huge is dissolved organic compounds and ammonia decomposition.
