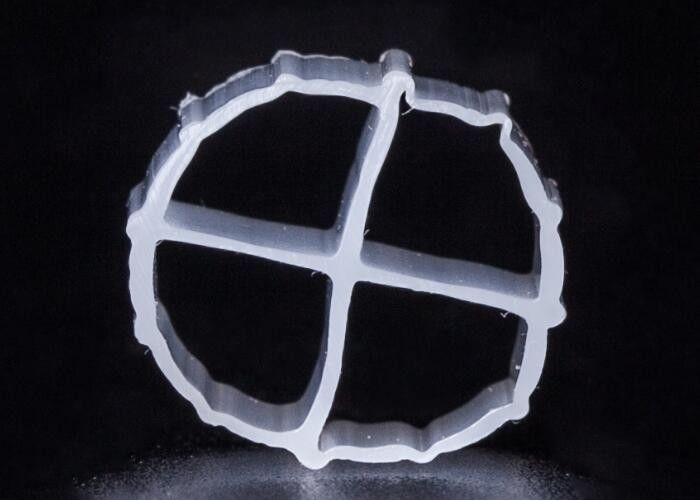

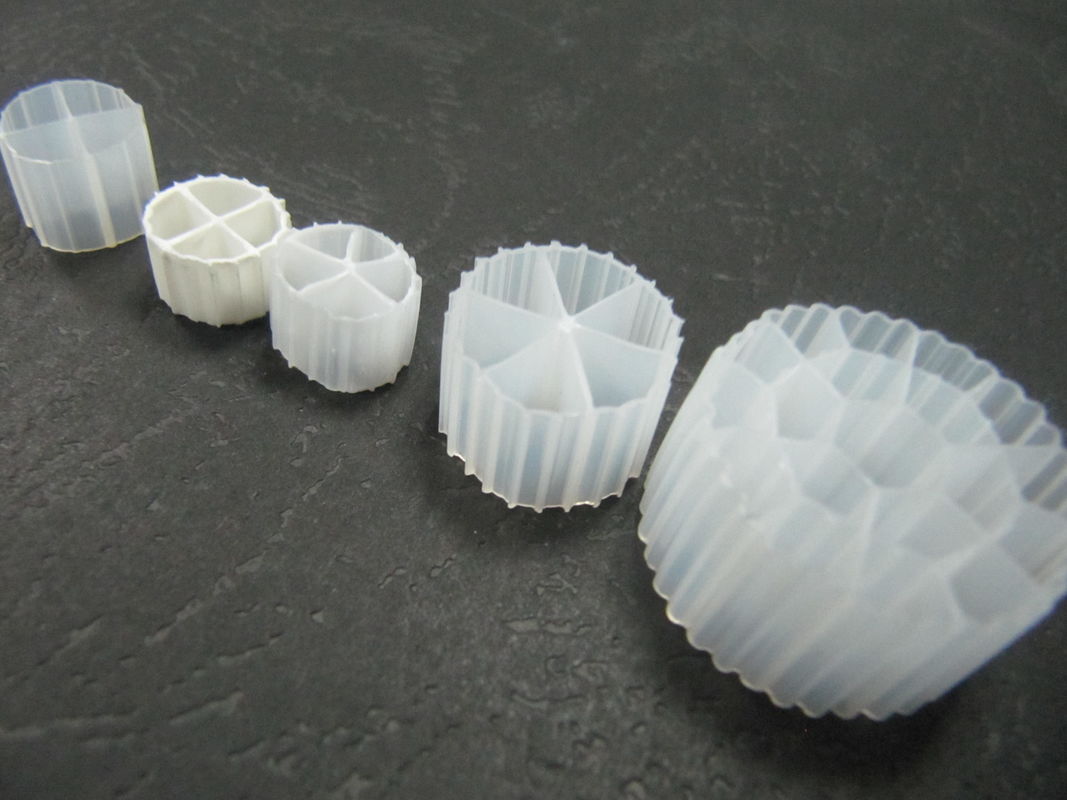

Good Surface Area MBBR Filter Media With White Color And Virgin HDPE Material For RAS

Good Surface Area MBBR Filter Media With White Color And Virgin HDPE Material For RAS

Good Surface Area MBBR Filter Media With White Color And Virgin HDPE Material For RAS

Product Details:

Place of Origin: CHINA
Brand Name: smallboss
Certification: SGS, FDA, ISO9001
Model Number: PE01

Payment & Shipping Terms:

Minimum Order Quantity: 5 cubic meter
Price: based on your qty
Packaging Details: woven bag
Delivery Time: as your requirement
Payment Terms: L/C, T/T
Supply Ability: 230cbm per day
Contact Now
Detailed Product Description
Port: Shanghai Material: HDPE
Size: 12*9mm Surface Area: More Than 800m2/m3
Color: White Package: Woven Bag

Good Surface Area MBBR Filter Media With White Color And Virgin HDPE Material For RAS




Tongxiang SmallBoss Special Plastic Products Co., Ltd. is a comprehensive hi-tech enterprise established in 1992 specializing in the research and development, production and sale of environmental friendly products and MBBR biological filter media.Small Bosscompany has cooperated with Singapore Biological Filter Media Research Institute, Shanghai University and Wuhan University to carry out research and development of water treatment filler since 2004. After years of efforts, Small Boss has successfully developed a number of new Biological Filter Medias and obtained 75 national patents for the products including 12 patents for MBBR biological filter media



Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
(days)
Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
PE01 Φ12×9 >800 5-15 400-1200 <65 ≥10 >660,000
PE02 Φ11×7 >900 5-15 400-1200 <65 ≥10 >1.038,000
PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥10 >100,000
PE04 Φ16×10 >800 5-15 400-1200 <65 ≥10 >3340,000
PE05 Φ25×12 >500 5-15 400-1200 <65 ≥10 >135,000
PE06 Φ25×12 >500 5-15 400-1200 <65 ≥10 >97000
PE07 Φ35×18 >350 5-15 300-800 <65 ≥10 >33000
PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥10 >2000000
PE09 Φ15×15 >900 5-15 500-1400 <65 ≥10 >230,000
PE10 Φ25×8 >1200 5-15 500-1400 <65 ≥10 >140,000



Main feature:
Special formula and production technology, accelerating biological film formation ;
Larger effective surface area, obtaining more microorganism;

By bio-film decomposing technology, saving sludge return process;

High-efficiency in denitrification and dephosphorization, improving the water quality;

Lower energy consumption, saving space and shorten technology process.



MBBR can be used in any kind of Pond, it’s no need special pond, and it can used the same pond as before if we change the system to MBBR treatment system, what’s the most important thing is MBBR can be full use of pond volume.

Accelerate the reaction rate significantly, compared with the activated sludge process, reaction efficiency 5 ~ 10 times

Simultaneous nitrification and denitrification process,it can be a good denitrification and phosphorus removal

It is no need bracket, just put in the MBBR filter media directly.

MBBR filter media packing free flow and cutting air bubbles in water, increase dissolved oxygen in water, save energy consumption



Good Surface Area MBBR Filter Media With White Color And Virgin HDPE Material For RAS
