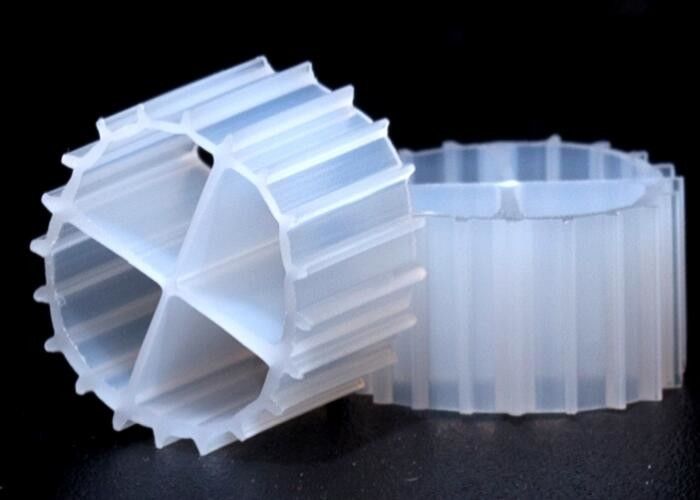

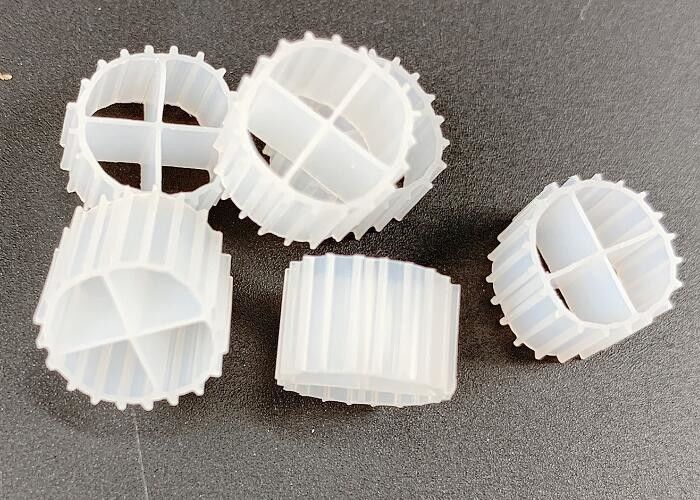

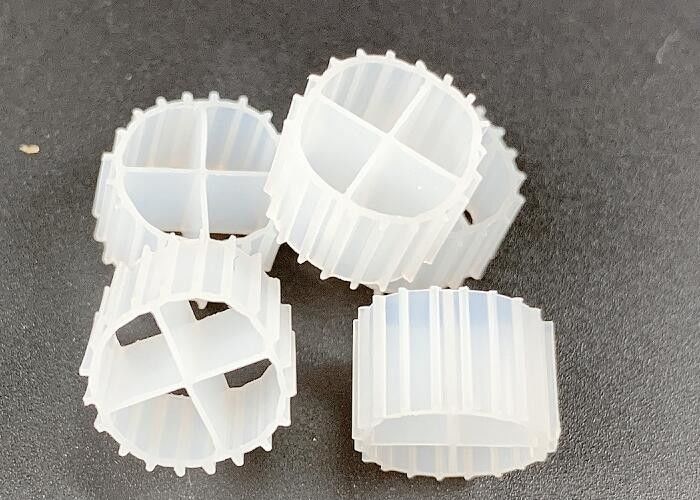

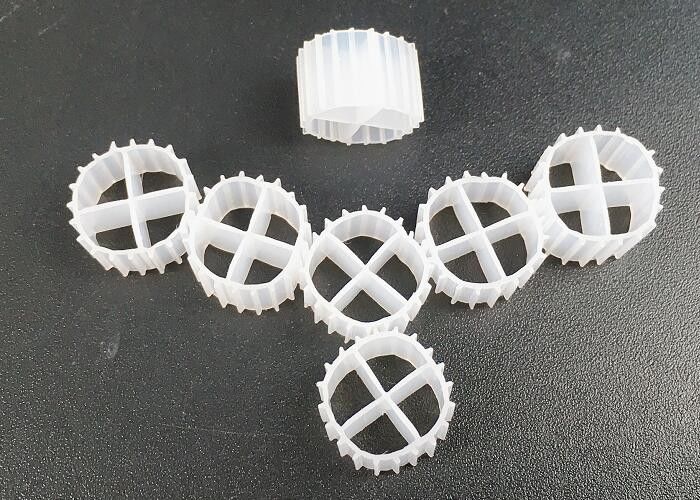

White Color MBBR Media Biofilm Carrier With Super Decarburization And Virgin HDPE Material

White Color MBBR Media Biofilm Carrier With Super Decarburization And Virgin HDPE Material

White Color MBBR Media Biofilm Carrier With Super Decarburization And Virgin HDPE Material

Product Details:

Place of Origin: CHINA
Brand Name: smallboss
Certification: SGS, FDA, ISO9001
Model Number: PE02

Payment & Shipping Terms:

Minimum Order Quantity: 5 cubic meter
Price: based on your qty
Packaging Details: woven bag
Delivery Time: as your requirement
Payment Terms: L/C, T/T
Supply Ability: 230cbm per day
Contact Now
Detailed Product Description
Length: 11mm DIA: 7mm
Color: White Material: HDPE
Port: Shanghai Hole: 4

White Color MBBR Filter Media With Super Decarburization And Virgin HDPE Material





Small Boss MBBR Filter Media ITEM

Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
(days)
Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
PE01 Φ12×9 >800 5-15 400-1200 <65 ≥10 >660,000
PE02 Φ11×7 >900 5-15 400-1200 <65 ≥10 >1.038,000
PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥10 >100,000
PE04 Φ16×10 >800 5-15 400-1200 <65 ≥10 >3340,000
PE05 Φ25×12 >500 5-15 400-1200 <65 ≥10 >135,000
PE06 Φ25×12 >500 5-15 400-1200 <65 ≥10 >97000
PE07 Φ35×18 >350 5-15 300-800 <65 ≥10 >33000
PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥10 >2000000
PE09 Φ15×15 >900 5-15 500-1400 <65 ≥10 >230,000
PE10 Φ25×8 >1200 5-15 500-1400 <65 ≥10 >140,000



Small Boss MBBR Biofilm Carries


We supply a range of biofilter media, This product is sold by the cubic metre. These products are suited to fluidized or moving bed tank systems. These are also called "Biofilm Reactor (MBBR)"systems and are used for treatment of water and wastewater.

Self cleaning due to turbulence:


Due to the turbulent movement of the biofilter media in suspension,the filter media is self-cleaning ,requiring no maintenance.This allows the filter to reach optimum effeciveness without the disturbance of periodic maintenance,avoiding unnecessary loss of bacteria within the filter.This allows stable,low levels of ammonia and nitrite within the water.
The first few of these products are similar to the patented kaldnes media used in fish farming and waste treatment .The design creates an environment for effective nitrification to take place .Twater flow is created by aeration tha circulates the media throughout the vessel .This high suface area of these products traslates into a small physical area needed for the biofiltration unit.
Due to vigorous mixing of the kaldnes-like media through aeration,the media is self-cleaning,Requiring no maintenance.This allows the filter to reach optimum effectiveness
Periodic maintenance is not necessary,preventing the unnecessary loss of bacteria and subsequent ammonia and nitrite spikes in the system.

Media volume needed:


with good turbulence and aeration, a feed rate of between 0.25 kgs and 0.75 kgs of 40% protein food per day requires 50 litres of media.

White Color MBBR Media Biofilm Carrier With Super Decarburization And Virgin HDPE Material
