Place of Origin:
China
Brand Name:
Small boss
Certification:
SGS, FDA, ISO9001
Model Number:
PE04

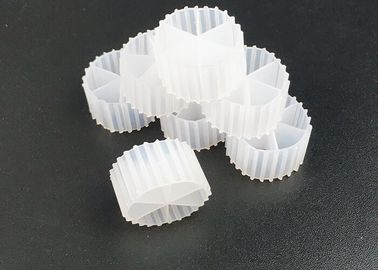

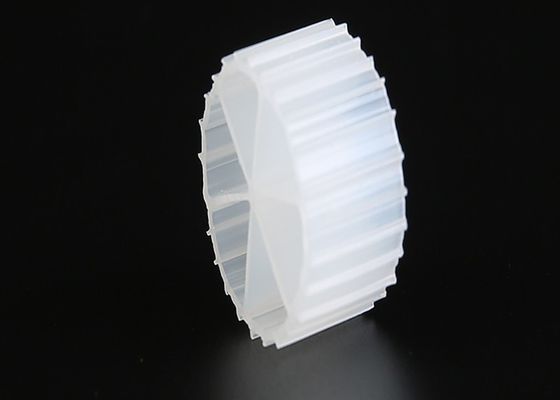

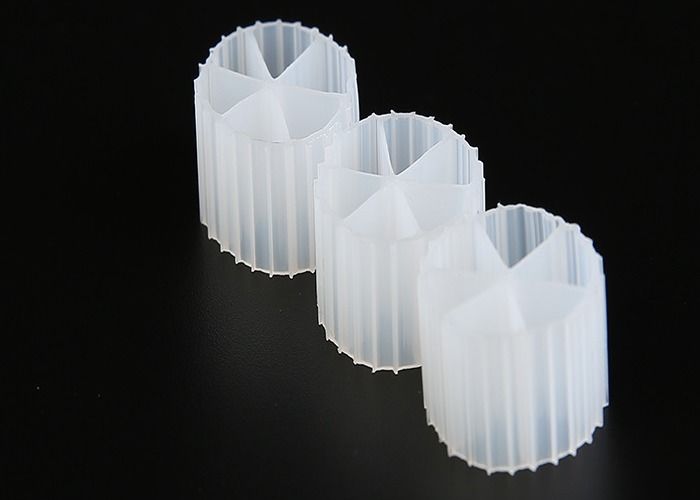

100% Virgin Polyethylene K1 Filter Media No Toxic K1 Micro Filter
Small Boss MBBR Core technology:
Special design of surface, stronger bio-film growth capacity;
Large specific surface area, high voidage, the more periphyton biomass;
Unique design of structure and shape according to hydromechanics, strong three-dimensional flow dynamics in the water;
Adding hydrophilic groups and other trace elements, the biofilm formation time only 3-15 days;
Excellent impact strength, strong gas shear capacity;
Without any holder, easy to cure, save energy and space.
(Using Scope)
The sewage plant upgrade project , improve the standard and quantity
New sewage treatment project of MBBR and biological aerated filter process
Biochemical treatment of reclaimed water
River regulation denitrification and phosphorus removal
Aquaculture in addition to ammonia nitrogen, water purification
Biological filter media is used for biological deodorization tower
(Application industry: )
Municipal, Power, Pharmaceutical, Chemical, Electroplating, Metallurgy, Machinery, Papermaking, Printing and Dyeing, Medicine, Food processing, Aquaculture, with the continuous improvement and the deepening use of our products, Small Boss filter media will be used more and more widely.
Using Advantages
1. Rapid carrier biofilm formation mechanism
Specific trace element vector into and special surface treatment process, the microorganisms in water on the carrier attached rapidly and rapid propagation of growth, biofilm formation in different water conditions, and biofilm schedule differences, generally, the hang film need 3-15 days.
2. Super decarburization, ammonia nitrogen removal capacity
Carrier provide a safe and comfortable environment for microbial breeding, Biological variety, because of no sludge age limit, nitrifying bacteria have also been large-scale breeding, microbial population huge is dissolved organic compounds and ammonia decomposition.
3. Excellent resistance to shock load performance
Efficient processing capacity, its ability to remove organic matter 2-5 times higher than that of other traditional methods, high concentrations of biomass and diversity of biological fungus, strong resistance to impact load capacity
4. Flexible way of engineering application
Different stages can be applied to the good nitrogen, anaerobic, anoxic process, only need to handle effect by adding the filter media can easily obtain satisfactory result.
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥15 | >630,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥15 | >930,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥15 | >990,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥15 | >260,000 |
| PE05 | Φ25×10 | >500 | 5-15 | 400-1200 | <65 | ≥15 | >118,000 |
| PE06 | Φ25×10 | >500 | 5-15 | 400-1200 | <65 | ≥15 | >118,000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥15 | >33,000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥15 | >154,000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥15 | >230,000 |
| PE64 | Φ25×4 | >1200 | 5-15 | 500-1400 | <65 | ≥15 | >228,750 |
