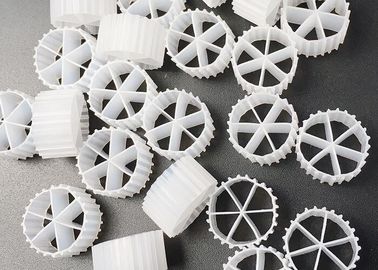

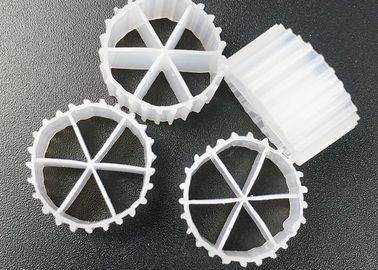

Fish Farming White Mbbr Filter Biocell Water Treatment 16*10mm Big Area

Fish Farming White Mbbr Filter Biocell Water Treatment 16*10mm Big Area

  • Fish Farming White Mbbr Filter Biocell Water Treatment 16*10mm Big Area
  • Fish Farming White Mbbr Filter Biocell Water Treatment 16*10mm Big Area
Fish Farming White Mbbr Filter Biocell Water Treatment 16*10mm Big Area
Product Details:
Place of Origin: China
Brand Name: Small Boss
Certification: SGS, FDA, ISO9001
Model Number: PE04
Payment & Shipping Terms:
Minimum Order Quantity: 5cbm
Price: discuss personally
Packaging Details: woven bag
Delivery Time: as your requirement qty
Payment Terms: T/T, L/C
Supply Ability: 250m3 per day
Contact Now
Detailed Product Description
Service Life: 20 Years Height: 10MM
Port: Shanghai Or Ningbo Internal Diameter: 16MM
Material: HDPE Color: White
High Light:

plastic plant guards

,

plastic tree guards



MBBR Technology and Biofilm Carries
MBBR technology is based on the biofilm principle with an active biofilm growing on small specially designed plastic carriers that are kept suspended in the reactor. The technology utilizes the advantages of both activated sludge and other biofilm systems (e.g. biofilters, biorotors etc.) without being restrained by their disadvantages.
The carriers are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the carriers are suspended in water.



Specifications:

Model Size(mm) Specific Surface Area(m2/m3) Bio-film formation Duration
(days)
Nitrification Efficiency Preferential Temperature (ºC) Services life(years) Number of unites per m3
PE01 Φ12×9 >800 5-15 400-1200 <65 ≥20 >660,000
PE02 Φ11×7 >900 5-15 400-1200 <65 ≥20 >1.038,000
PE03 Φ10×7 >1000 5-15 400-1200 <65 ≥20 >100,000
PE04 Φ16×10 >800 5-15 400-1200 <65 ≥20 >3340,000
PE05 Φ25×12 >500 5-15 400-1200 <65 ≥20 >135,000
PE06 Φ25×12 >500 5-15 400-1200 <65 ≥20 >97000
PE07 Φ35×18 >350 5-15 300-800 <65 ≥20 >33000
PE08 Φ5×10 >3500 5-15 500-1400 <65 ≥20 >2000000
PE09 Φ15×15 >900 5-15 500-1400 <65 ≥20 >230,000
PE10 Φ25×8 >1200 5-15 500-1400 <65 ≥20 >140,000



Advantages:

1. Super decarburization, ammonia nitrogen removal capacity



Carrier provide a safe and comfortable environment for microbial breeding, Biological variety, because of no sludge age limit, nitrifying bacteria have also been large-scale breeding, microbial population huge is dissolved organic compounds and ammonia decomposition.



2. Excellent resistance to shock load performance



Efficient processing capacity, its ability to remove organic matter 2-5 times higher than that of other traditional methods, high concentrations of biomass and diversity of biological fungus, strong resistance to impact load capacity



3. Flexible way of engineering application



Different stages can be applied to the good nitrogen, anaerobic, anoxic process, only need to handle effect by adding the filter media can easily obtain satisfactory result.



4. Simple operation and maintenance



Without support, put filter media in the pool directly, and it can save the return sludge, avoiding sludge bulking, come-up and loss, convenient to operate and maintain.



5. Long service life



Through a special process modification, the filter media have a good resistance, UV resistance, strong toughness, not easy to aging and embrittlement, and it has a long service life.



Question:

Why did others hang the film faster after adding sucrose, is the pure HDPE material already eliminated?

Answer: No, it is not. With the addition of sucrose and other additives, it is true that the film will be fast, but after a long time, the loss of sucrose will cause the early attached microorganisms to fall off. It will also cause the quality of MBBR carriers to decline, the structure to be unstable, more easily broken, and increased costs. MBBR made of pure HDPE material will last for more than 15 years.

Fish Farming White Mbbr Filter Biocell Water Treatment 16*10mm Big Area 0Fish Farming White Mbbr Filter Biocell Water Treatment 16*10mm Big Area 1
