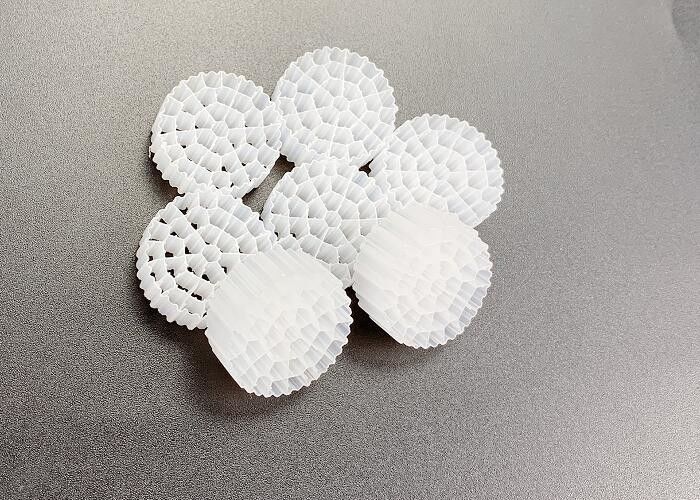

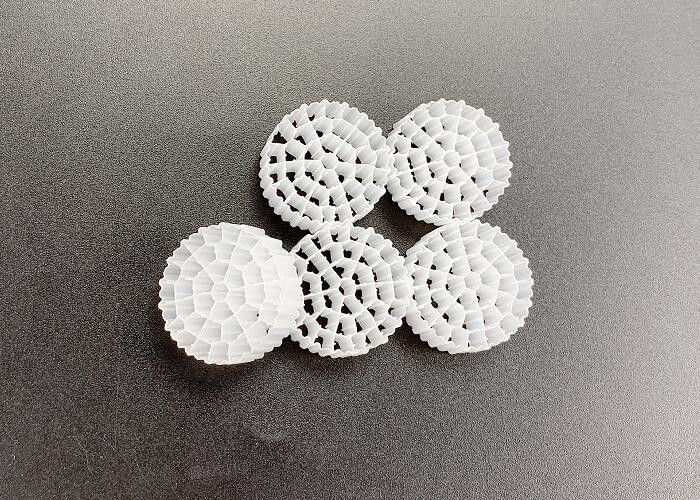

Wastewater Filter Media MBBR Moving Bed Biofilm Reactor HDPE

Wastewater Filter Media MBBR Moving Bed Biofilm Reactor HDPE

  • Wastewater Filter Media MBBR Moving Bed Biofilm Reactor HDPE
  • Wastewater Filter Media MBBR Moving Bed Biofilm Reactor HDPE
  • Wastewater Filter Media MBBR Moving Bed Biofilm Reactor HDPE
Wastewater Filter Media MBBR Moving Bed Biofilm Reactor HDPE
Product Details:
Place of Origin: China
Brand Name: Small boss
Certification: SGS, FDA, ISO9001
Model Number: PE37
Payment & Shipping Terms:
Minimum Order Quantity: 5 cubic meter
Price: discuss personally
Packaging Details: woven bag
Delivery Time: as your requirement qty
Payment Terms: T/T, L/C
Supply Ability: 80,000m³ per year
Contact Now
Detailed Product Description
Item No: PE37 Material: 100% Virgin HDPE
Color: Any Color Port: Shanghai Or Ningbo
Life Span: 15 Years Package: Woven Bag
MOQ: 5CBM Size: 25*10MM
High Light:

Wastewater Moving Bed Biofilm Reactor

,

HDPE Moving Bed Biological Reactor

,

FDA Moving Bed Biological Reactor

Wastewater filter media China factory directly MBBR moving bed biofilm reactor



The moving bed technology is based on biomass growth in plastic supports (carriers) moving inside the biological reactor by the agitation generated by aeration systems (aerobic reactors) or by mechanical stirring systems (in anoxic or anaerobic reactors). The carriers are made of recycled plastic material with density close to 1 gr/cm3; this allows them to move easily in the reactor even with filling percentages of 70%.

The biofilm formed on the carriers is more effective than the biological flocs that makes the moving bed reactors be smaller in volume than the active sludge reactors. The same growth of the biofilm onto the carriers makes the inner layers enter into anaerobiosis and makes some of that biofill drop. This suppose that the necessary biofilm is automatically generated by the load.

The solids or sludge loosed from the carriers are removed from the system by purging, not requiring any recirculation. As the extraction of the sludge from the reactor is automatic the operation of the plant is easier.

Small boss MBBR media PE37 technical data:

Model Size(mm) Specific
Surface
Area(m2/m3)
bio-film
formation
duration
(days)
Material preferential
temperature(°C)
Services
life(years)
Number of
unites per
m3
PE37 Φ25*10 >800 5-15 Virgin HDPE <65 ≥15 118,000



How does it work?

Bio Media Plus is designed to be slightly buoyant and move freely or remain static (still) in your filter. The bio-media provides the maximum surface area necessary to allow beneficial bacteria to colonize (grow) and remove ammonia and nitrites from your water. Removing ammonia and nitrites from your water is essential for healthy koi (fish). As the bio-media moves around in the filter chamber the bacteria go to work and start removing the ammonia and nitrites. When your bacteria mature Bio Media Plus is the perfect and most efficient way to remove ammonia and nitrites.

How is Bio Media Plus different and self cleaning?

Bio Media Plus is engineered and designed to provide a place for the bacteria to grow and still be protected while it is moving around in the filter chamber. While water and air in your filter chamber cause the bio-media to move around, the “old” or “dead” bacteria along with any solid waste to fall off. This chaotic movement makes the filter media self cleaning. This will also make room for new bacteria to colonize inside the protected wheel.

Features:

· Perfect bio media for DIY in-tank or sump moving bed filters

· 100% PREMIUM QUALITY Virgin Polyethylene.

· The best and most efficient filter media to remove poisonous ammonia and nitrites

· Provides maximum surface area for beneficial bacteria to colonize and grow

· Self Cleaning – never requires cleaning or being replaced

certificated  HDPE mbbr filter media for  sewage



· Project title, the amount of upgrading sewage treatment plant

· New sewage treatment project of MBBR and BAF process

· Biochemical treatment of reclaimed water

· River nitrogen, phosphorus removal

· Aquaculture in removal of ammonia nitrogen, water purification

· Biological filler biological deodorization tower

certificated  HDPE mbbr filter media for  sewagecertificated  HDPE mbbr filter media for  sewagecertificated  HDPE mbbr filter media for  sewage

certificated  HDPE mbbr filter media for  sewage

Package / ship to end user

0.1CBM/woven bag or 1CBM/woven bag;

20ft container can load 30CBM.

40ft container can load 60CBM.

40HC container can load 70CBM.

certificated  HDPE mbbr filter media for  sewage

MBBR BIO FILM-hanging performance feedback from clients

certificated  HDPE mbbr filter media for  sewage



certificated  HDPE mbbr filter media for  sewagecertificated  HDPE mbbr filter media for  sewage



Tongxiang Smallboss Special Plastic Products Ltd who covers an area of 48,600 Square meters and the production workshop Over 52,000 Square meters. a comprehensive high-tec enterprise specializing in friendly products -

l MBBR biological filter Media since 1992.

l Export bio media since 2004.

l Sell more than 90000m3/year.

l Go to more than 35 countries every year.

l Free samples could be offered for checking the quality.
